Cargo Box: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position cargo box on frame rails.
  2. Install bolts attaching cargo box to frame rails and tighten to 27 N.m (20 ft. lbs.).
  3. Engage tail lamp wire connector for main body harness.
  4. Install screws attaching fuel fill neck adaptor to cargo box side wall.

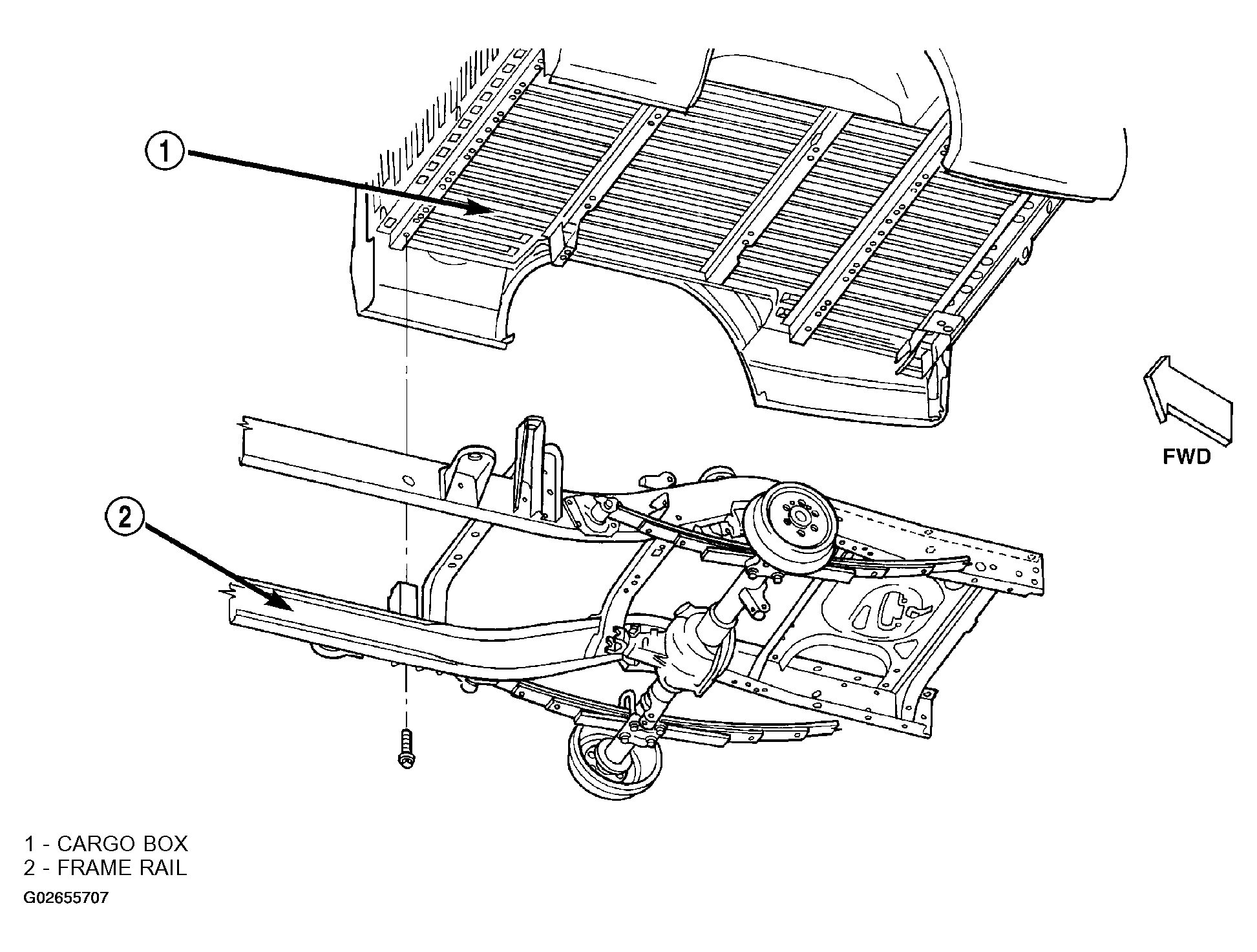

    Fig 1: Removing/Installing Cargo Box
    G02655707Courtesy of DAIMLERCHRYSLER CORP.
