Exterior Handle: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position outside handle in rear door.
  2. Install nuts attaching handle to outer door panel (Fig 1 ).

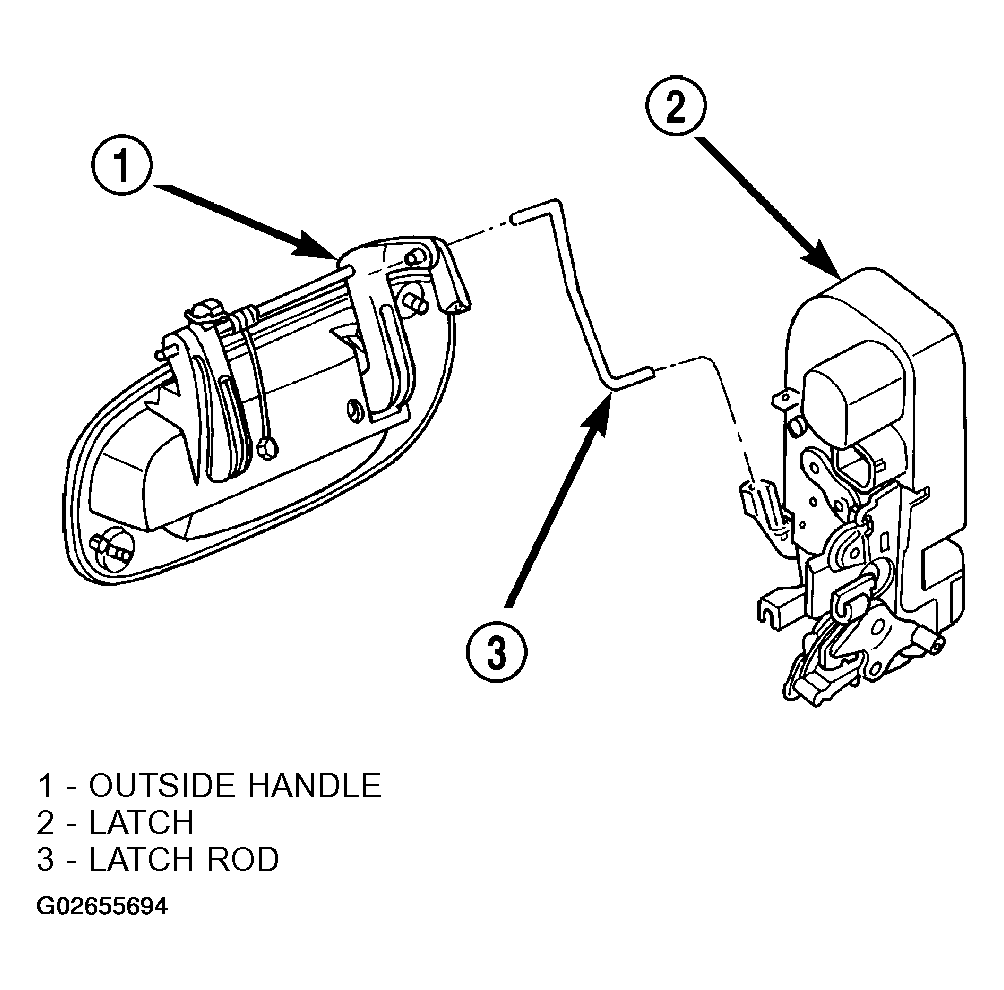

  3. Connect latch rod (Figure ).
  4. Install glass run channel. (Refer to BODY/DOORS-REAR/GLASS RUN CHANNEL-INSTALLATION  )
  5. Reposition the waterdam.
  6. Install trim panel. (Refer to BODY/DOORS-REAR/TRIM PANEL-INSTALLATION  )

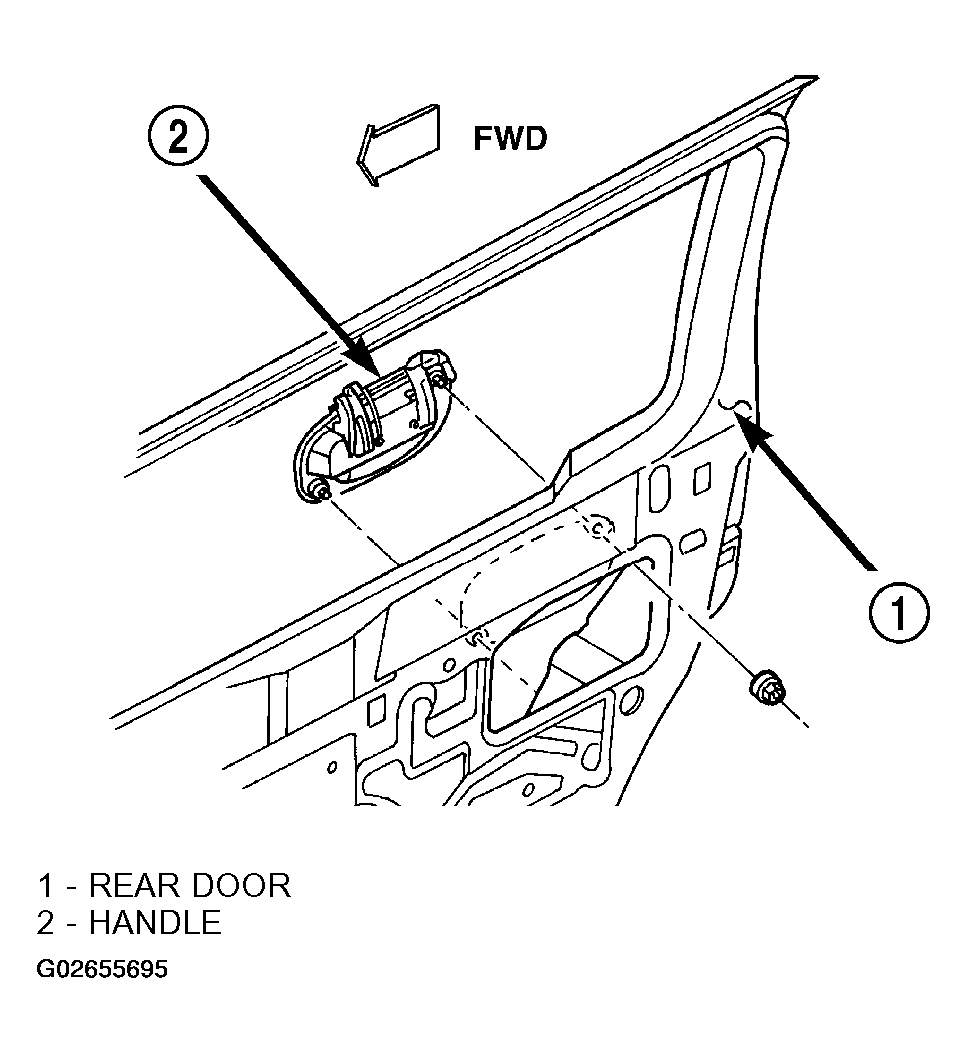

    Fig 1: Installing Rear Door Outside Handle
    G02655695Courtesy of DAIMLERCHRYSLER CORP.
