Trim Panel: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position trim panel at door.
  2. Connect wire connector for window/lock switch panel, if equipped. Engage clips attaching power window/lock switch panel to door trim panel.
  3. Connect power mirror wire connector, if equipped.
  4. Connect speaker harness wire connector.
  5. Connect inside handle linkage rod to inside handle.
  6. Align trim panel retainer steps with inner door panel and slide trim panel into place.
  7. Install screws attaching trim panel to door.
  8. Install window crank, if equipped.

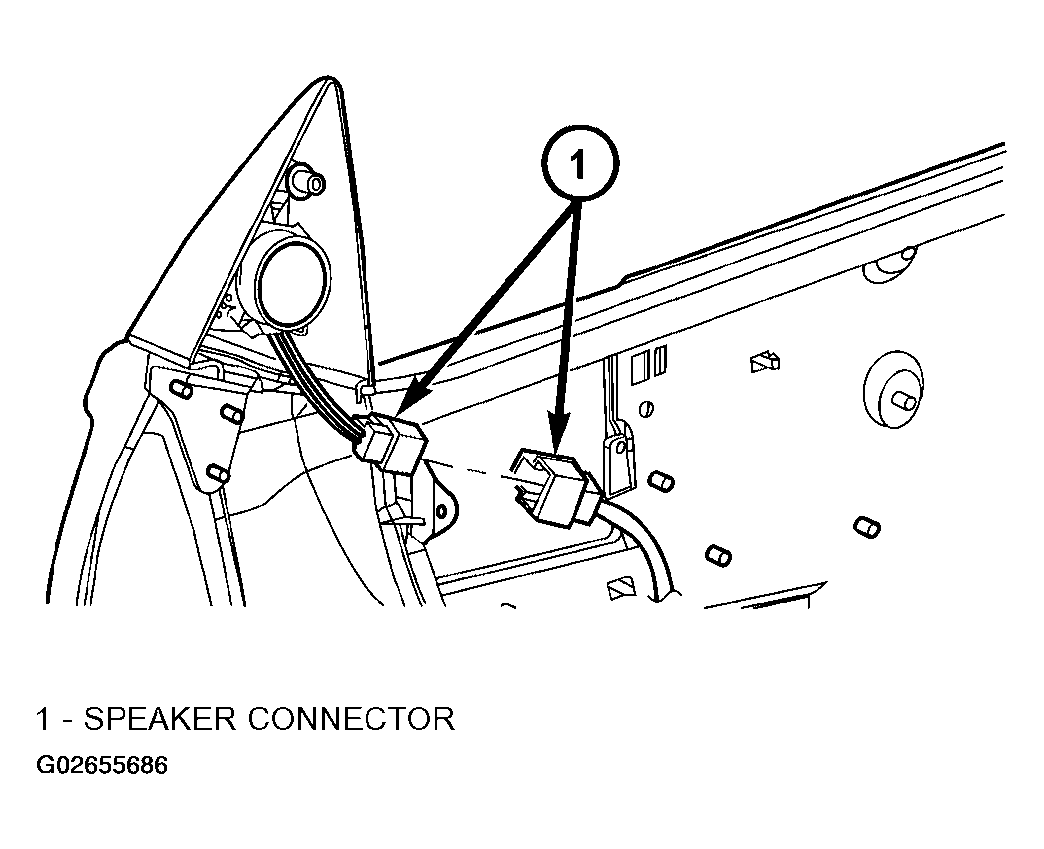

    Fig 1: Disconnecting Speaker And Power Mirror Connector
    G02655686Courtesy of DAIMLERCHRYSLER CORP.
    Fig 2: Disengaging Power Door Lock/Window Connector
    G02655687Courtesy of DAIMLERCHRYSLER CORP.
