Section 61 (Tires & Wheels): Studs: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not use a hammer to remove wheel studs.
  1. Install the new stud into the hub flange.
  2. Install three washers onto the stud, then install lug nut with the flat side of the nut against the washers.
  3. Tighten lug nut until the stud is pulled into the hub flange. Verify that the stud is properly seated into the flange.
  4. Remove lug nut and washers.
  5. Install the brake rotor, caliper adapter, and caliper, (Refer to REMOVAL & INSTALLATION for procedure ).

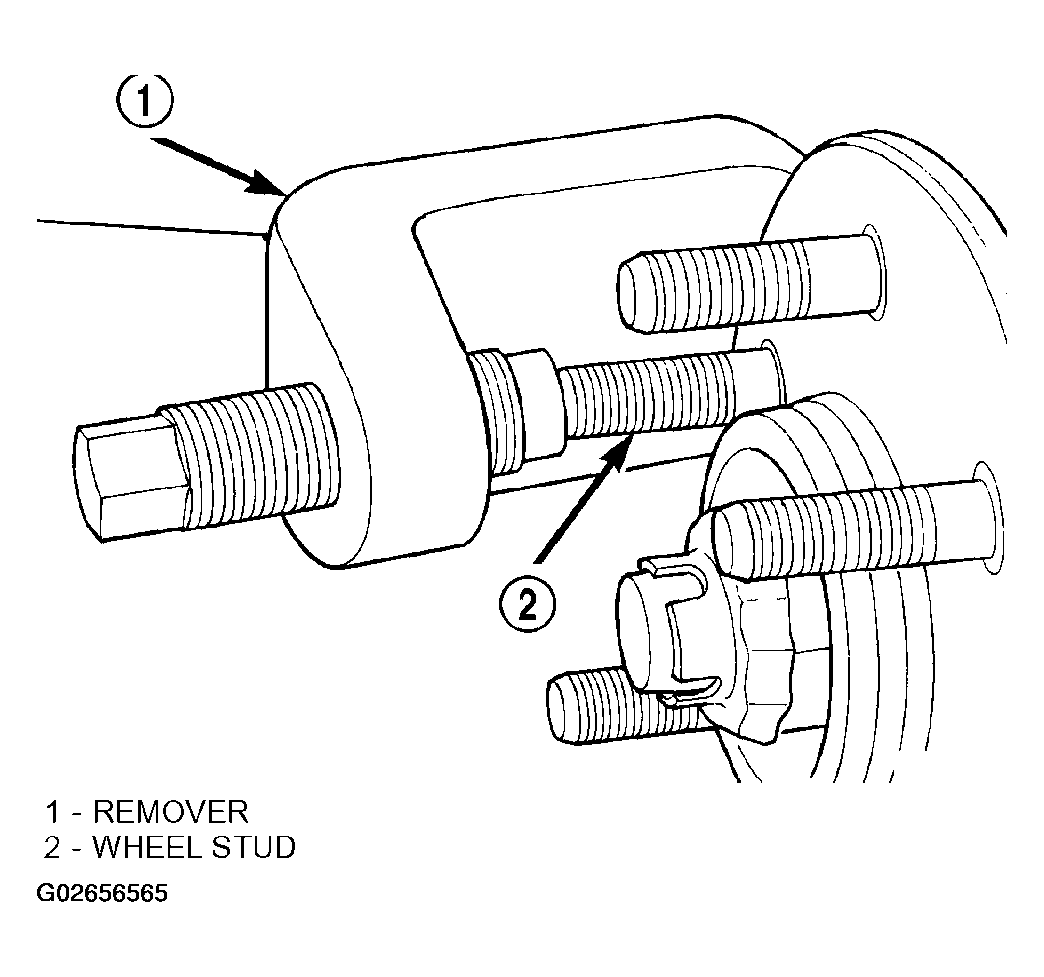

    Fig 1: Removing Stud From Hub With Remover
    G02656565Courtesy of DAIMLERCHRYSLER CORP.
  6. Install the wheel and tire assembly, (Refer to STANDARD PROCEDURE  ) use a new lug nut on the stud or studs that were replaced.
  7. Remove the support and lower vehicle.
