Spare Tire Winch: Removal
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Remove spare tire.

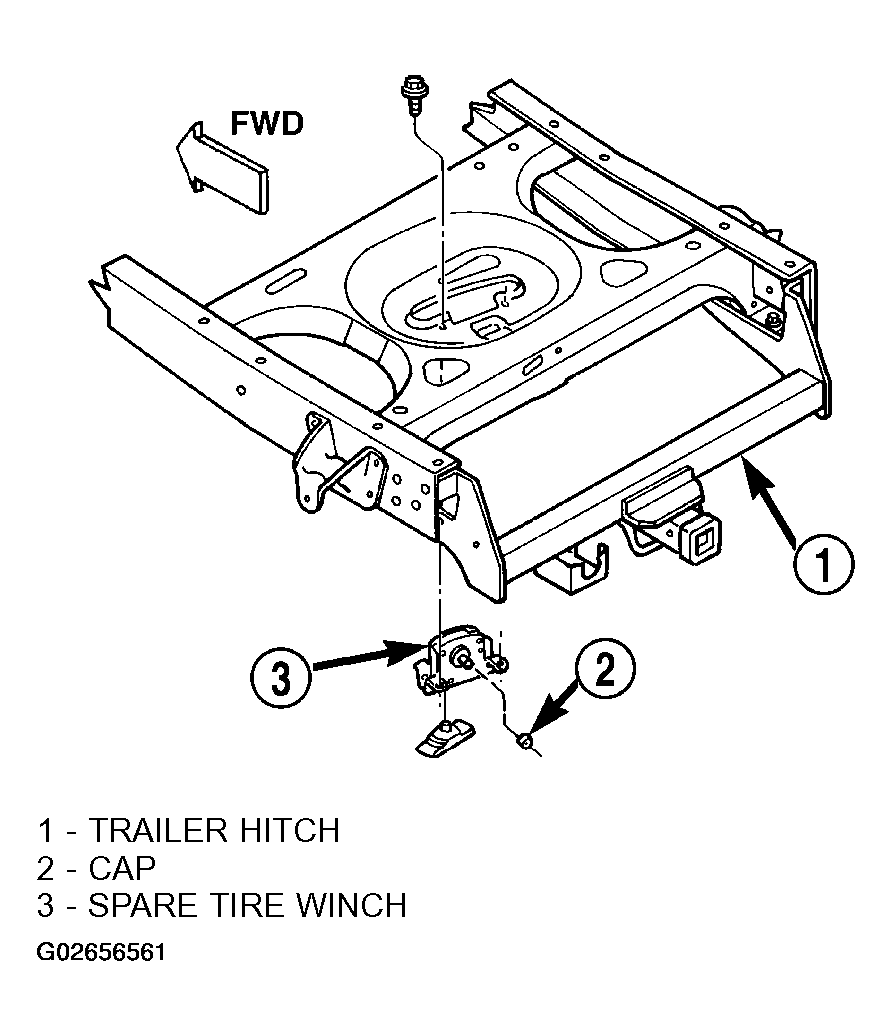

- Remove bolts attaching spare tire winch to crossmember (Fig 1
).

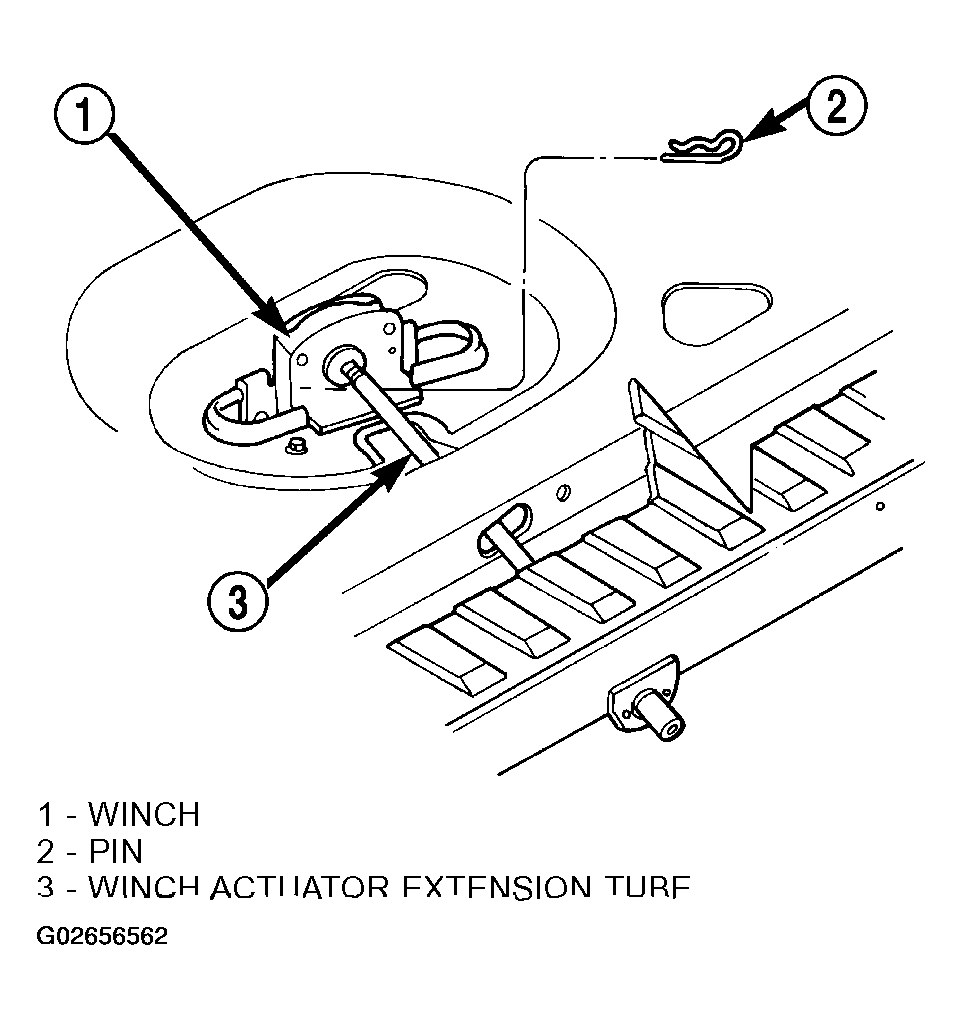

- Disengage clip attaching extension tube to spare tire winch (Fig 2
).
- Separate spare tire winch from vehicle.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
