Valve Body Upper Housing

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Note location of check balls in valve body upper housing (Fig 1). Then remove the one large diameter and the six smaller diameter check balls.

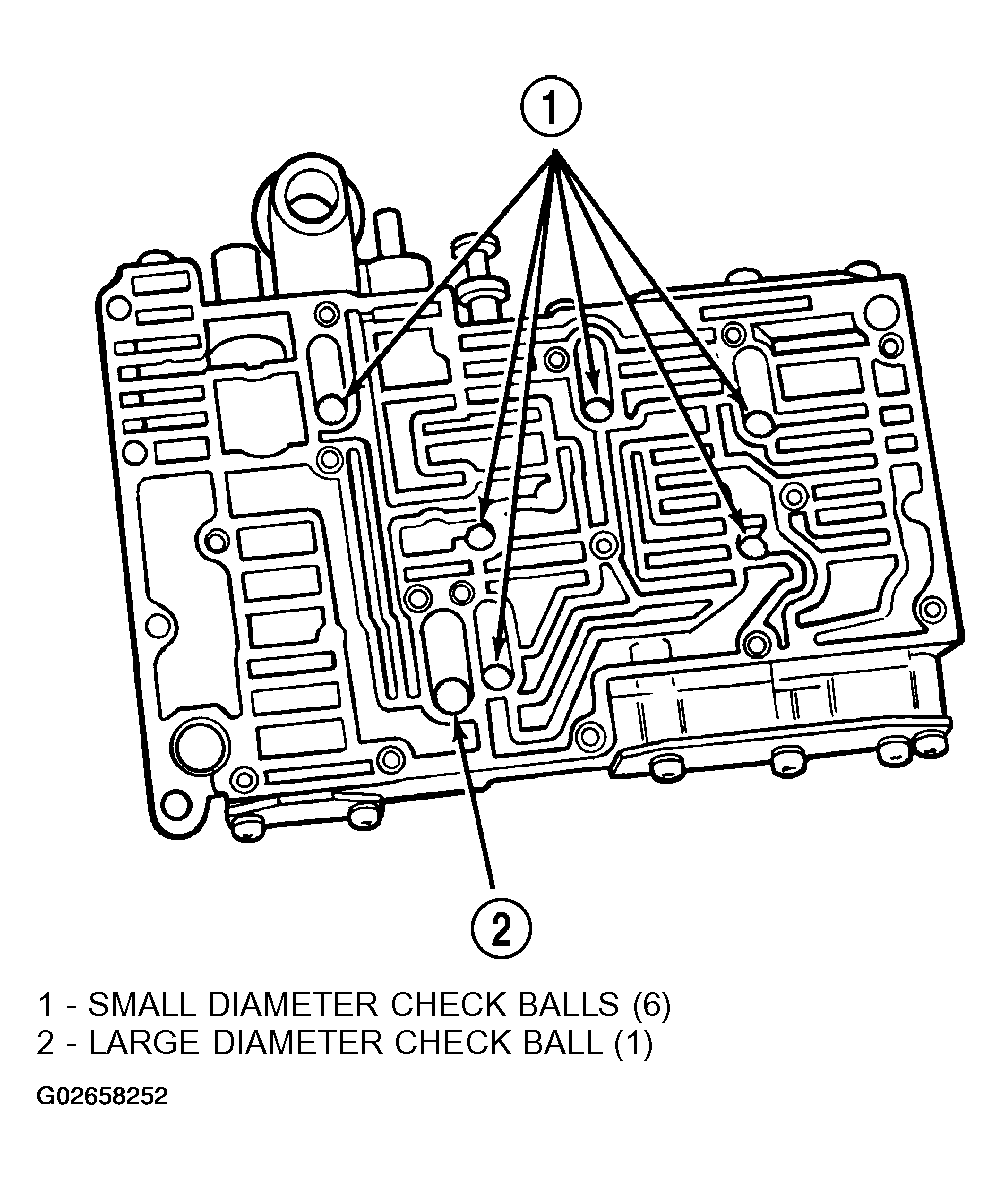

    Fig 1: Locating Check Ball In Upper Housing
    G02658252Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove governor plug and shuttle valve covers (Fig 2).

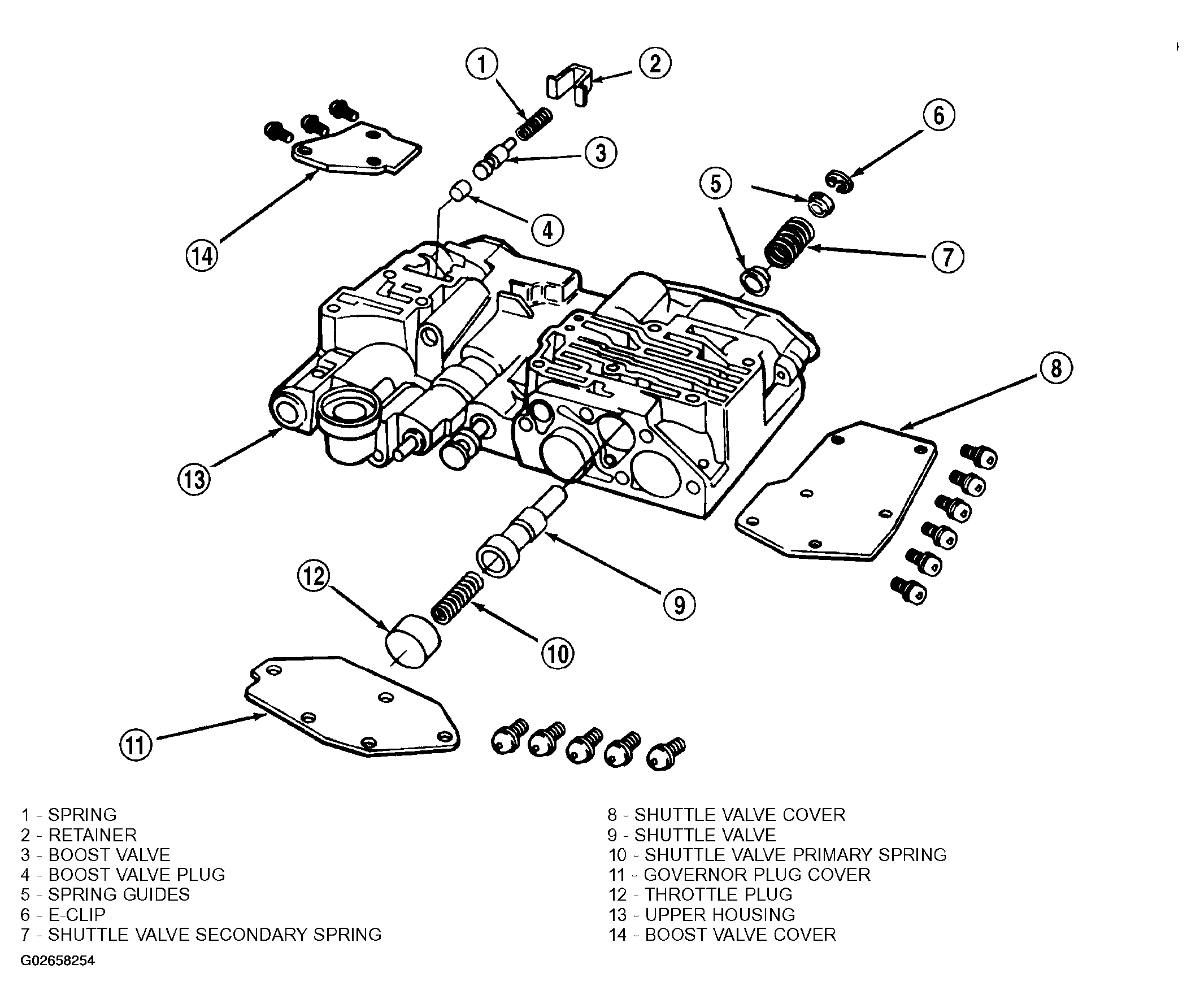

    Fig 2: Removing Throttle Plug, Primary Spring, Shuttle Valve, Secondary Spring, And Spring Guides
    G02658254Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove E-clip that secures shuttle valve secondary spring on valve stem (Fig 3).
    Fig 3: Removing Shuttle Valve E-Clip And Secondary Spring
    G02658253Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove throttle plug, primary spring, shuttle valve, secondary spring, and spring guides (Fig 2).
  5. Remove boost valve retainer, spring and valve if not previously removed.
  6. Remove throttle plug and 1-2 and 2-3 governor plugs (Figure).
  7. Turn upper housing around and remove limit valve and shift valve covers (Fig 4).
    Fig 4: Removing Upper Housing Shift Valve And Pressure Plug
    G02658255Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove limit valve housing. Then remove retainer, spring, limit valve, and 2-3 throttle plug from limit valve housing (Fig 4).
  9. Remove 1-2 shift control valve and spring (Fig 4).
  10. Remove 1-2 shift valve and spring (Fig 4).
  11. Remove 2-3 shift valve and spring from valve body (Fig 4).
  12. Remove pressure plug cover (Fig 4).
  13. Remove line pressure plug, sleeve, throttle pressure plug and spring (Fig 4).
