Valve Body Lower Housing

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove timing valve cover.
  2. Remove 3-4 timing valve and spring.
  3. Remove 3-4 quick fill valve, spring and plug.
  4. Remove 3-4 shift valve and spring.
  5. Remove converter clutch valve, spring and plug (Fig 1).

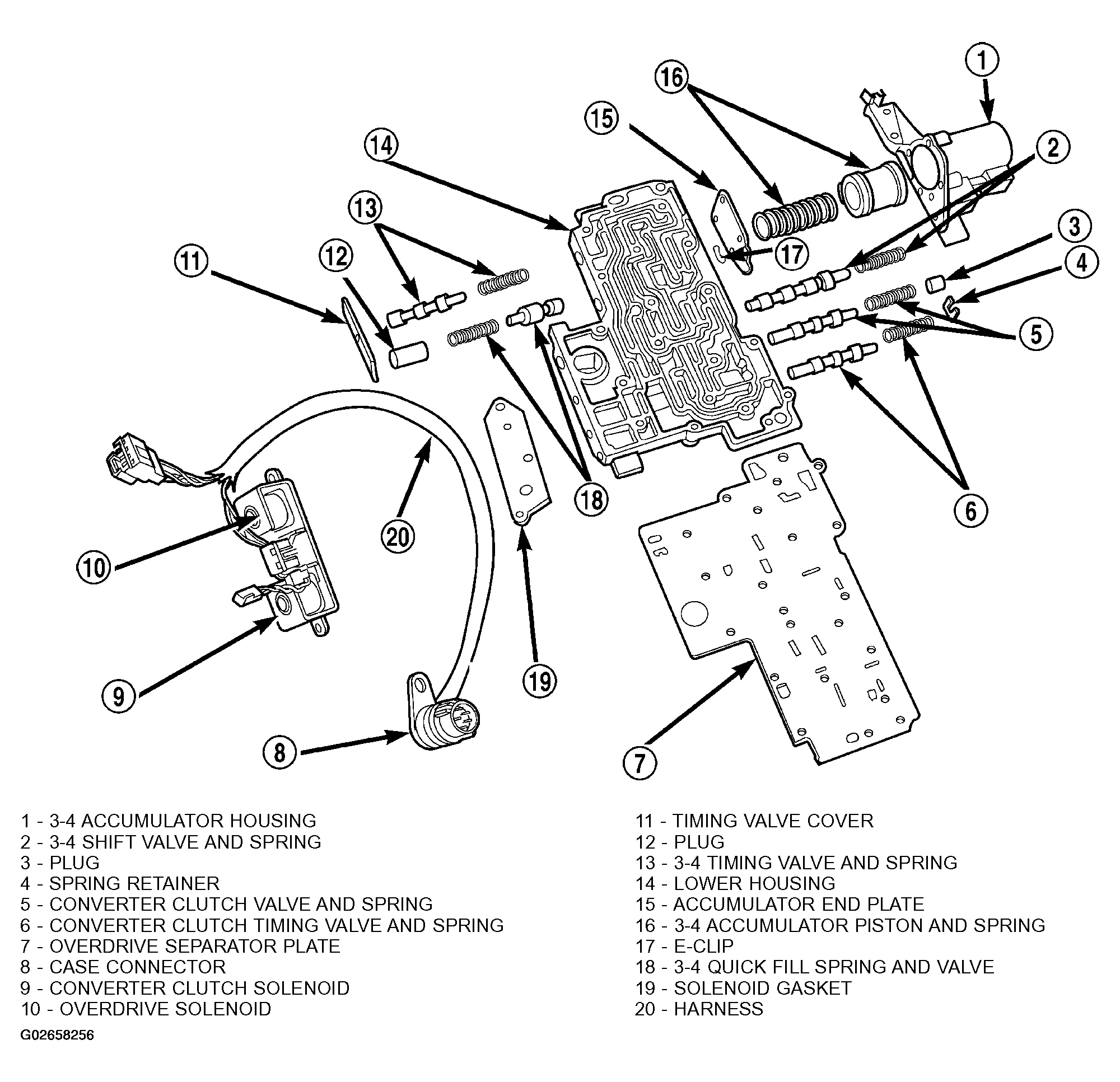

    Fig 1: Lower Housing Shift Valves And Springs
    G02658256Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove converter clutch timing valve, retainer and valve spring.
