Transfer Plate

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Install rear clutch and rear servo check balls in transfer plate (Fig 1).

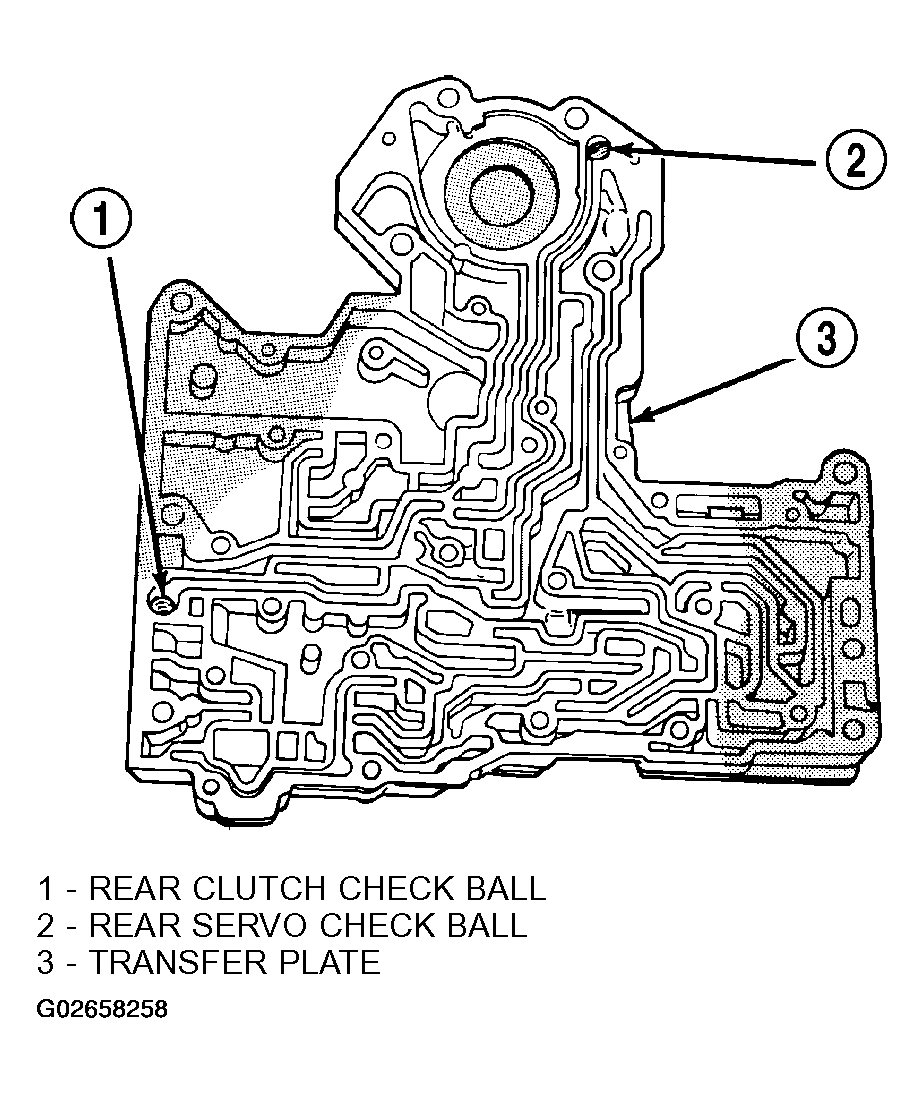

Fig 1: Installing Rear Clutch And Rear Servo Check Ball
Courtesy of DAIMLERCHRYSLER CORP.
Install filter screen in upper housing separator plate (Fig 2).

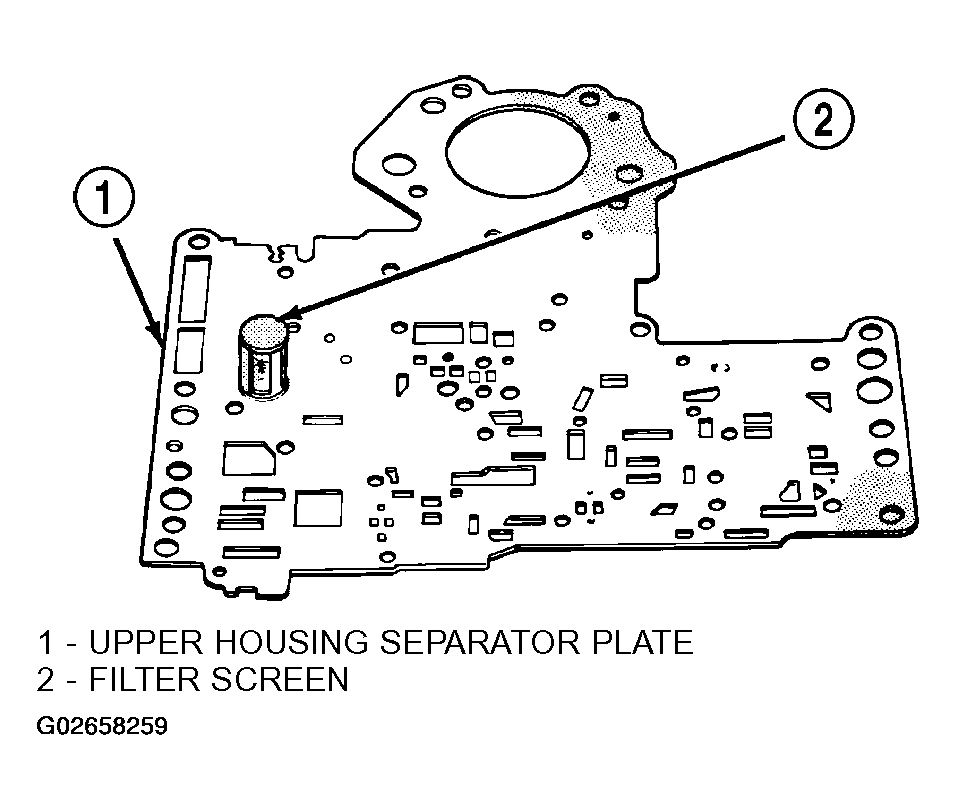

Fig 2: Installing Separator Plate Filter Screen
Courtesy of DAIMLERCHRYSLER CORP.
Align and position upper housing separator plate on transfer plate (Fig 3).

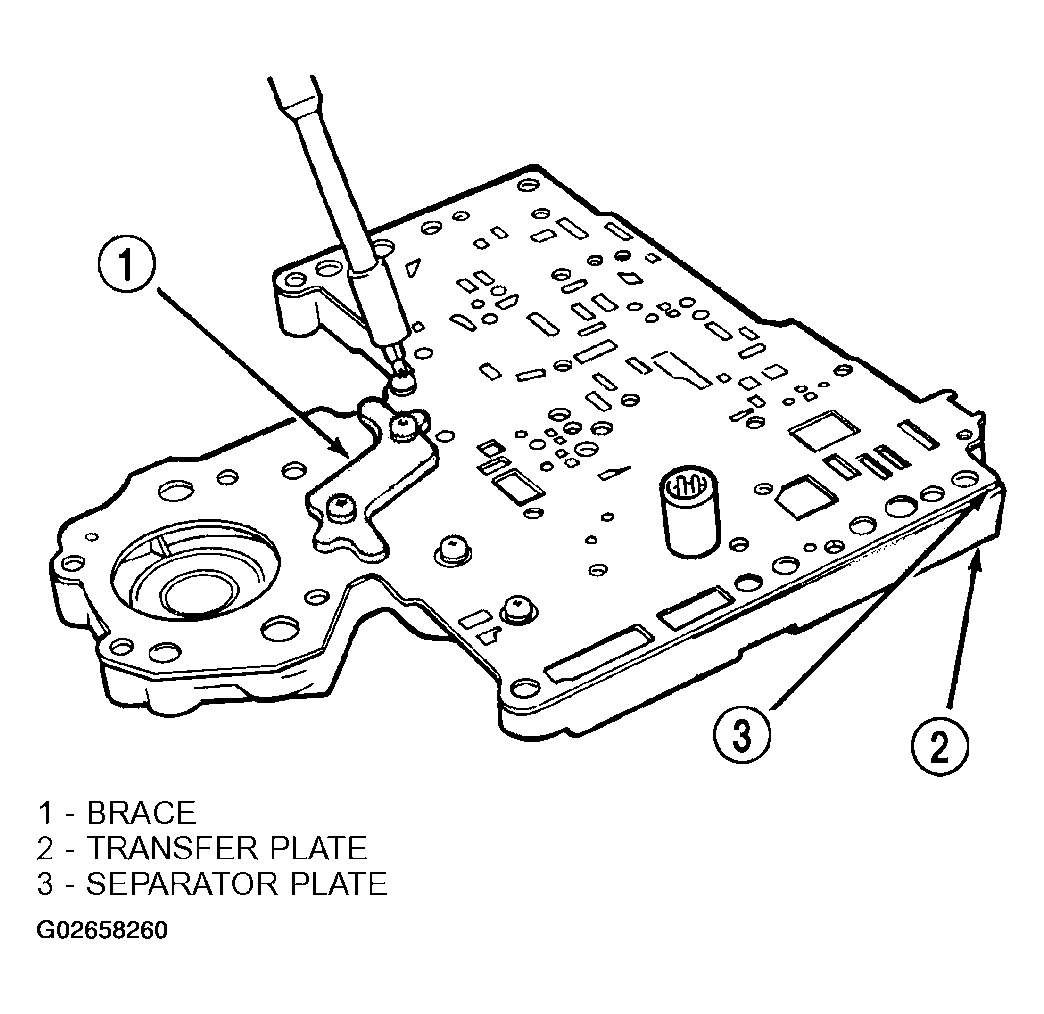

Fig 3: Installing Brace Plate
Courtesy of DAIMLERCHRYSLER CORP.
Install brace plate (Fig 3). Tighten brace attaching screws to 4 N.m (35 in. lbs.) torque.
Install remaining separator plate attaching screws. Tighten screws to 4 N.m (35 in. lbs.) torque.
