Boost Valve Tube And Brace

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Position valve body assembly so lower housing is facing upward (Fig 1).

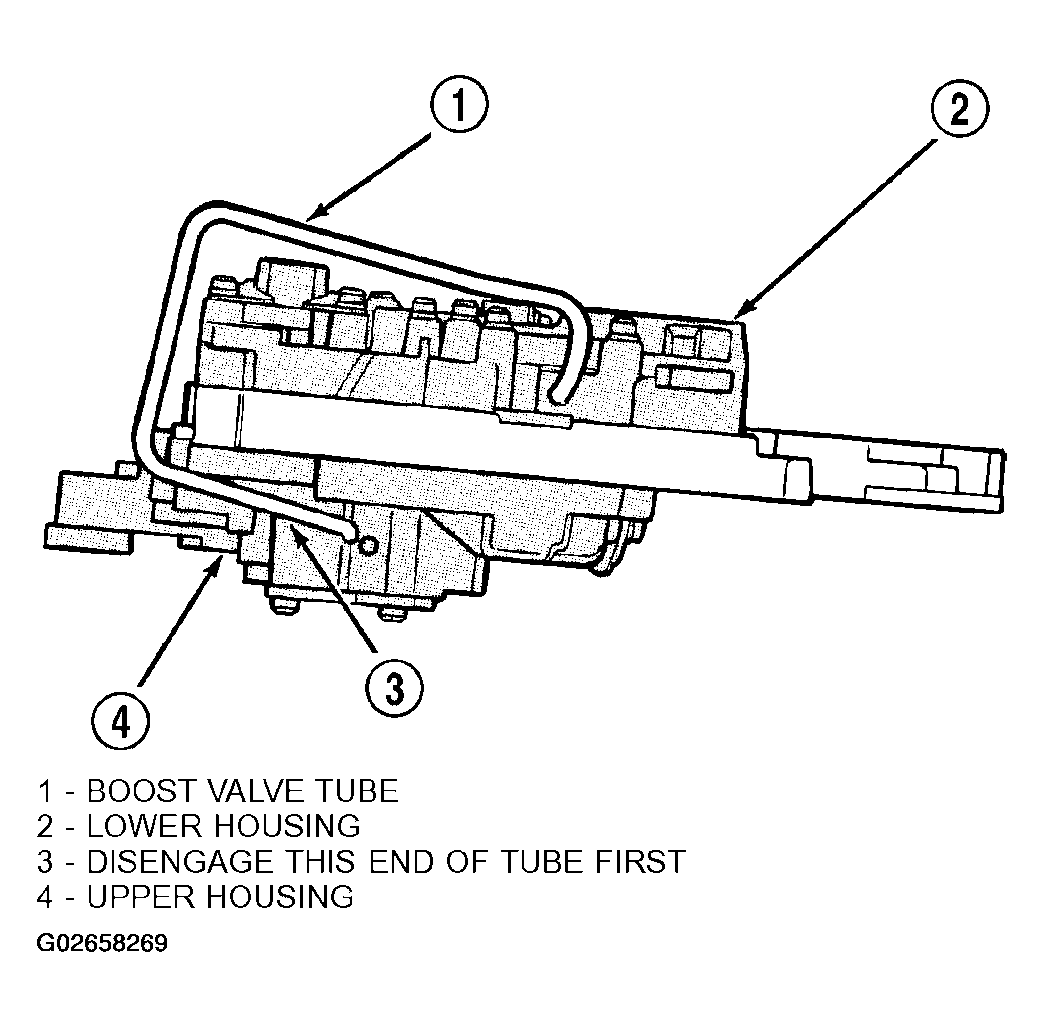

Fig 1: Installing Boost Valve Tube
Courtesy of DAIMLERCHRYSLER CORP.
Lubricate tube ends and housing ports with transmission fluid or petroleum jelly.
Start tube in lower housing port first. Then swing tube downward and work opposite end of tube into upper housing port (Fig 1).
Insert and seat each end of tube in housings.

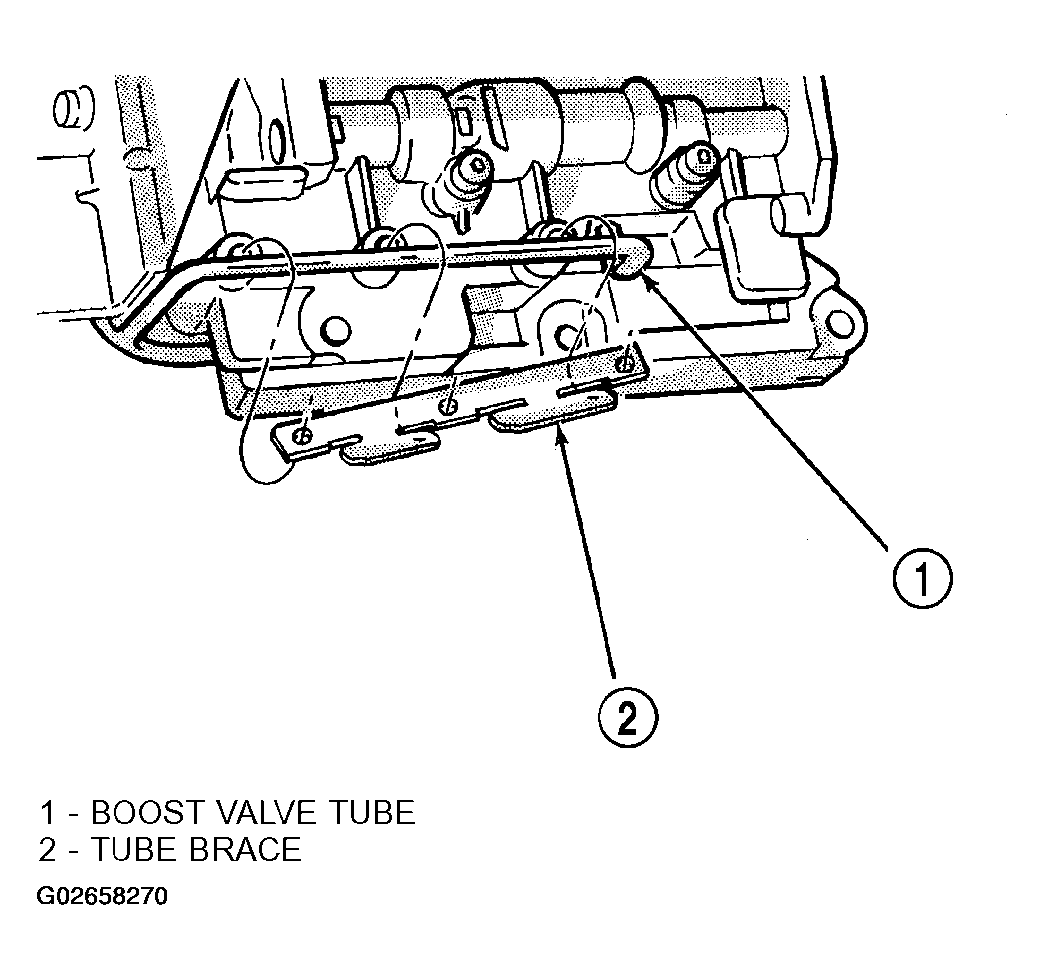

Slide tube brace under tube and into alignment with valve body screw holes (Fig 2).

Fig 2: Installing Boost Valve Tube And Brace
Courtesy of DAIMLERCHRYSLER CORP.
Install and finger tighten three screws that secure tube brace to valve body housings (Fig 2).
Bend tube brace tabs up and against tube to hold it in position (Fig 3).

Fig 3: Securing Boost Valve Tube With Brace Tabs
Courtesy of DAIMLERCHRYSLER CORP.
Tighten all valve body housing screws to 4 N.m (35 in. lbs.) torque after tube and brace are installed. Tighten screws in diagonal pattern starting at center and working outward.
