Transmission Range Sensor: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise vehicle and position drain pan under the transmission range sensor (TRS).
  2. Move the transmission manual lever to the manual LOW position. The manual LOW position is with the manual lever in the forward-most detent.
  3. Disengage the wiring connector from the TRS.
  4. Remove the two screws holding the TRS to the TRS mounting bracket.
  5. Remove the TRS (Fig 1) from the TRS mounting bracket by pulling it straight out of the bracket.
    Fig 1: Removing Transmission Range Sensor
    G02658195Courtesy of DAIMLERCHRYSLER CORP.
  6. Loosen the TRS mounting bracket in the transmission case using Adapter 8581 (Fig 2).

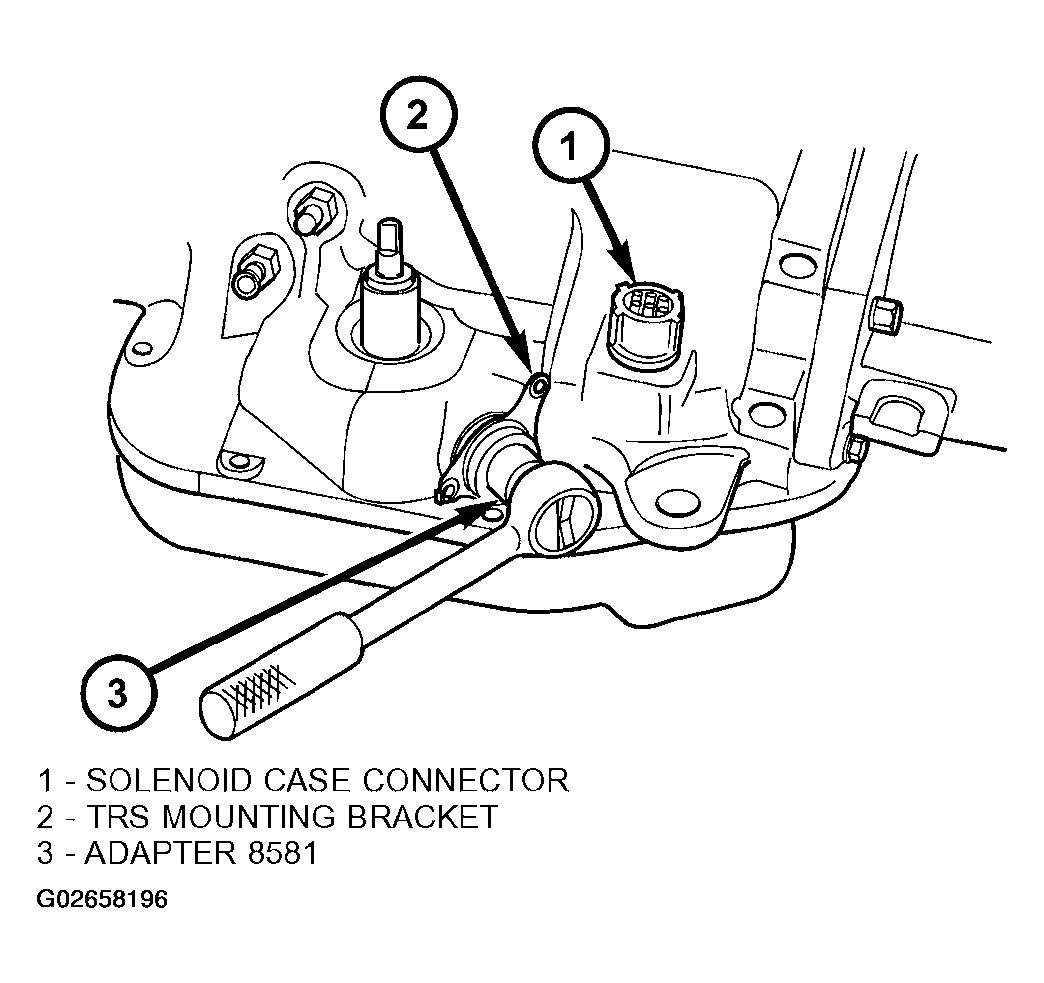

    Fig 2: Loosening Transmission Range Sensor Mounting Bracket
    G02658196Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove the TRS mounting bracket (Fig 3) from the transmission case.
    Fig 3: Removing Transmission Range Sensor Mounting Bracket
    G02658197Courtesy of DAIMLERCHRYSLER CORP.
