Transmission Range Sensor: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the transmission manual shaft lever to the manual LOW position.
  2. Install the TRS mounting bracket into the transmission case. Using Adapter 8581 (Fig 1), tighten the mounting bracket to 34 N.m (300 in.lbs.).

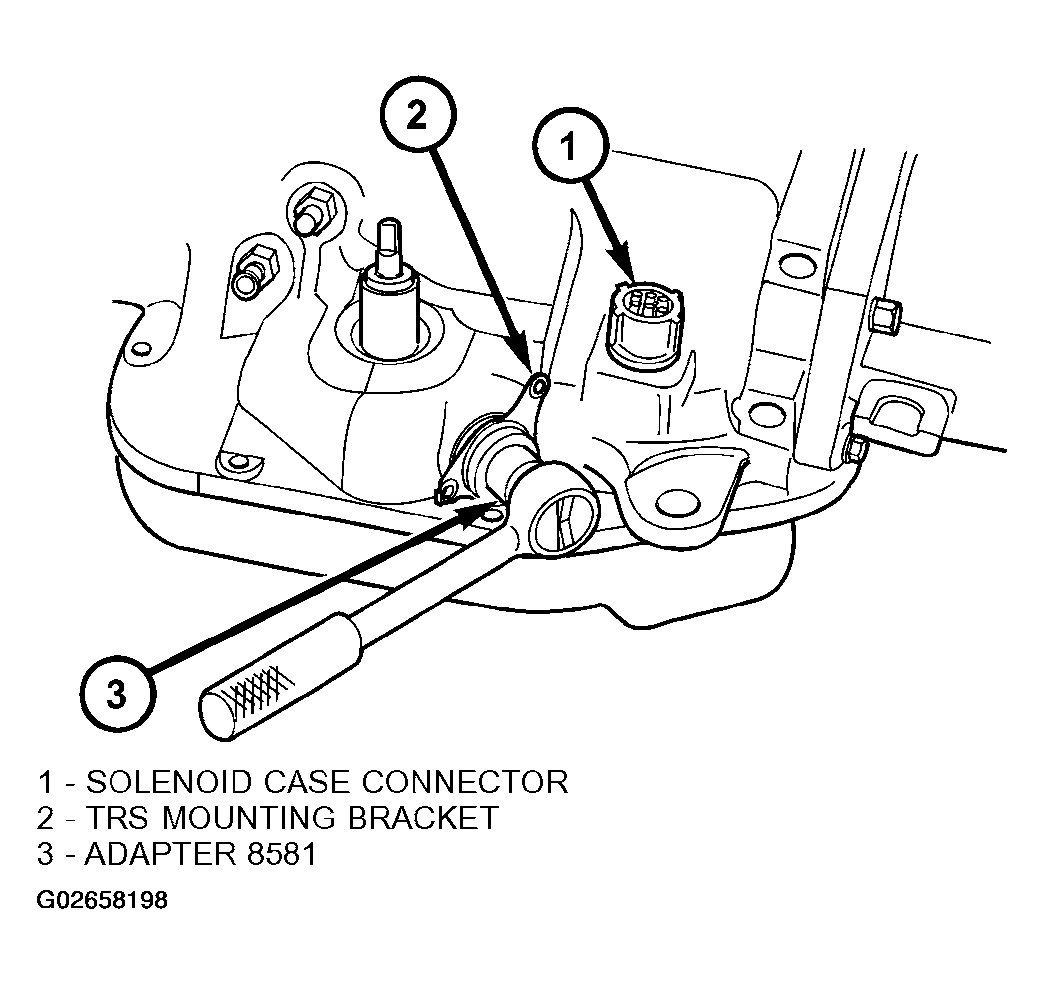

    Fig 1: Tightening Transmission Range Sensor Mounting Bracket
    G02658198Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the TRS (Fig 2) into the mounting bracket with the wiring connector facing the front of the transmission.

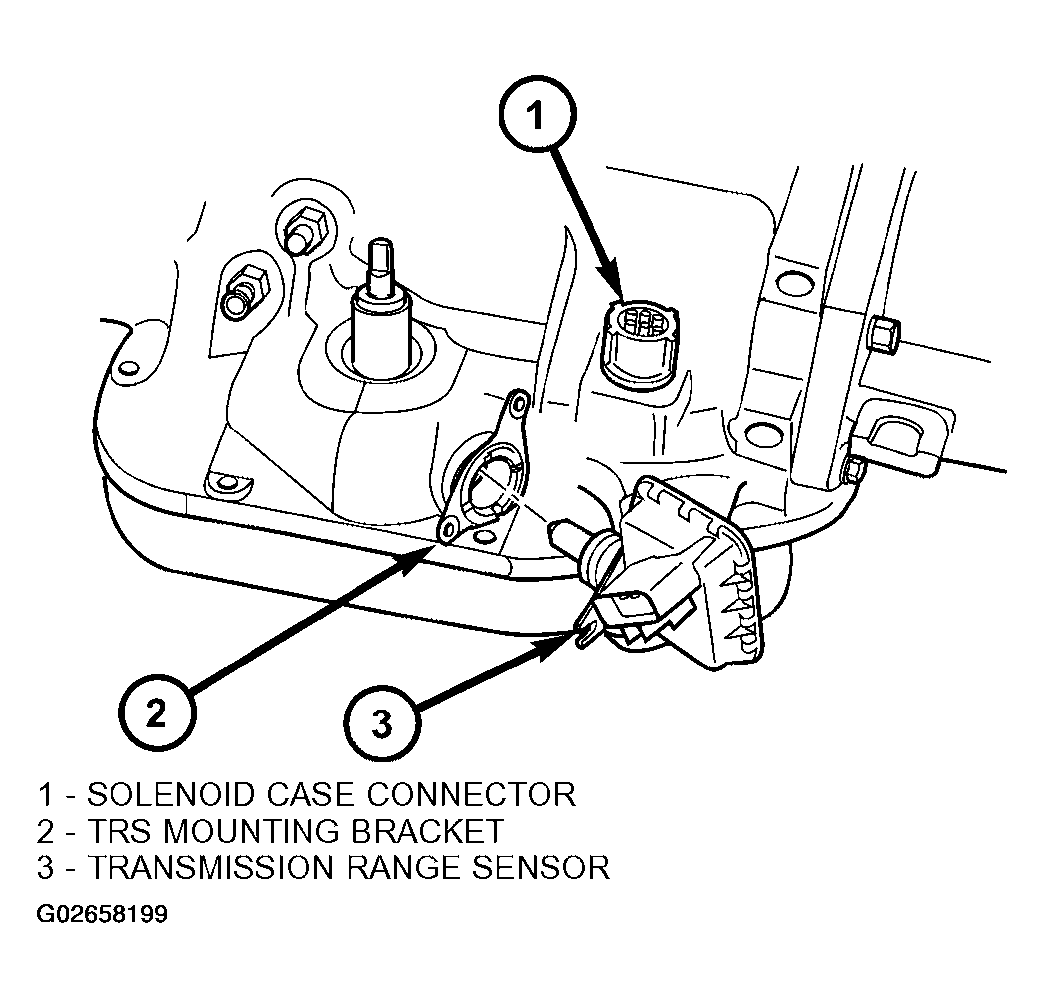

    Fig 2: Removing Transmission Range Sensor
    G02658199Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the two screws to hold the TRS to the mounting bracket. Tighten the screws to 3.4 N.m (30 in.lbs.).
  5. Verify proper sensor operation (Fig 3).

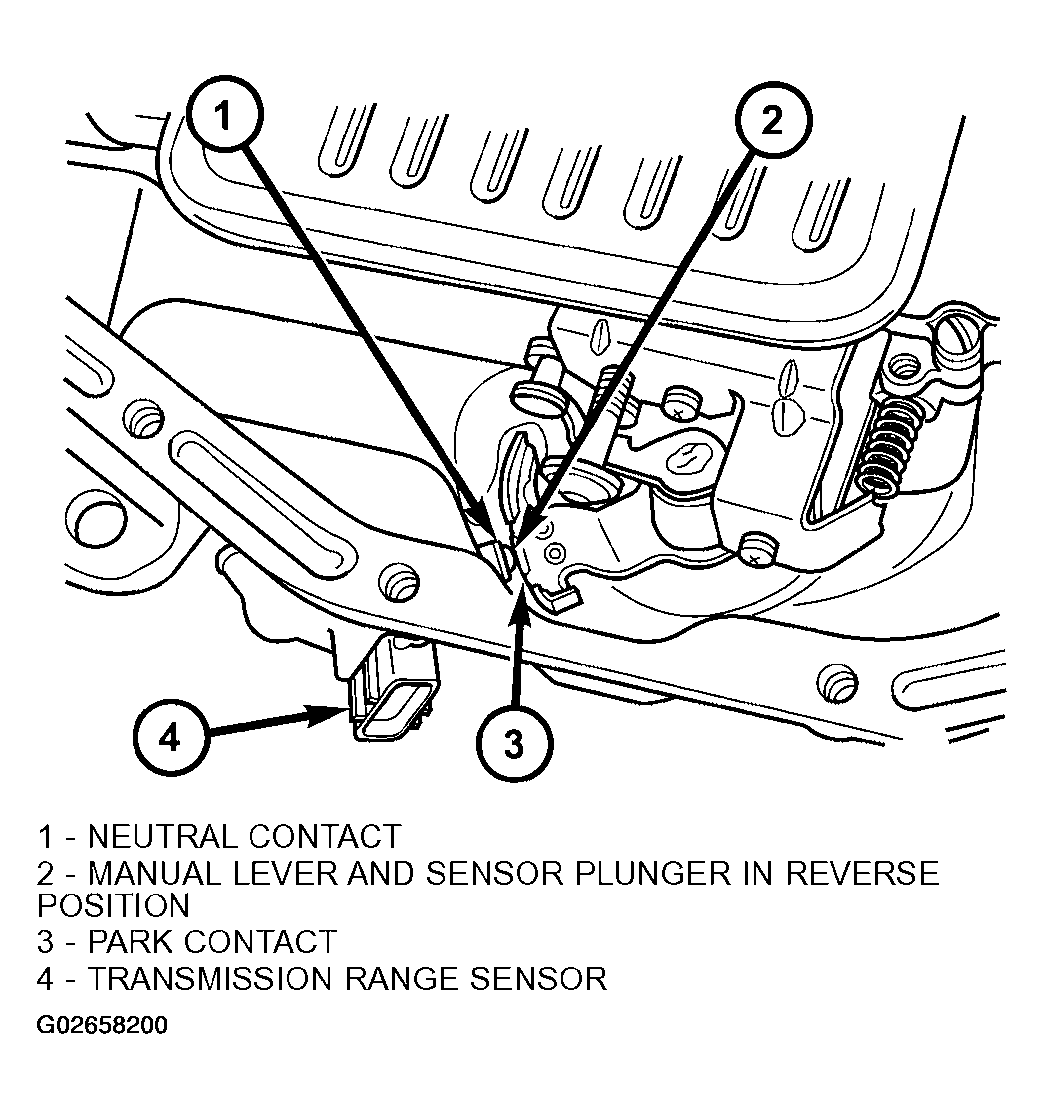

    Fig 3: Checking Transmission Range Sensor Operation
    G02658200Courtesy of DAIMLERCHRYSLER CORP.
  6. Move the transmission manual shaft lever to the PARK position.
  7. Connect TRS wiring connector to the TRS and lower vehicle.
  8. Refill the transmission fluid to the correct level.
