Rear Servo: Disassembly

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove small snap-ring and remove plug and spring from servo piston (Fig 1).

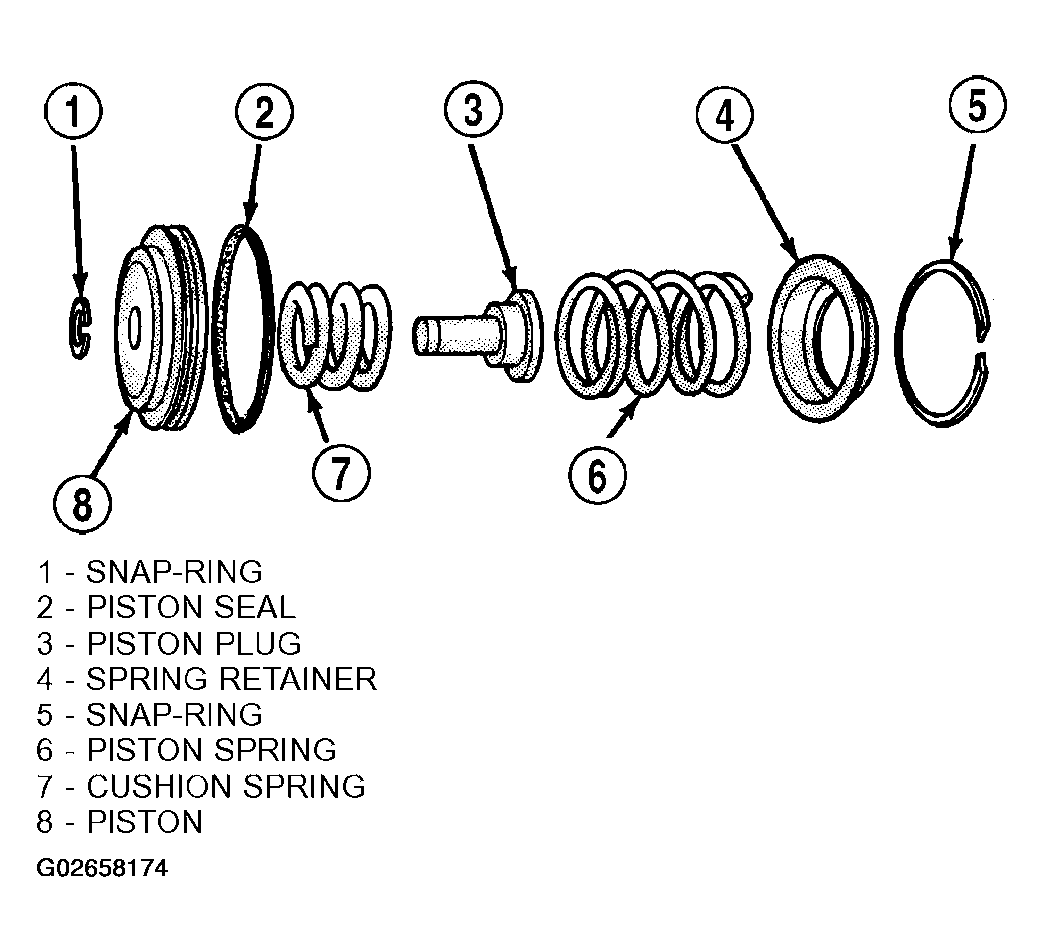

    Fig 1: Exploded View Of Rear Servo Components
    G02658174Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove and discard servo piston seal ring.
