Rear Servo: Assembly

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate piston and guide seals (Fig 1) with petroleum jelly. Lubricate other servo parts with Mopar® ATF +4, Automatic Transmission fluid.

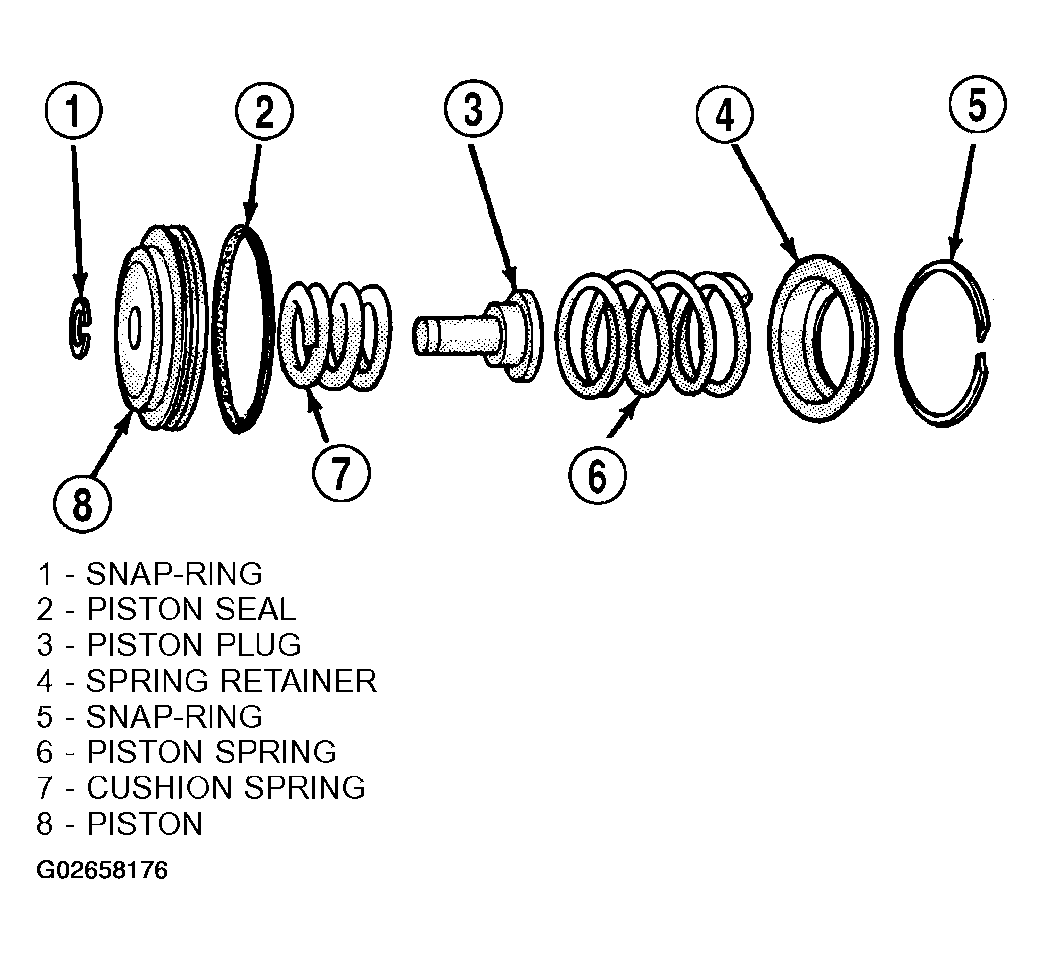

    Fig 1: Exploded View Of Rear Servo Components
    G02658176Courtesy of DAIMLERCHRYSLER CORP.
  2. Install new seal ring on servo piston.
  3. Assemble piston, plug, spring and new snapring.
  4. Lubricate piston seal lip with petroleum jelly.
