Planetary GEARTRAIN/ Output Shaft: Disassembly

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

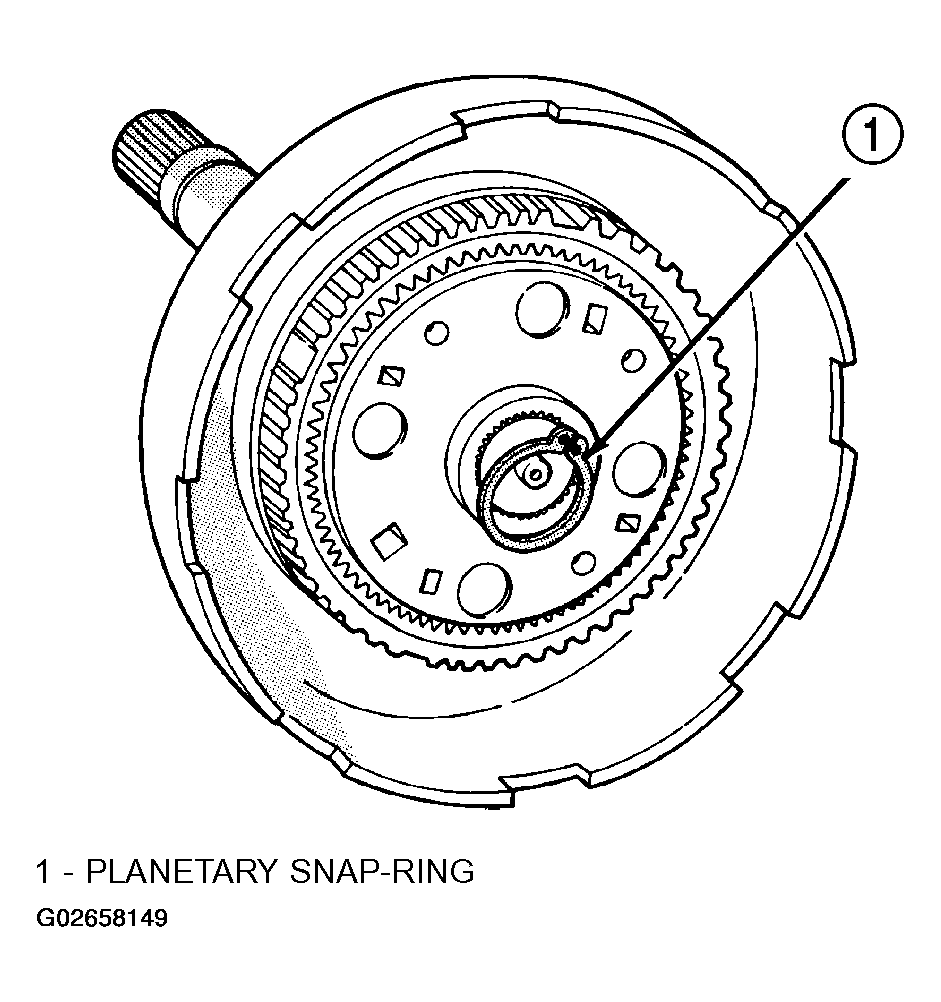

Remove planetary snap-ring from intermediate shaft (Fig 1). Discard snap-ring as it is not reusable.

Fig 1: Removing Planetary Snap-Ring
Courtesy of DAIMLERCHRYSLER CORP.

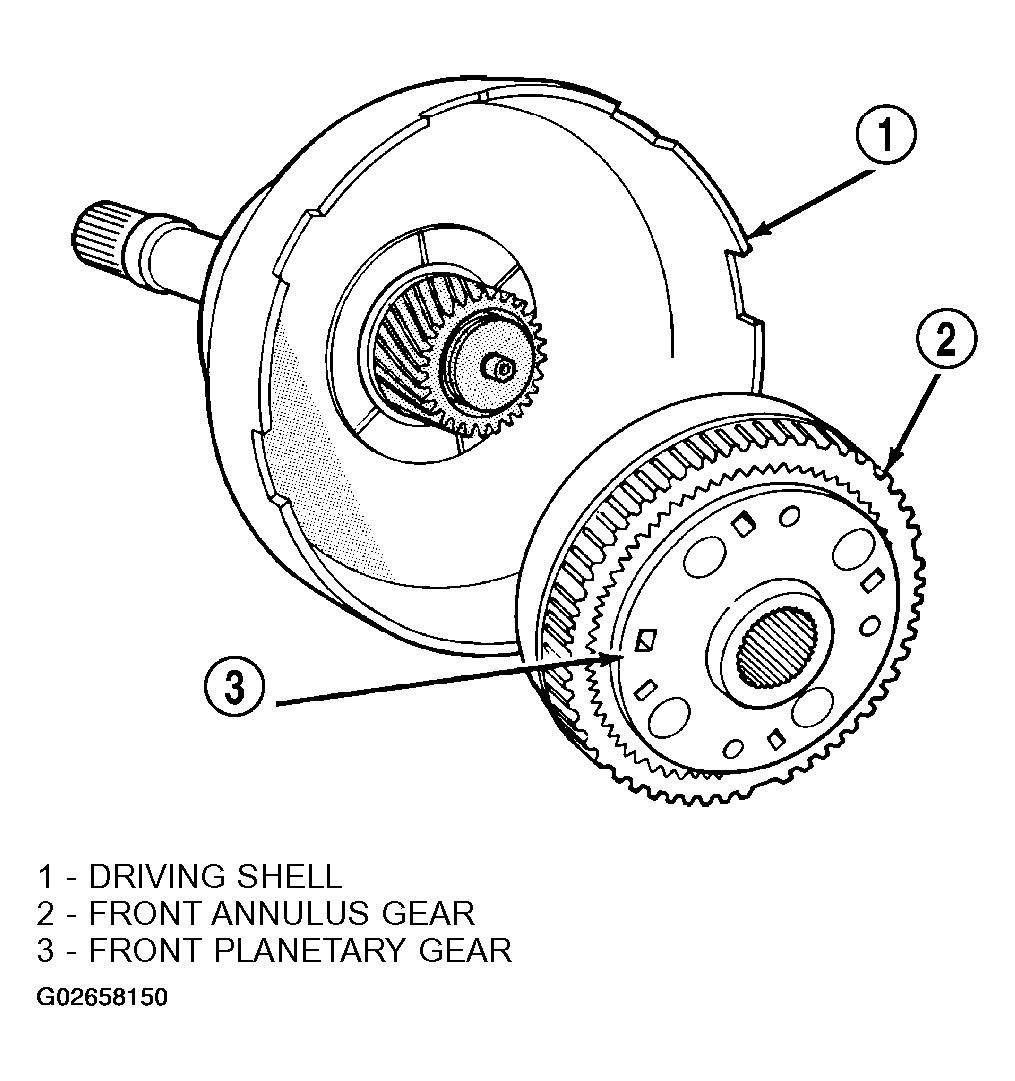

Remove front planetary gear and front annulus gear as assembly (Fig 2).

Fig 2: Removing Front Planetary And Annulus Gears
Courtesy of DAIMLERCHRYSLER CORP.

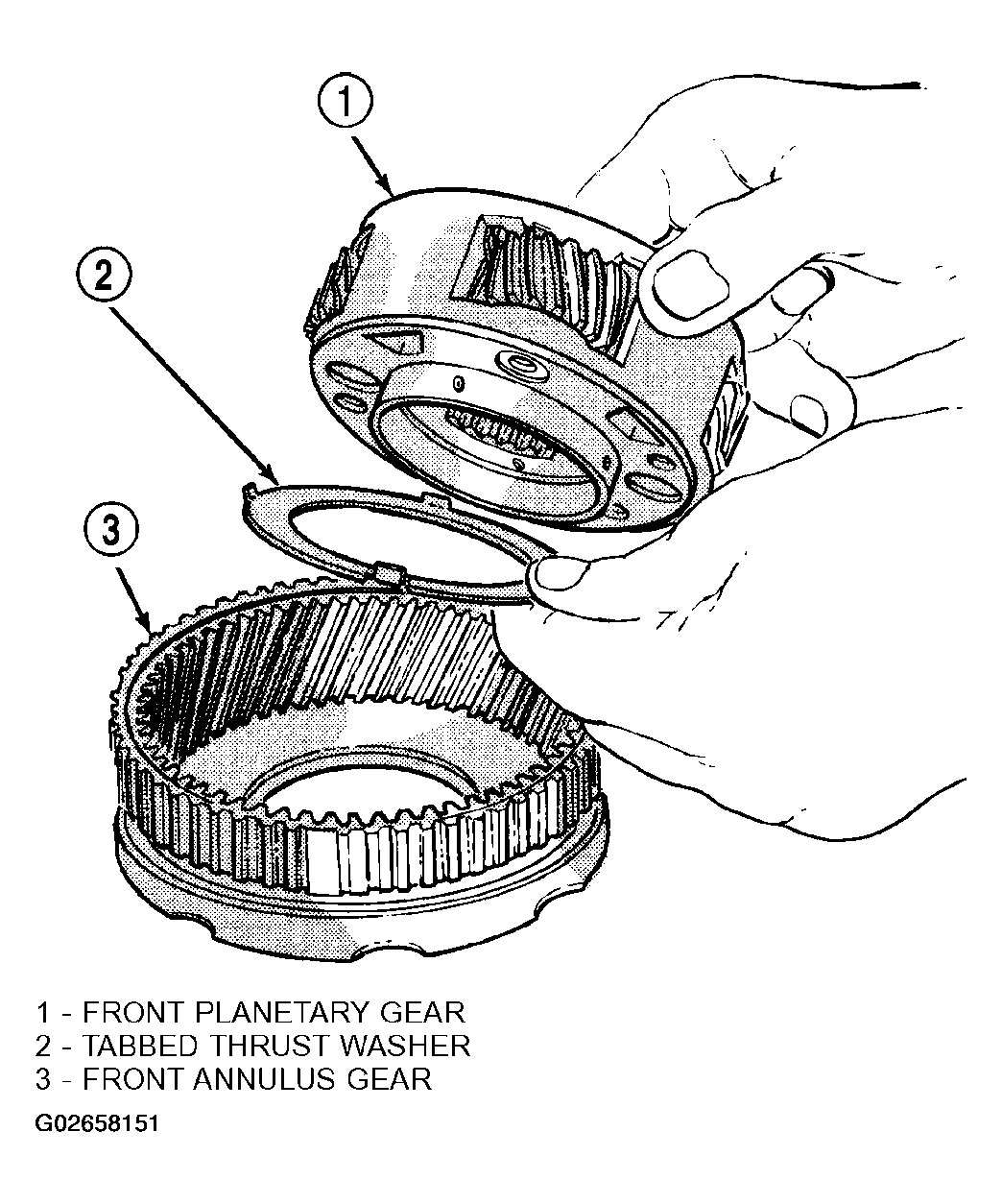

Remove front planetary gear and thrust washer from front annulus gear (Fig 3). Note thrust washer position for assembly reference.

Fig 3: Disassembling Front Planetary And Annulus Gears
Courtesy of DAIMLERCHRYSLER CORP.

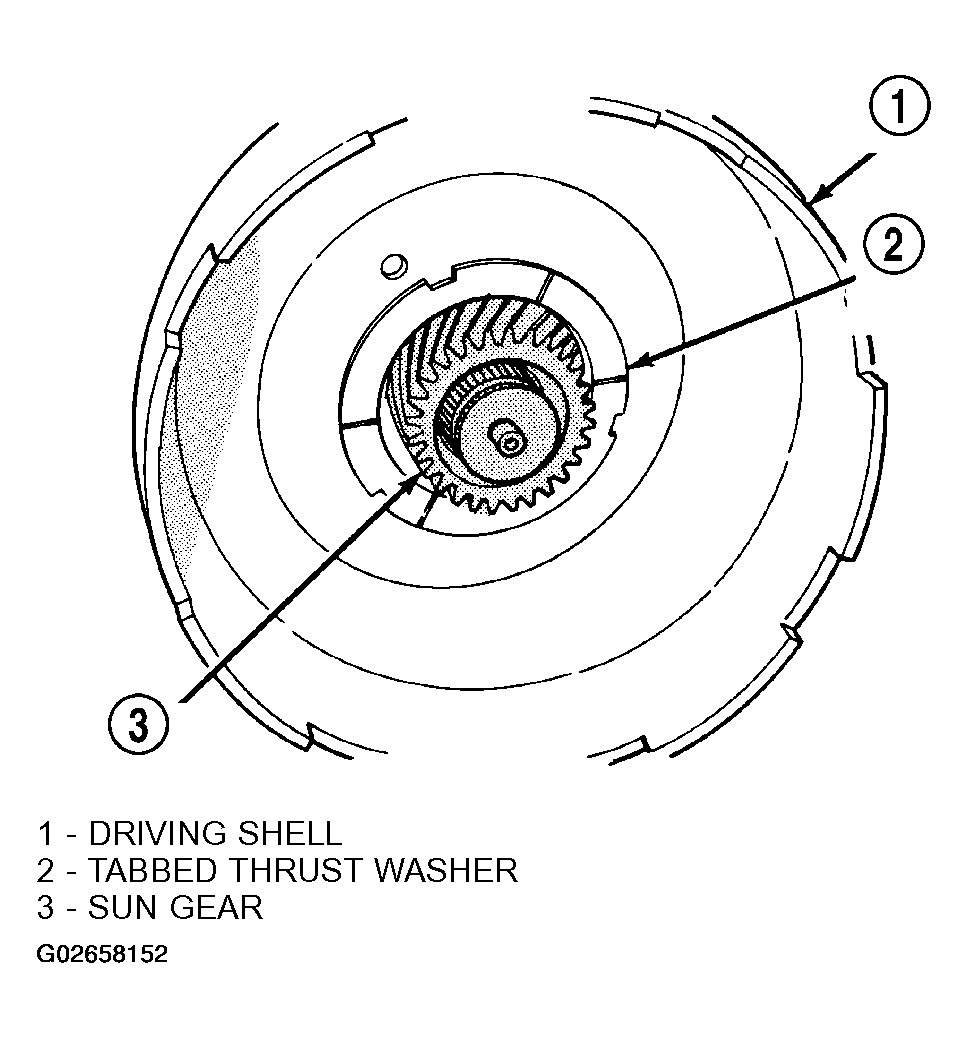

Remove tabbed thrust washer from driving shell (Fig 4). Note washer position for assembly reference.

Fig 4: Removing Driving Shell Thrust Washer
Courtesy of DAIMLERCHRYSLER CORP.

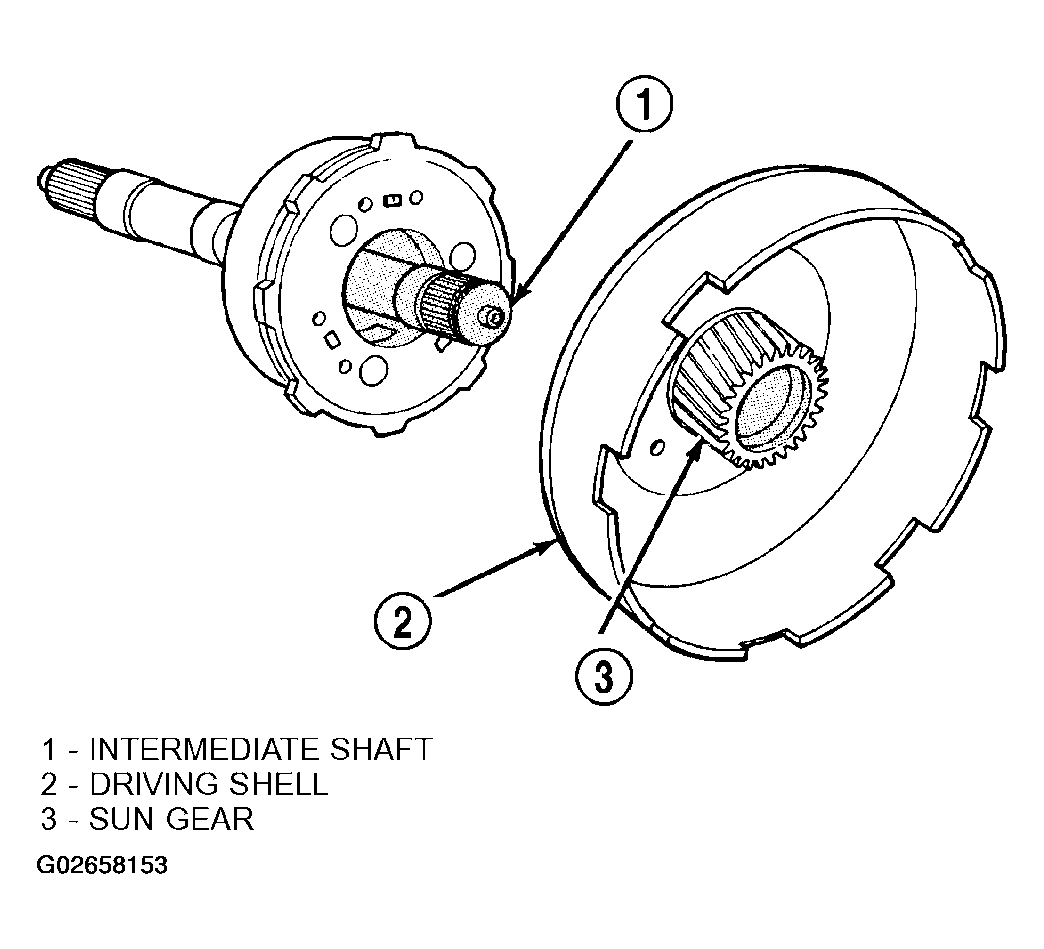

Remove sun gear and driving shell as assembly (Fig 5).

Fig 5: Removing Sun Gear And Driving Shell
Courtesy of DAIMLERCHRYSLER CORP.

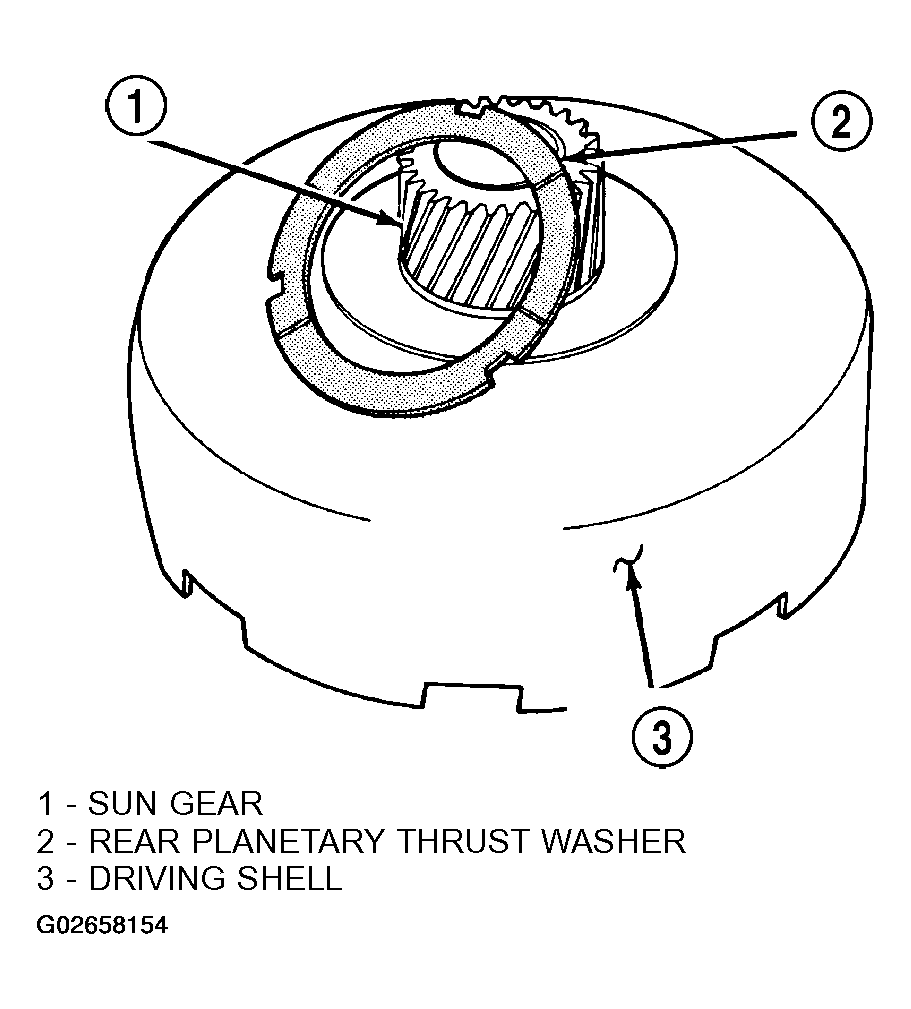

Remove tabbed thrust washer from rear planetary gear (Fig 6). Note washer position on gear for assembly reference.

Fig 6: Removing Rear Planetary Thrust Washer
Courtesy of DAIMLERCHRYSLER CORP.

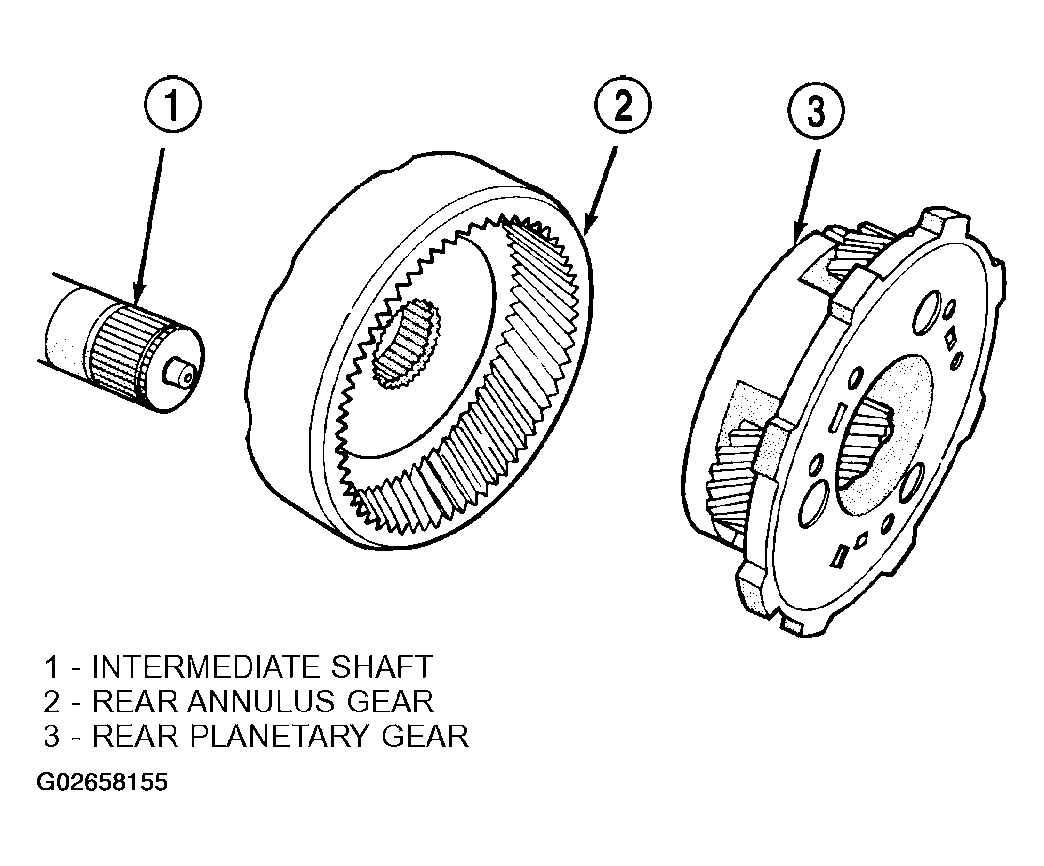

Remove rear planetary gear and rear annulus gear from intermediate shaft (Fig 7).

Fig 7: Removing Rear Planetary And Annulus Gear
Courtesy of DAIMLERCHRYSLER CORP.

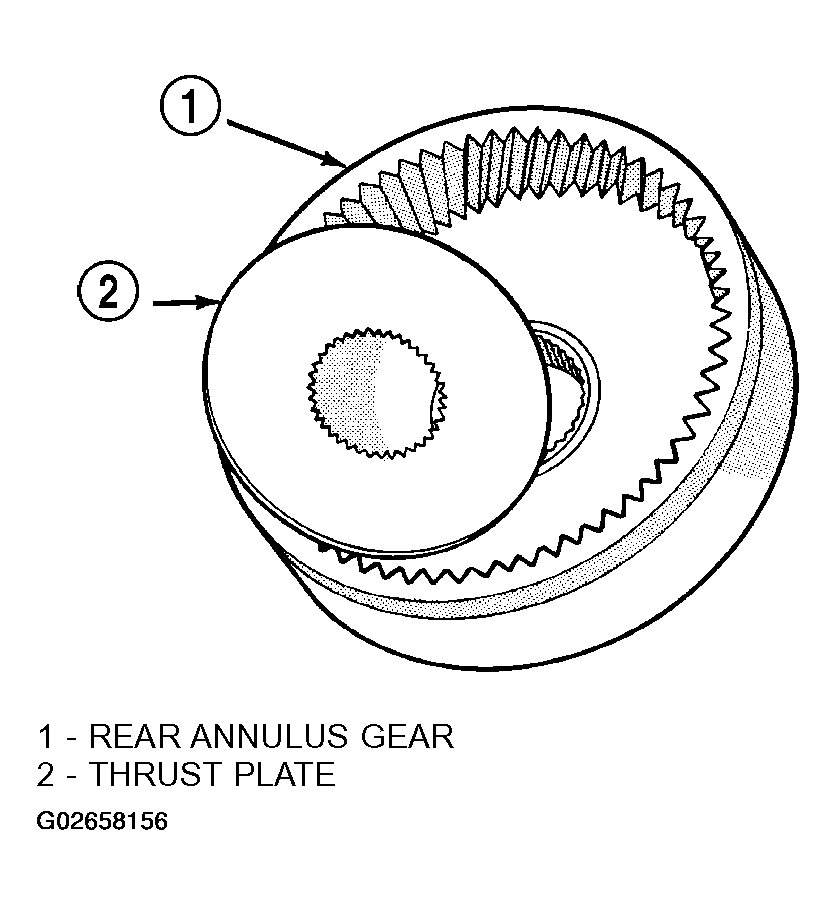

Remove thrust plate from rear annulus gear (Fig 8).

Fig 8: Removing Rear Annulus Thrust Plate
Courtesy of DAIMLERCHRYSLER CORP.
