Section 60 (Overhaul - 46RE Automatic Transmission): Pistons: Operation: Pressure

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Pressure (Fig 1) is nothing more than force (lbs.) divided by area (in or ft.), or force per unit area. Given a 100 lb. block and an area of 100 sq. in. on the floor, the pressure exerted by the block is: 100 lbs. 100 in or 1 pound per square inch, or PSI as it is commonly referred to.

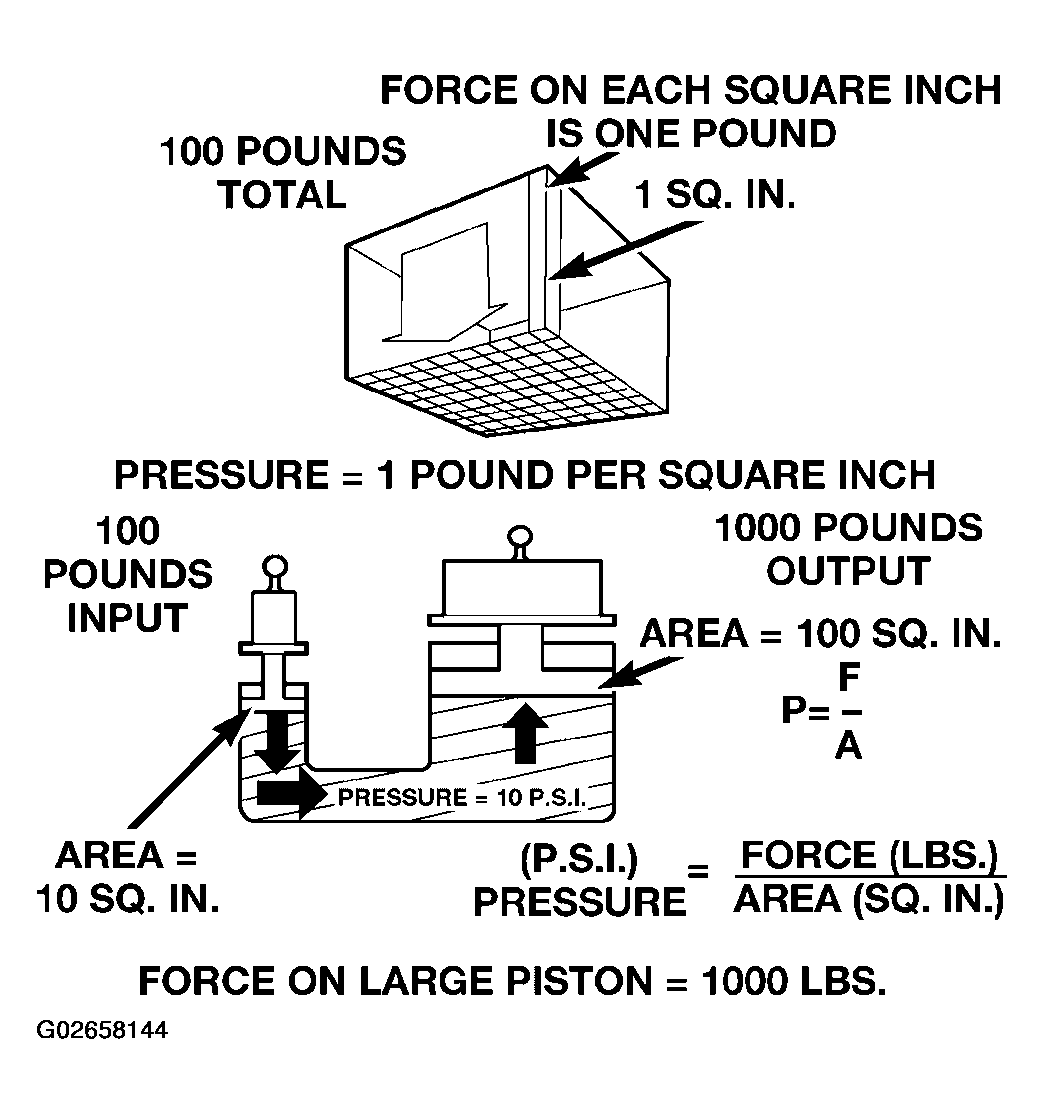

Fig 1: Identifying Force And Pressure Relationship
G02658144Courtesy of DAIMLERCHRYSLER CORP.
