Overrunning Clutch Cam/Overdrive Piston Retainer: Description

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The overrunning clutch (Fig 1) consists of an inner race, an outer race (or cam), rollers and springs, and the spring retainer. The number of rollers and springs depends on what transmission and which overrunning clutch is being dealt with.

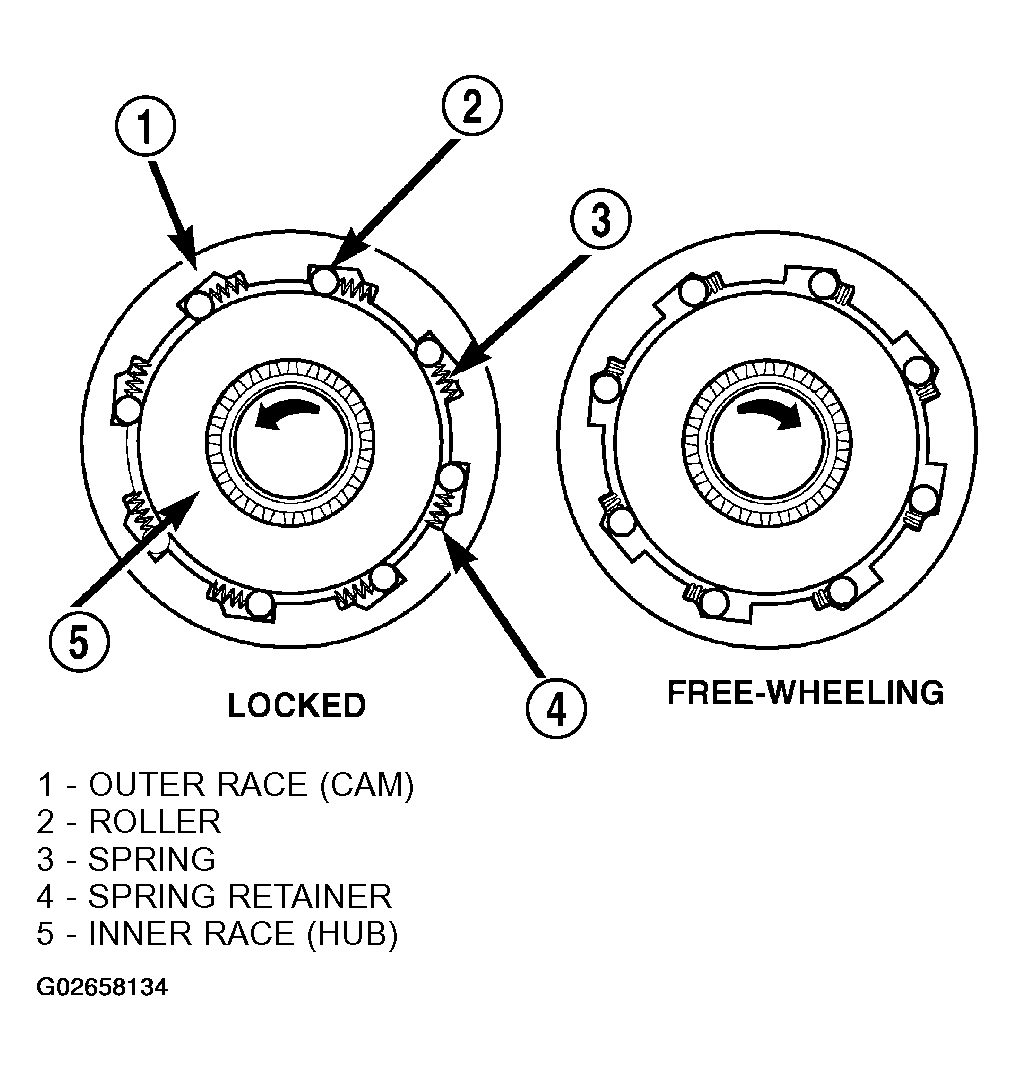

Fig 1: Identifying Overrunning Clutch
G02658134Courtesy of DAIMLERCHRYSLER CORP.
