Overdrive Piston

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Remove overdrive piston thrust plate (Fig 1). Retain thrust plate. It is a select fit part and may possibly be reused.

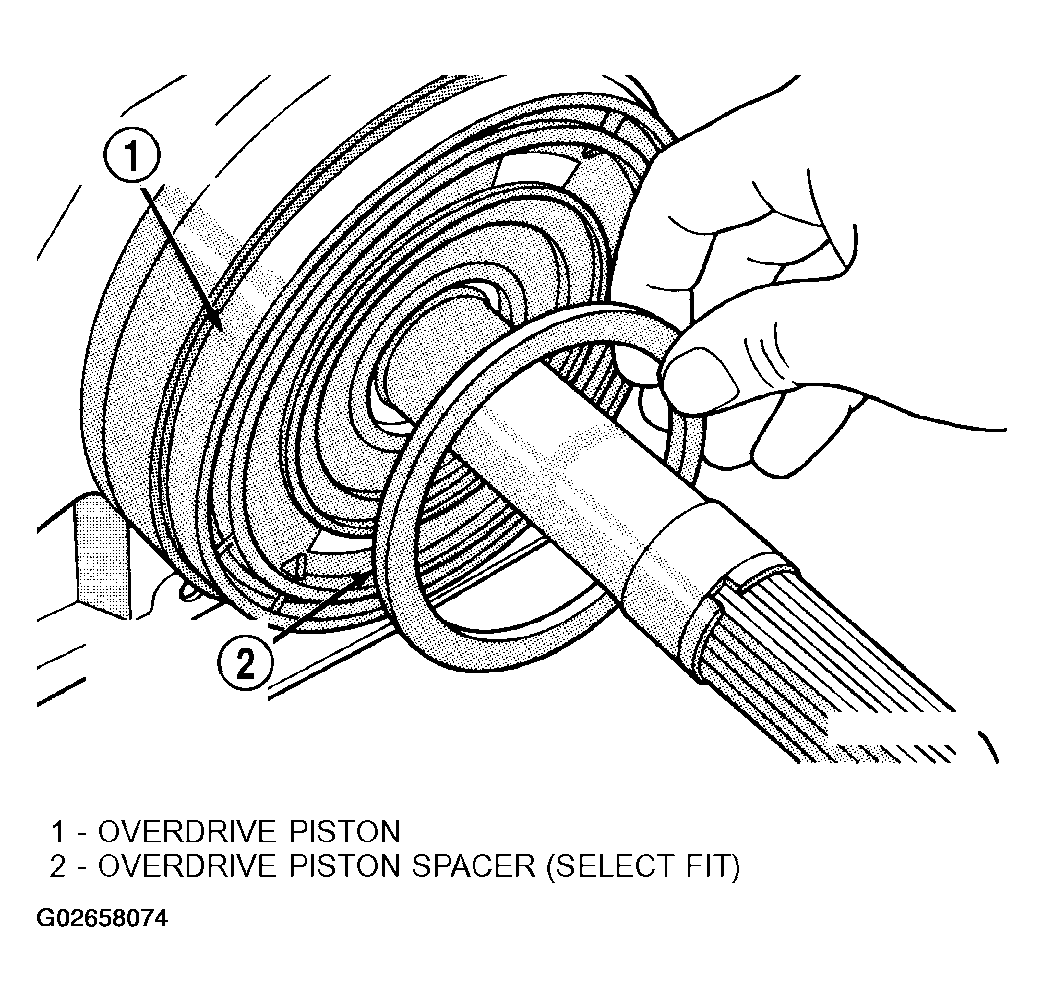

Fig 1: Removing Overdrive Piston Thrust Plate
Courtesy of DAIMLERCHRYSLER CORP.
Remove intermediate shaft spacer (Fig 2). Retain spacer. It is a select fit part and may possibly be reused.

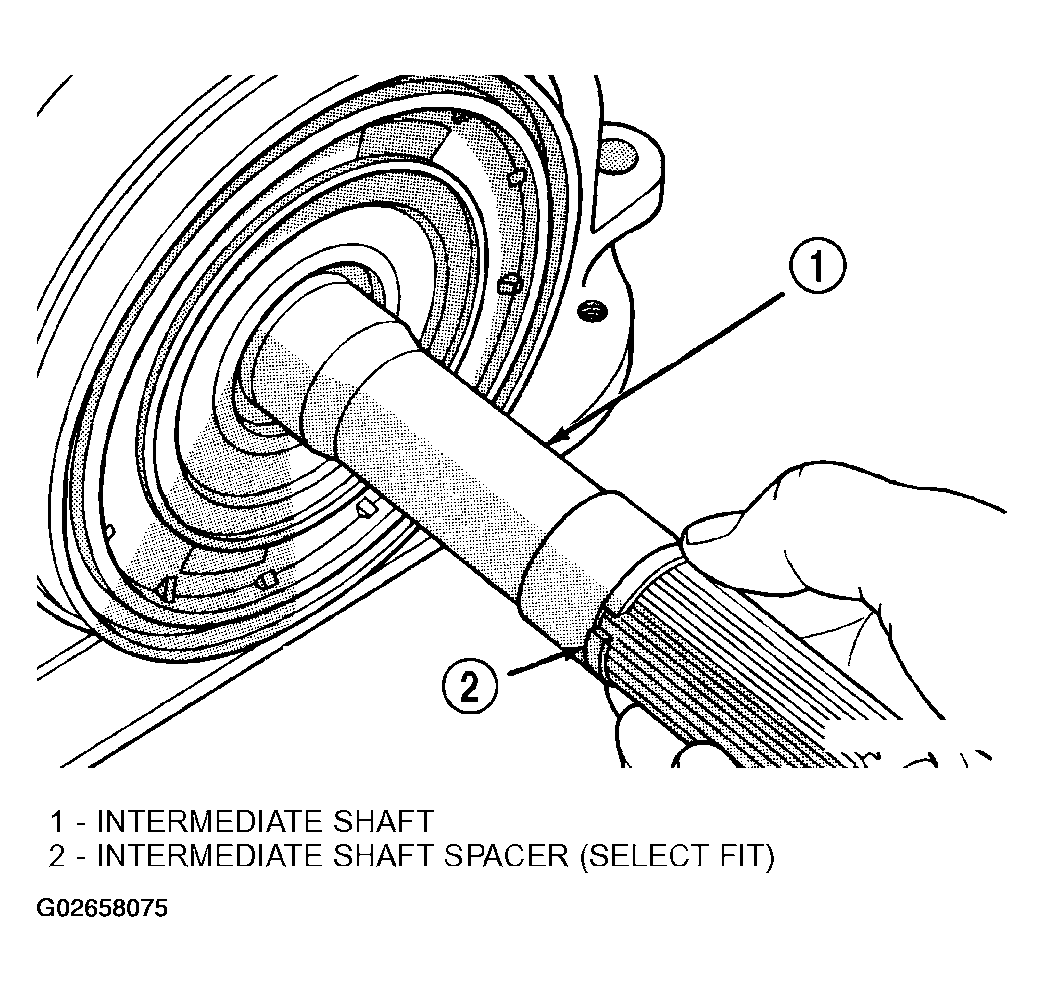

Fig 2: Removing Intermediate Shaft Spacer
Courtesy of DAIMLERCHRYSLER CORP.
Remove overdrive piston from retainer (Fig 3).

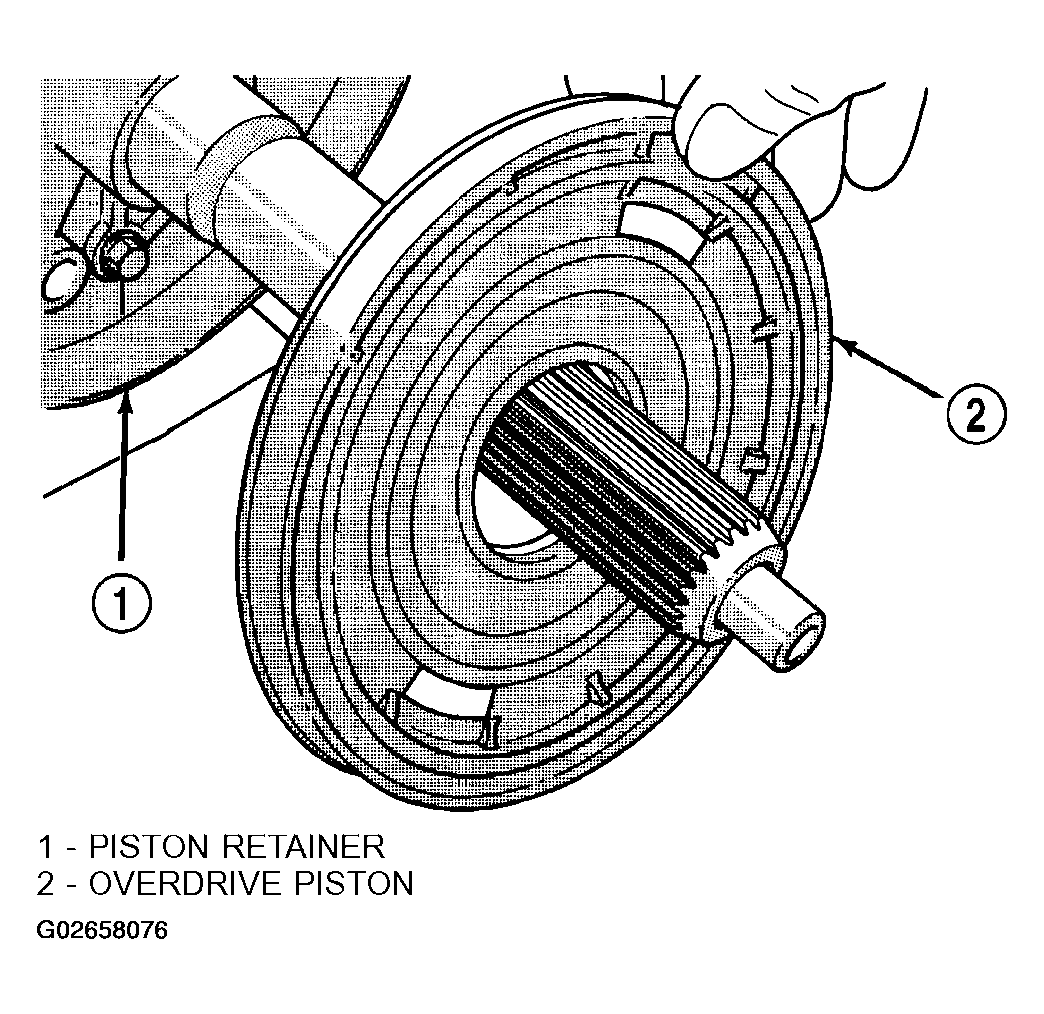

Fig 3: Removing Overdrive Piston
Courtesy of DAIMLERCHRYSLER CORP.
