Overdrive Clutch Pack

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Remove overdrive clutch pack wire retaining ring (Fig 1).

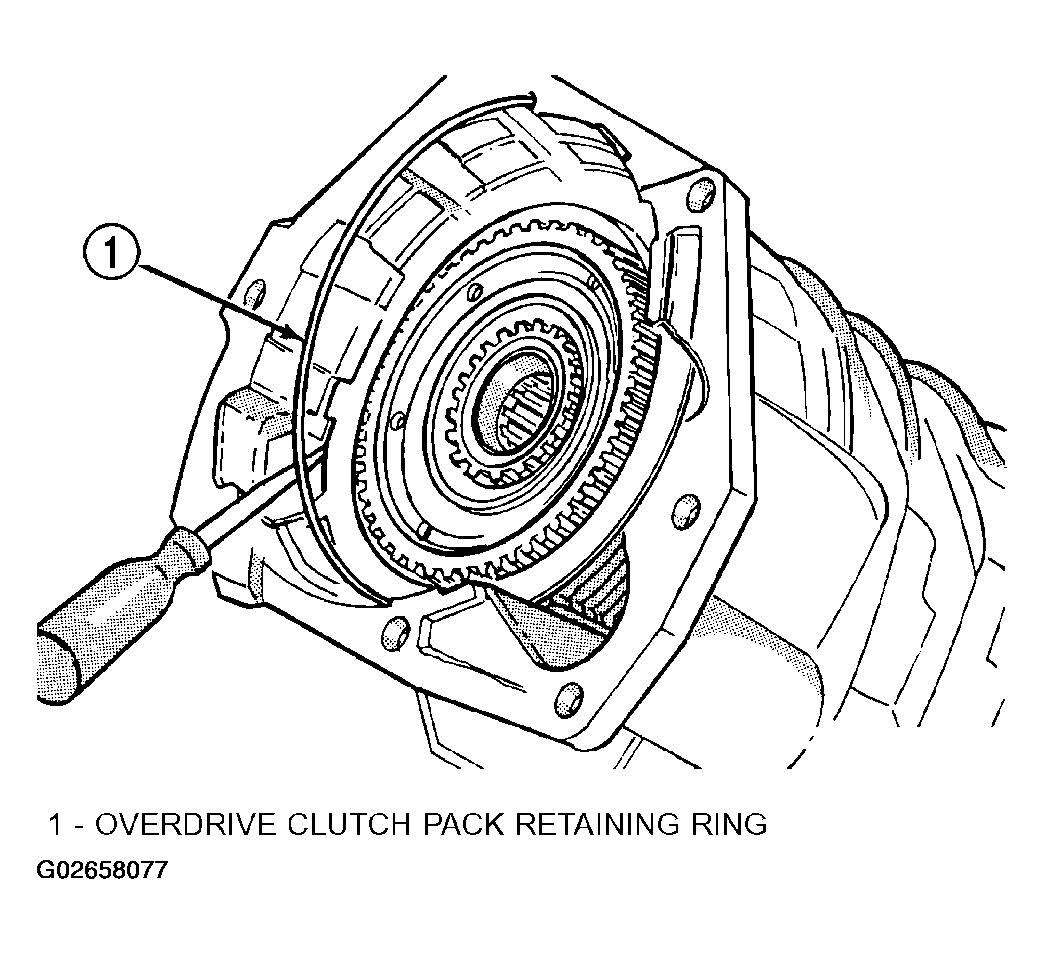

Fig 1: Removing Overdrive Clutch Pack Retaining Ring
Courtesy of DAIMLERCHRYSLER CORP.
Remove overdrive clutch pack (Fig 2).

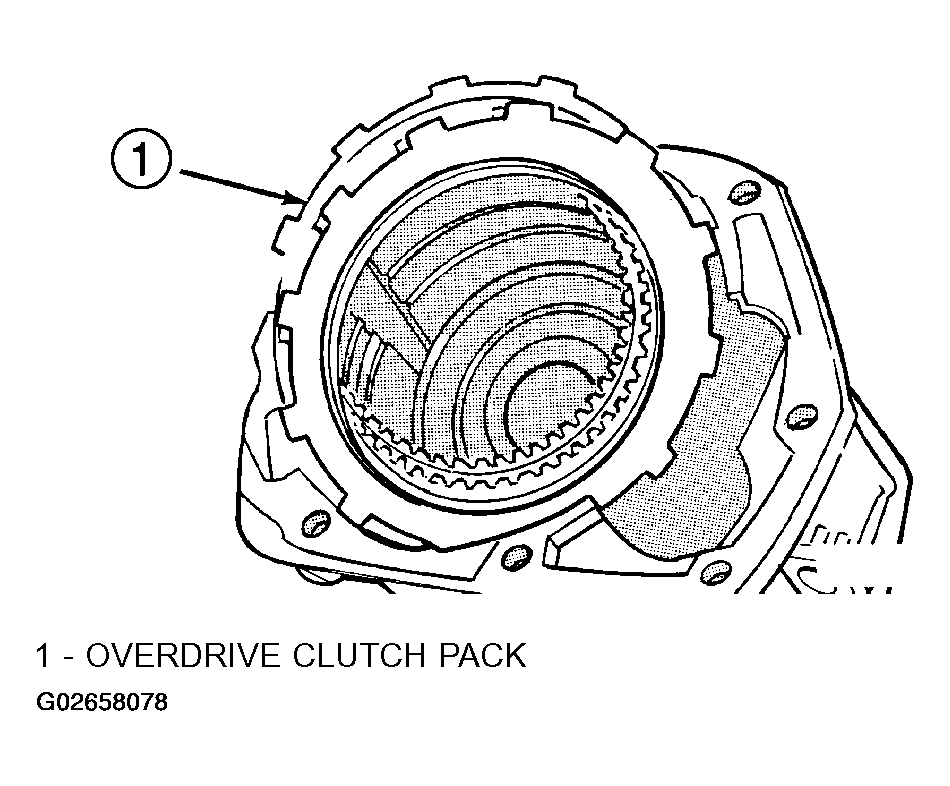

Fig 2: Removing Overdrive Clutch Pack
Courtesy of DAIMLERCHRYSLER CORP.
Note position of clutch pack components for assembly reference (Fig 3).

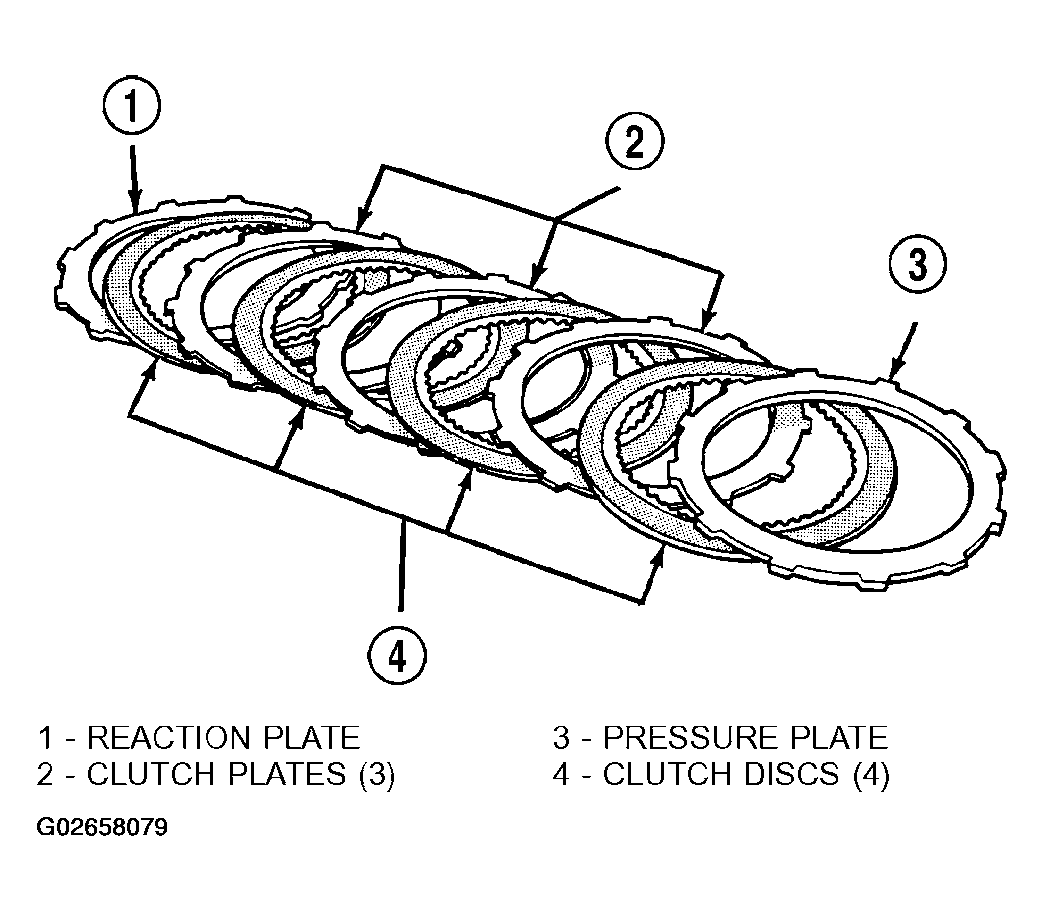

Fig 3: Identifying Overdrive Clutch Components
Courtesy of DAIMLERCHRYSLER CORP.
