Overdrive Unit: Disassembly: Notes

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Remove transmission speed sensor and o-ring seal from overdrive case (Fig 1).

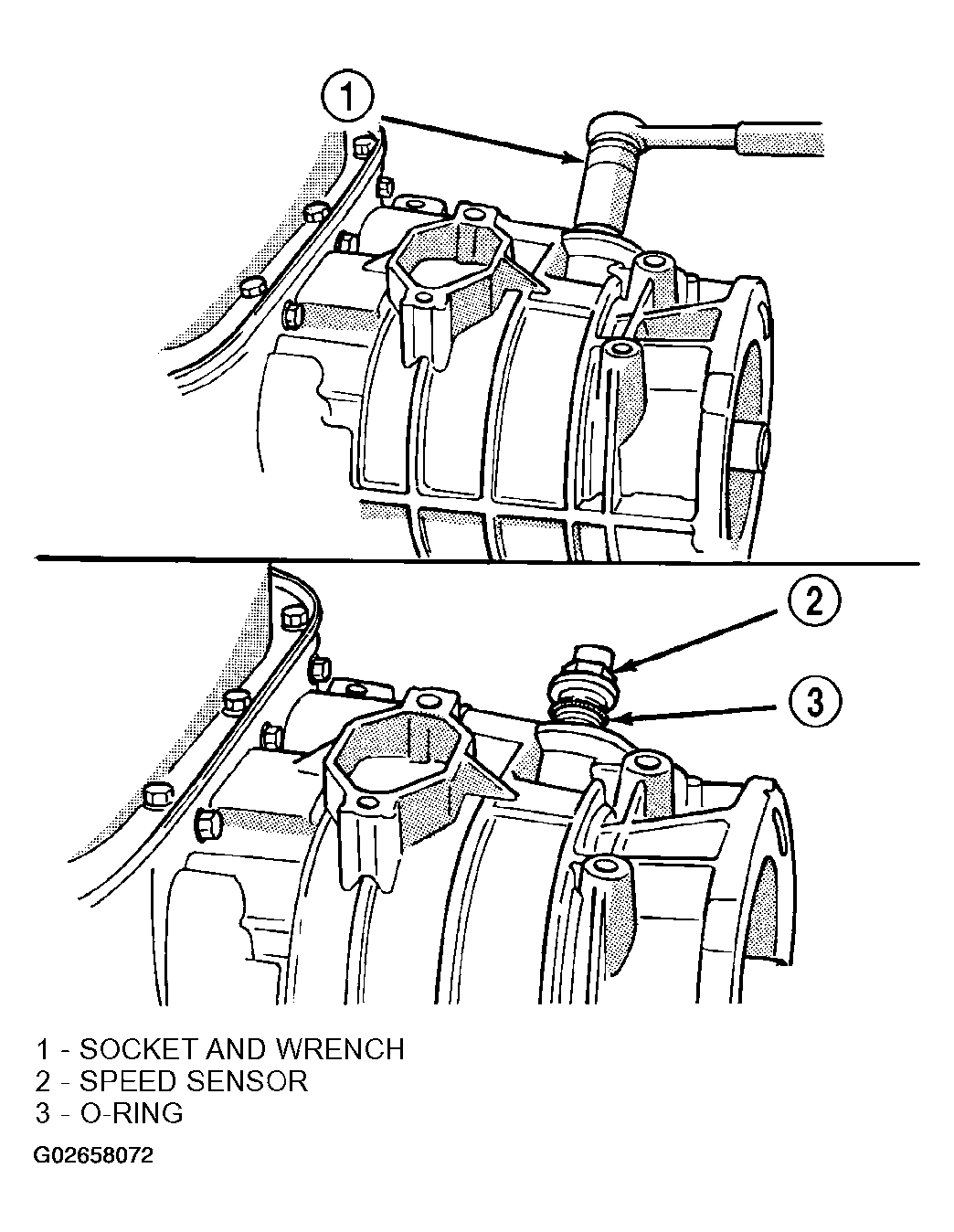

Fig 1: Removing Transmission Speed Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Remove overdrive piston thrust bearing (Fig 2).

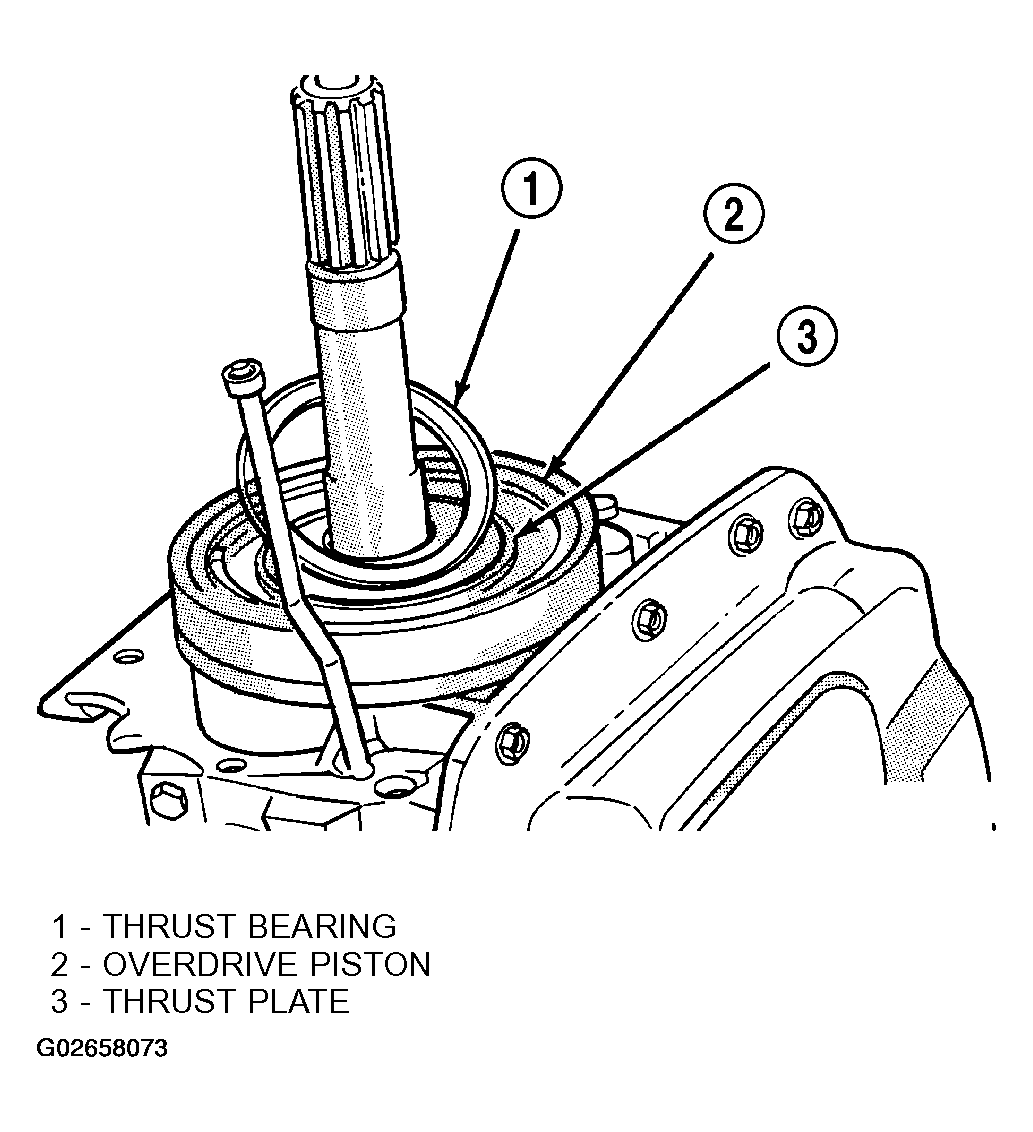

Fig 2: Removing Overdrive Piston Thrust Bearing
Courtesy of DAIMLERCHRYSLER CORP.
