Overdrive Clutch

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The overdrive clutch in a 46RE transmission uses 4 clutch discs.

Install overdrive clutch reaction ring first. Reaction ring is flat with notched ends (Fig 1).

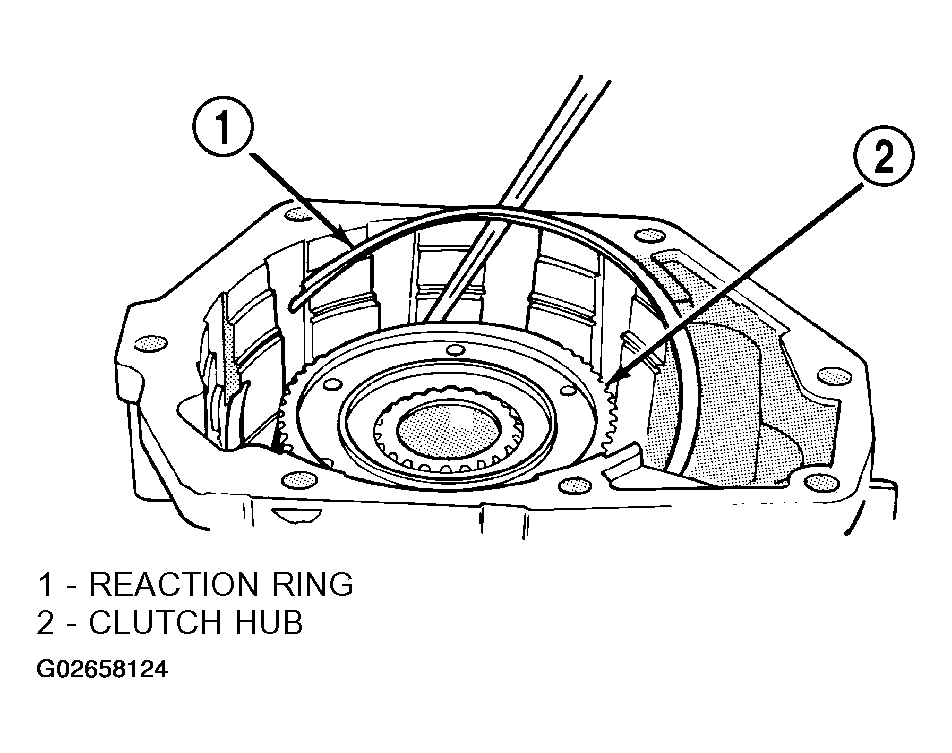

Fig 1: Installing Overdrive Clutch Reaction Ring
Courtesy of DAIMLERCHRYSLER CORP.
Install wave spring on top of reaction ring (Fig 2). Reaction ring and wave ring both fit in same ring groove. Use screwdriver to seat each ring securely in groove. Also ensure that the ends of the two rings are offset from each other.

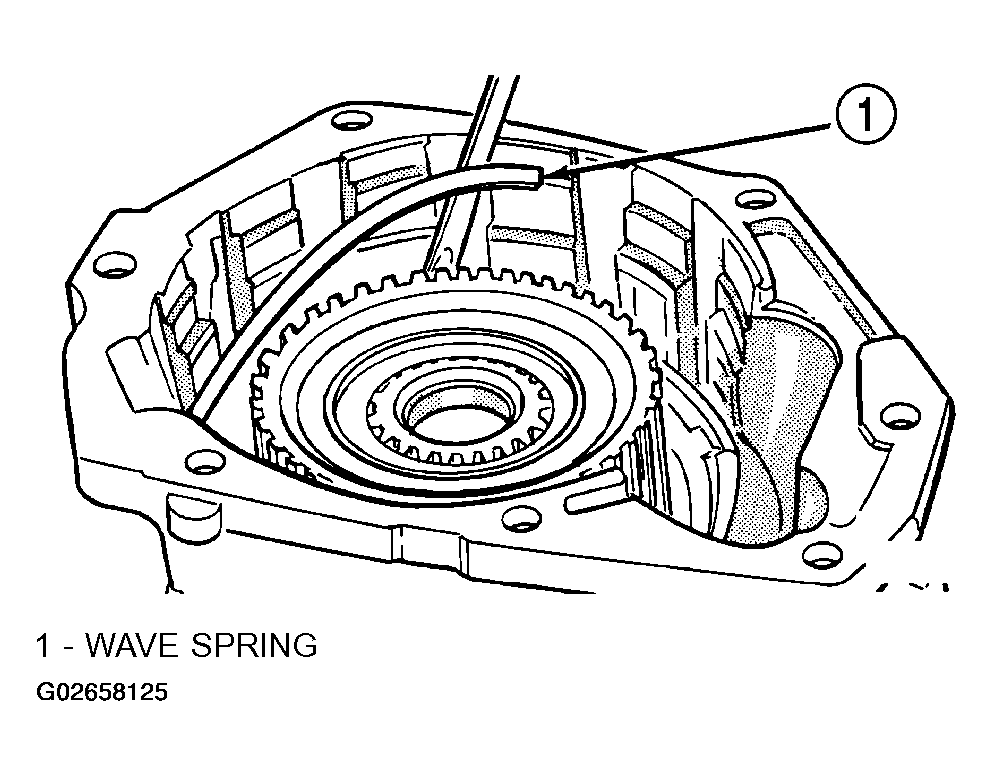

Fig 2: Installing Overdrive Clutch Wave Spring
Courtesy of DAIMLERCHRYSLER CORP.
Assemble overdrive clutch pack (Fig 3).

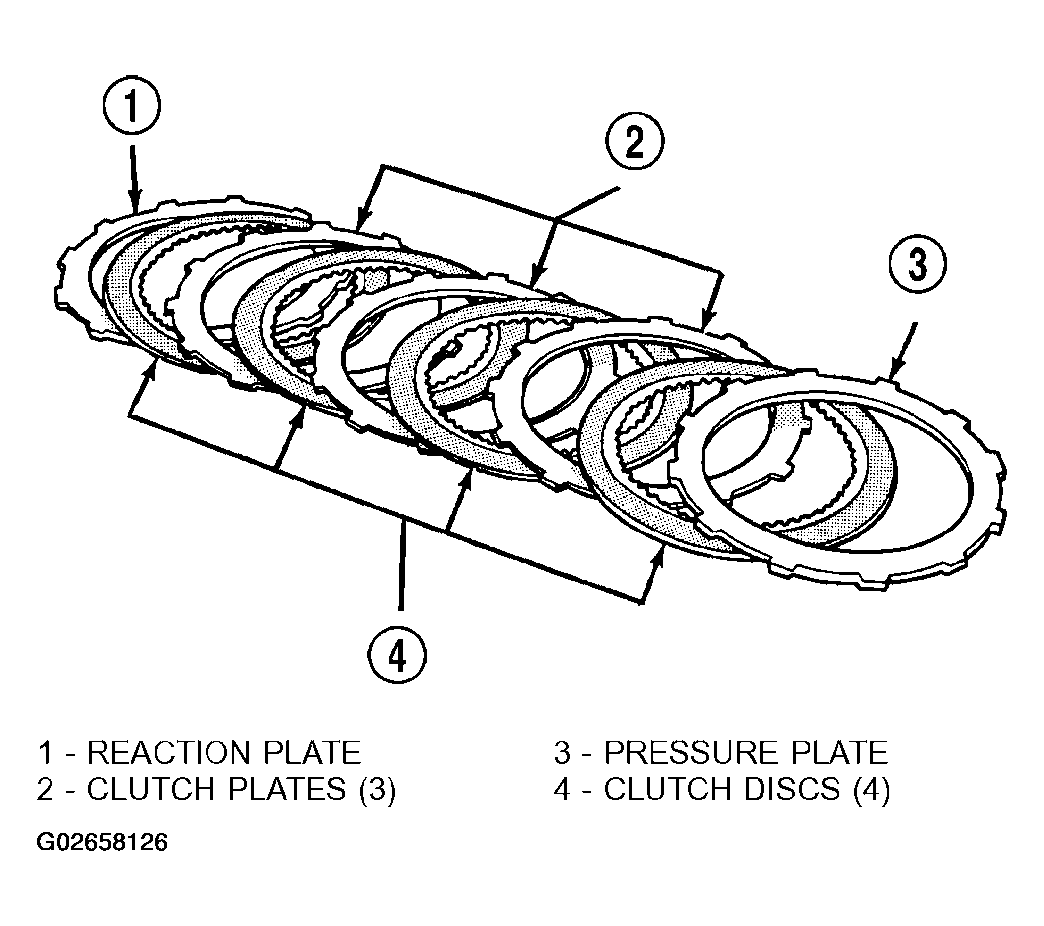

Fig 3: Identifying 46RE Overdrive Clutch Components
Courtesy of DAIMLERCHRYSLER CORP.
Install overdrive clutch reaction plate first.
NOTE: The reaction plate is the same thickness as the pressure plate in a 46RE transmission.
Install first clutch disc followed by first clutch plate. Then install remaining clutch discs and plates in same order.
Install clutch pack pressure plate.
Install clutch pack wire-type retaining ring (Fig 4).

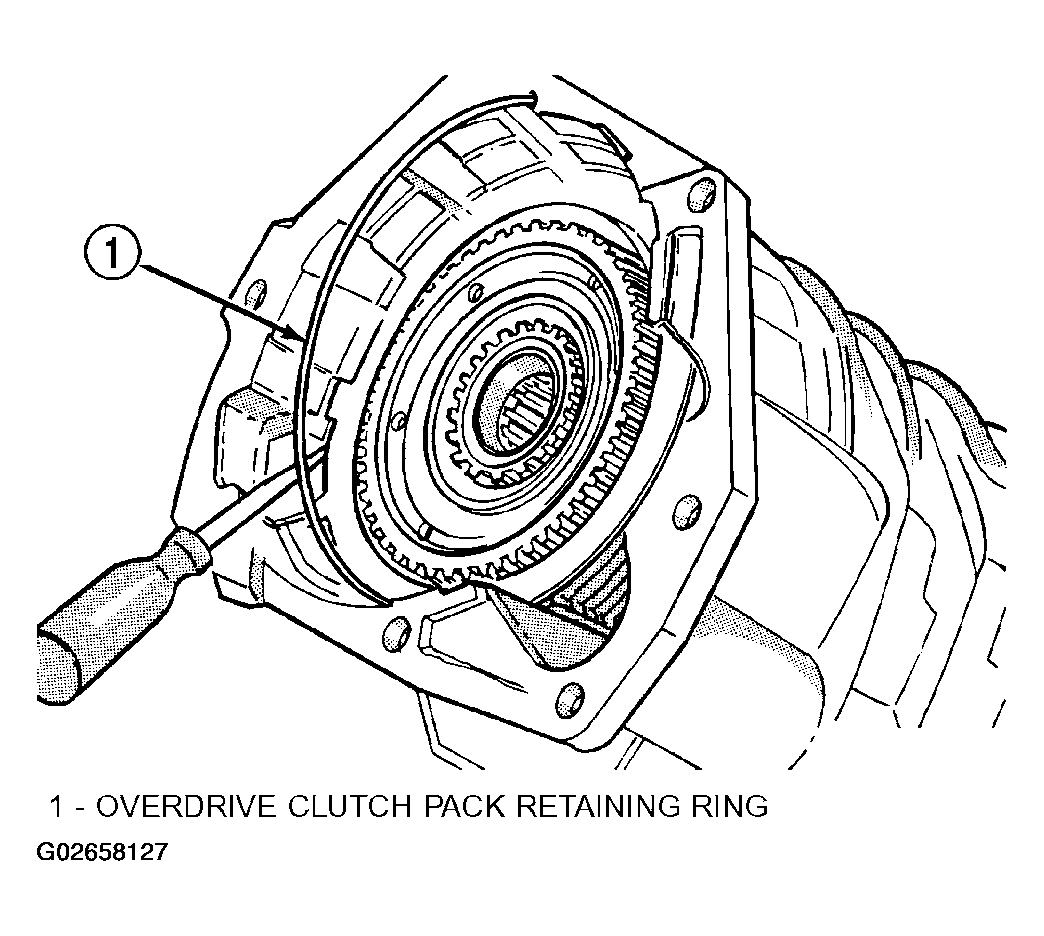

Fig 4: Installing Overdrive Clutch Pack Retaining Ring
