Intermediate Shaft Spacer Selection

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place overdrive unit in vertical position. Mount it on blocks, or in workbench with appropriate size mounting hole cut into it. Be sure unit is facing upward for access to direct clutch hub. Also be sure output shaft is not loaded and internal components are moved rearward for accurate measurement.
  2. Determine correct thickness intermediate shaft spacer as follows:
    1. Insert Special Tool 6312 through sun gear, planetary gear and into pilot bushing in output shaft. Be sure tool bottoms against planetary shoulder.
    2. Position Gauge Tool 6311 across face of overdrive case (Fig 1). Then position Dial Caliper C-4962 over gauge tool.

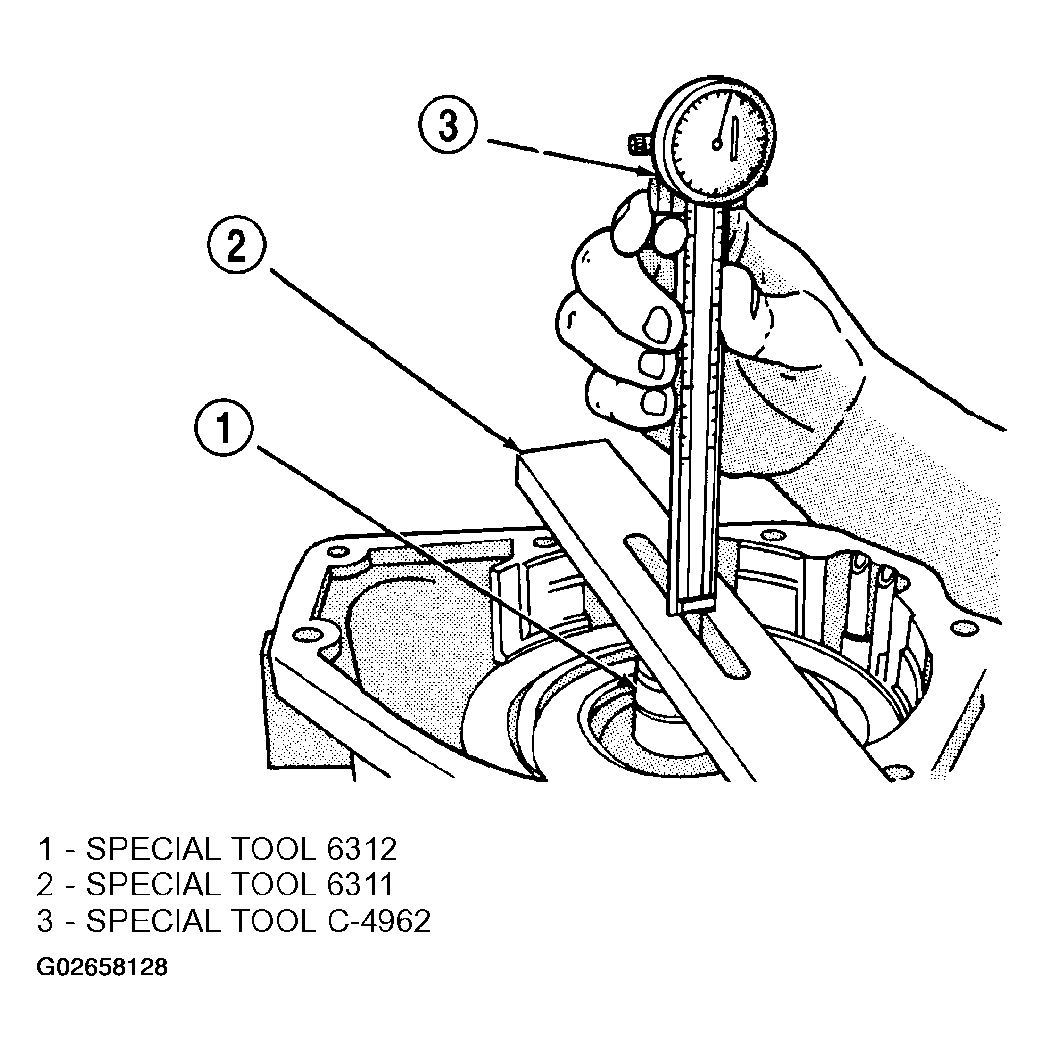

      Fig 1: Measuring Shaft End Play
      G02658128Courtesy of DAIMLERCHRYSLER CORP.
    3. Extend sliding scale of dial caliper downward through gauge tool slot until scale contacts end of Gauge Alignment Tool 6312. Lock scale in place. Remove dial caliper tool and note distance measured (Fig 1).
    4. Select proper thickness end play spacer from spacer chart based on distance measured (Fig 2).
      Fig 2: Intermediate Shaft End Play Spacer Selection Reference Table
      G02658129Courtesy of DAIMLERCHRYSLER CORP.
    5. Remove Gauge Alignment Tool 6312.
