Output Shaft Rear Bearing: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place replacement bearing in position in housing.
  2. Using a suitable driver, drive bearing into housing until the snap-ring groove is visible.

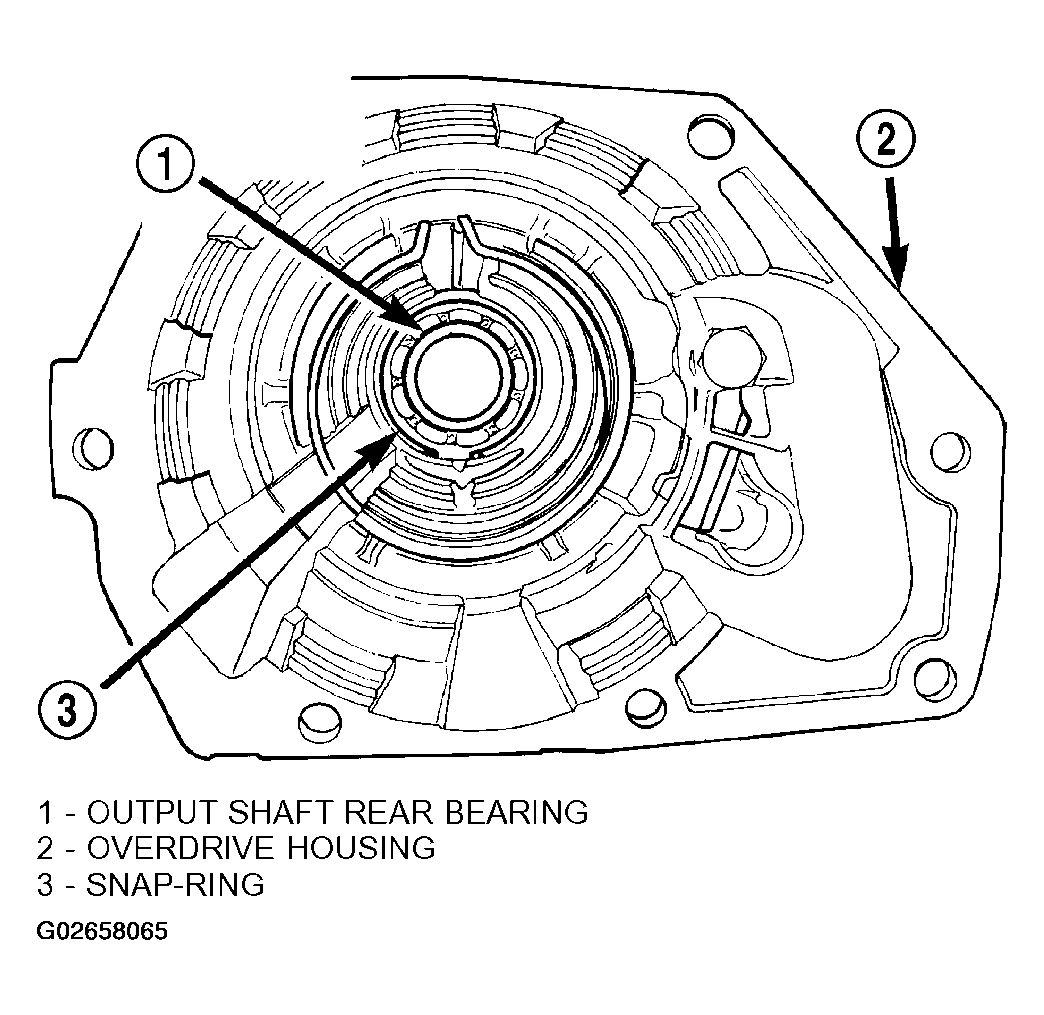

  3. Install snap-ring to hold bearing into housing (Figure).
  4. Install overdrive geartrain into housing.
  5. Install overdrive unit in vehicle.
