Output Shaft Front Bearing: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove overdrive unit from the vehicle.
  2. Remove overdrive geartrain from housing.
  3. Remove snap-ring holding output shaft front bearing to overdrive geartrain. (Fig 1).

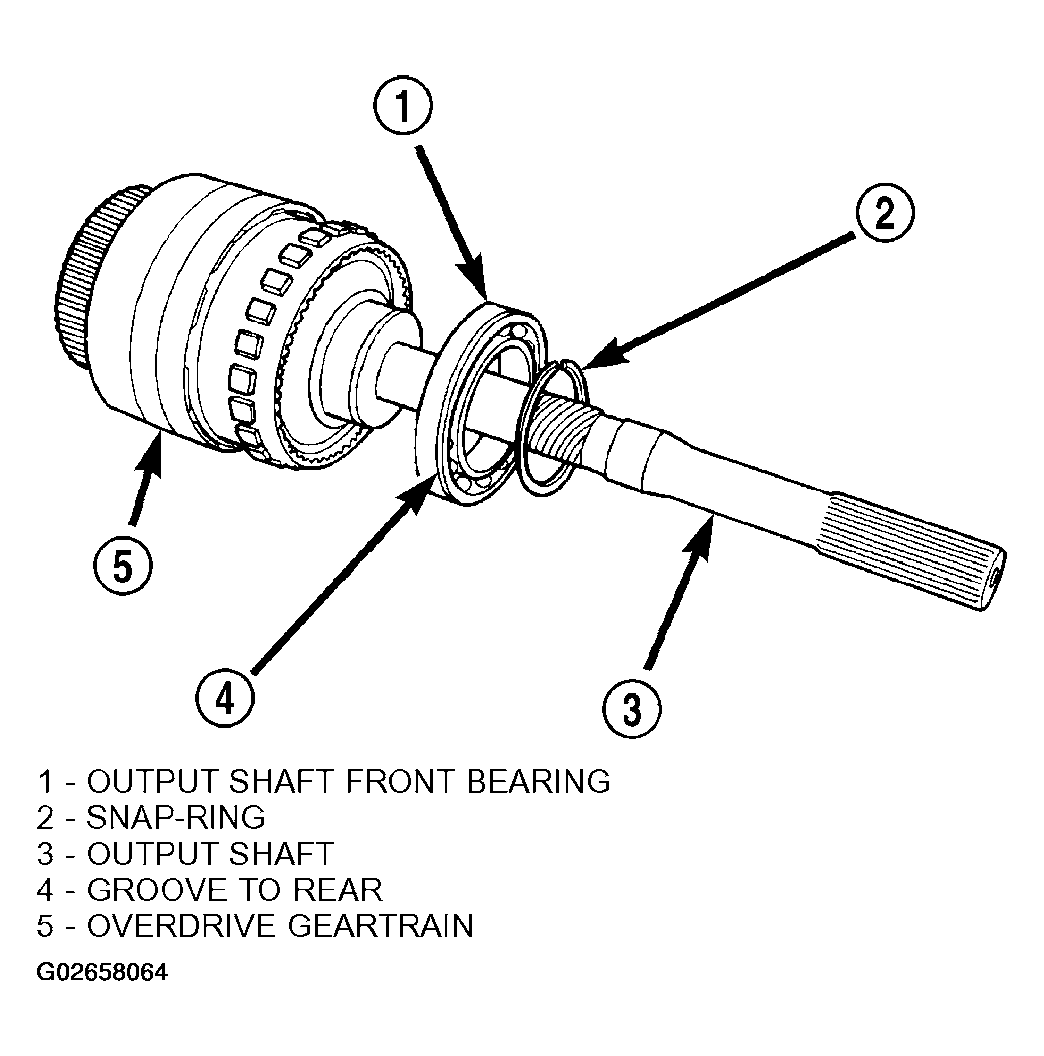

    Fig 1: Removing/Installing Output Shaft Front Bearing
    G02658064Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull bearing from output shaft.
