Reaction Shaft Support Bushing Removal
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

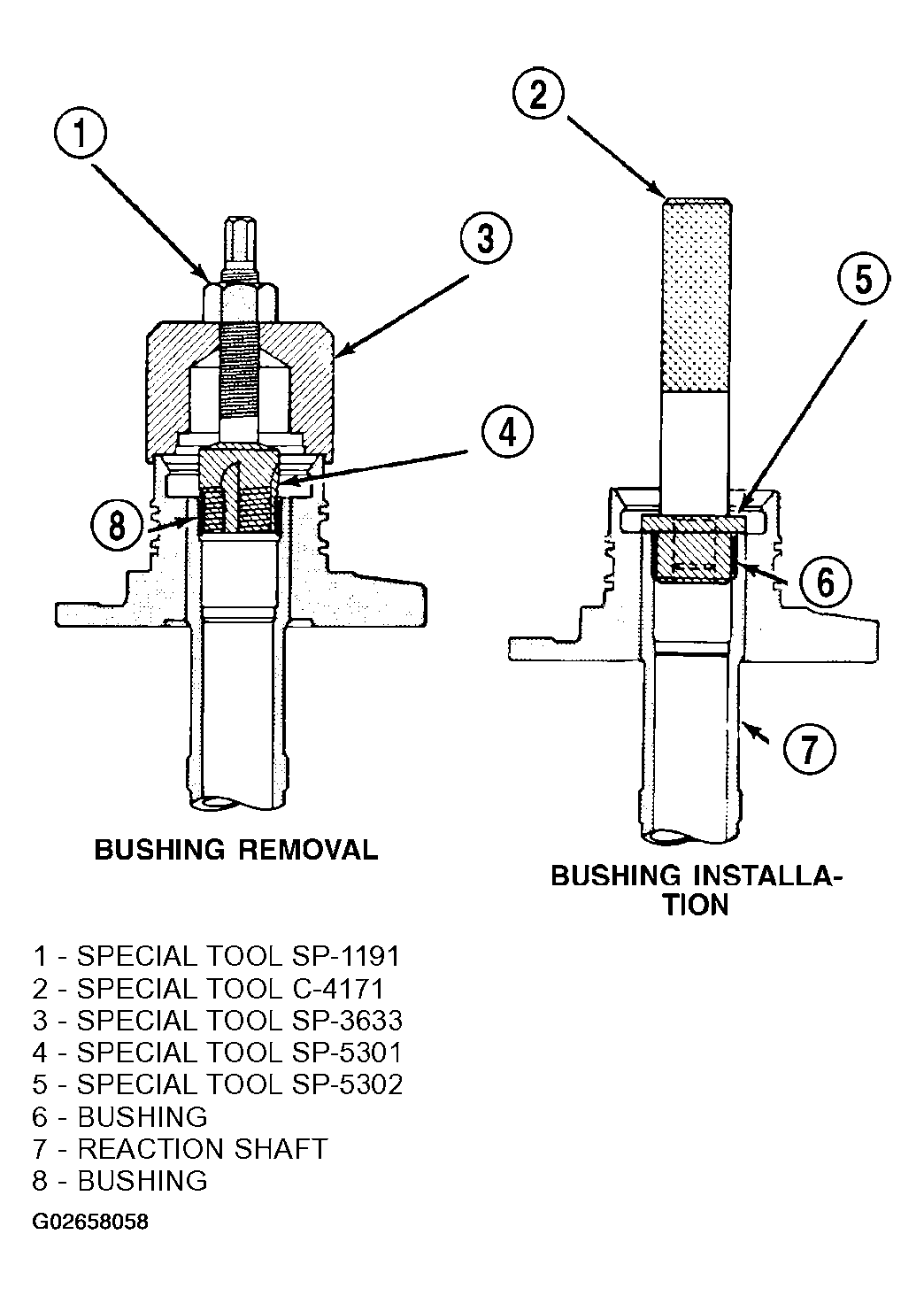

- Assemble Cup Tool SP-3633, Nut SP-1191 and Bushing Remover SP-5301 (Fig 1).
- Hold cup tool firmly against reaction shaft. Thread remover tool into bushing as far as possible by hand.
- Using wrench, thread remover tool an additional 3-4 turns into bushing to firmly engage tool.
- Tighten tool hex nut against cup tool to pull bushing from shaft. Clean all chips from shaft and support after bushing removal.
