Oil Pump Bushing Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position pump housing on clean, smooth surface with gear cavity facing down.
  2. Remove bushing with Tool Handle C-4171 and Bushing Remover SP-3550 (Fig 1).

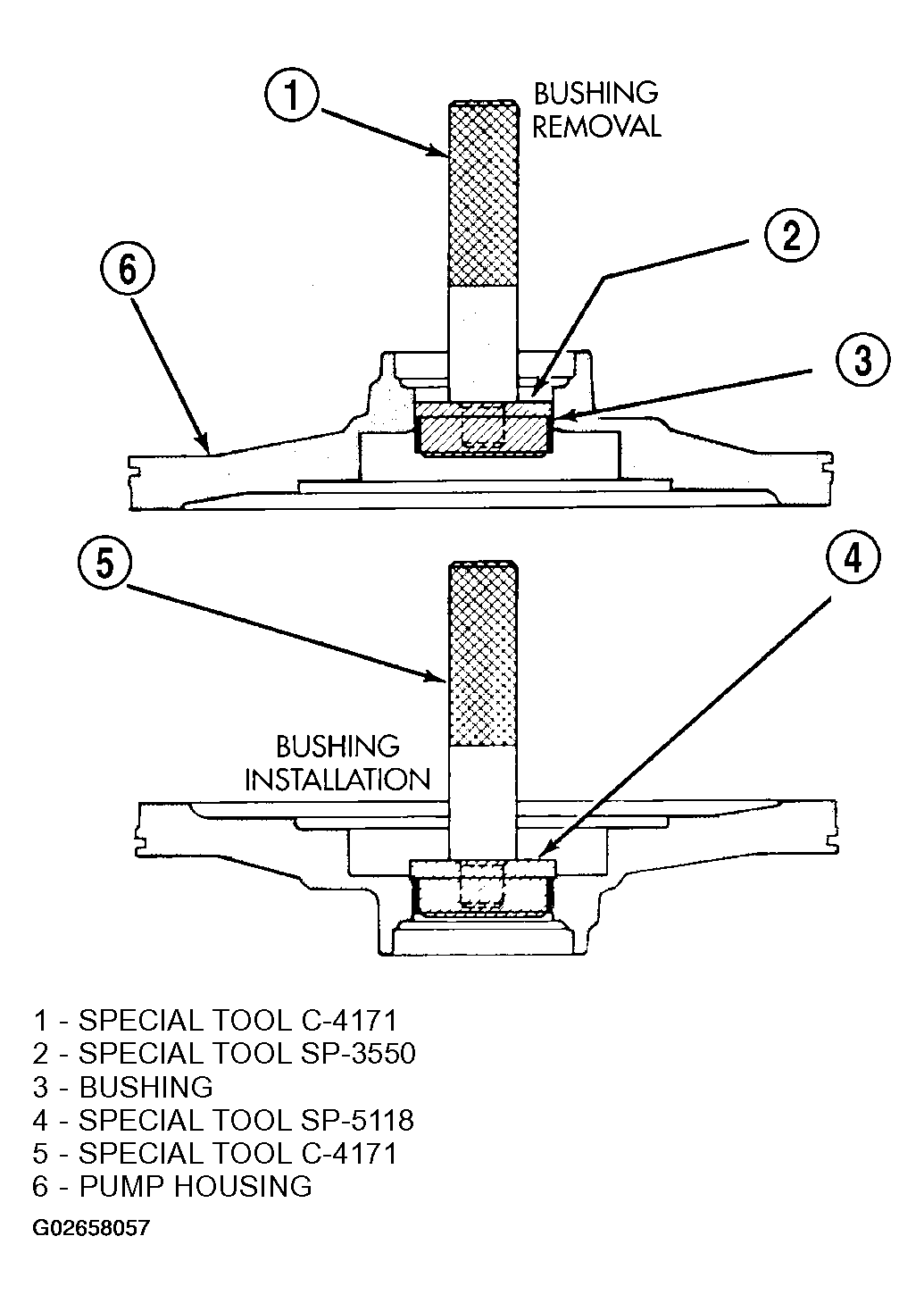

    Fig 1: Removing Oil Pump Bushing
    G02658057Courtesy of DAIMLERCHRYSLER CORP.
