Oil Pump: Disassembly: Notes

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Mark position of support in oil pump body for assembly alignment reference. Use scriber or paint to make alignment marks.
Place pump body on two wood blocks.
Remove reaction shaft support bolts and separate support from pump body (Fig 1).

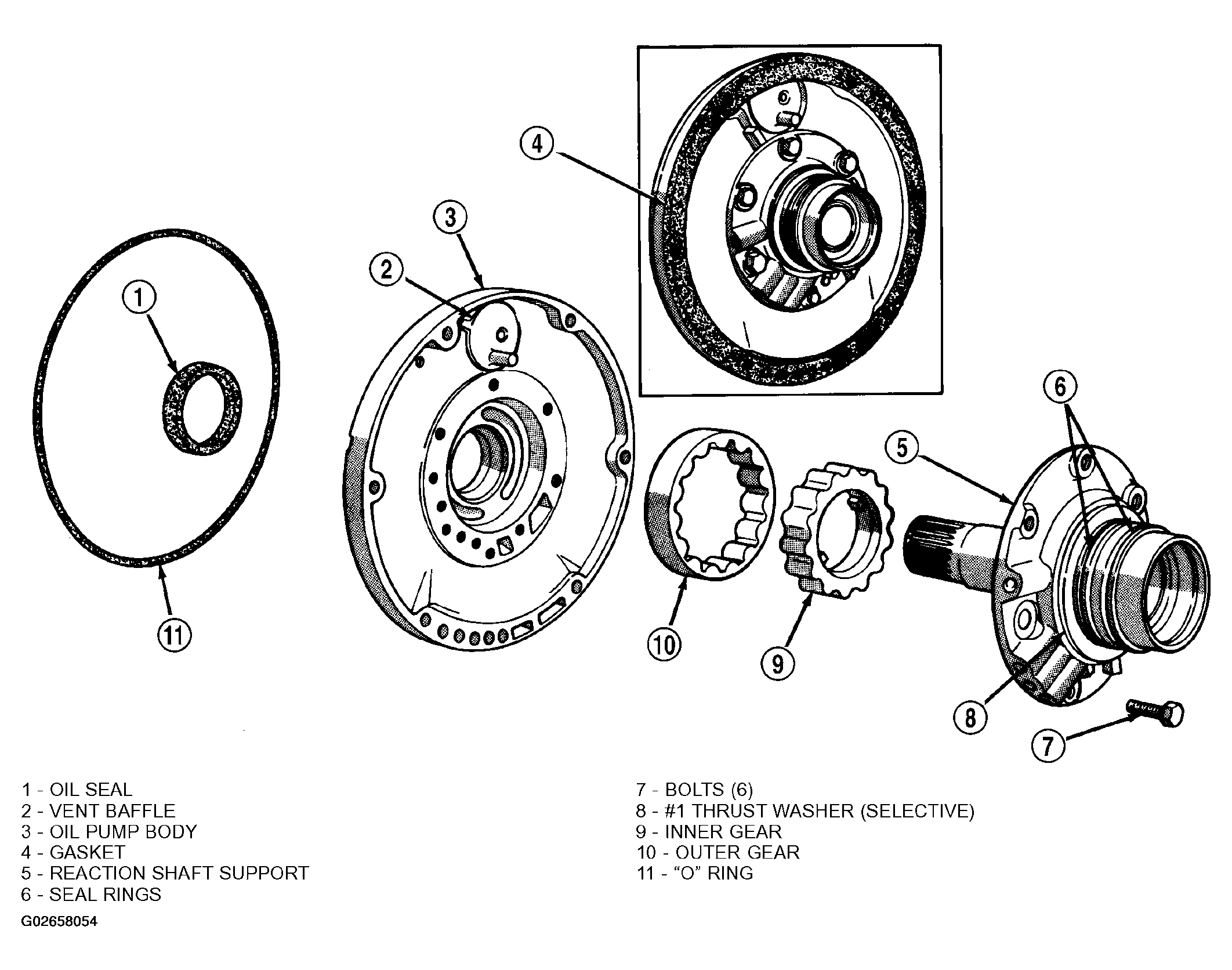

Fig 1: Locating Reaction Shaft Support
Courtesy of DAIMLERCHRYSLER CORP.
Remove pump inner and outer gears (Fig 2).

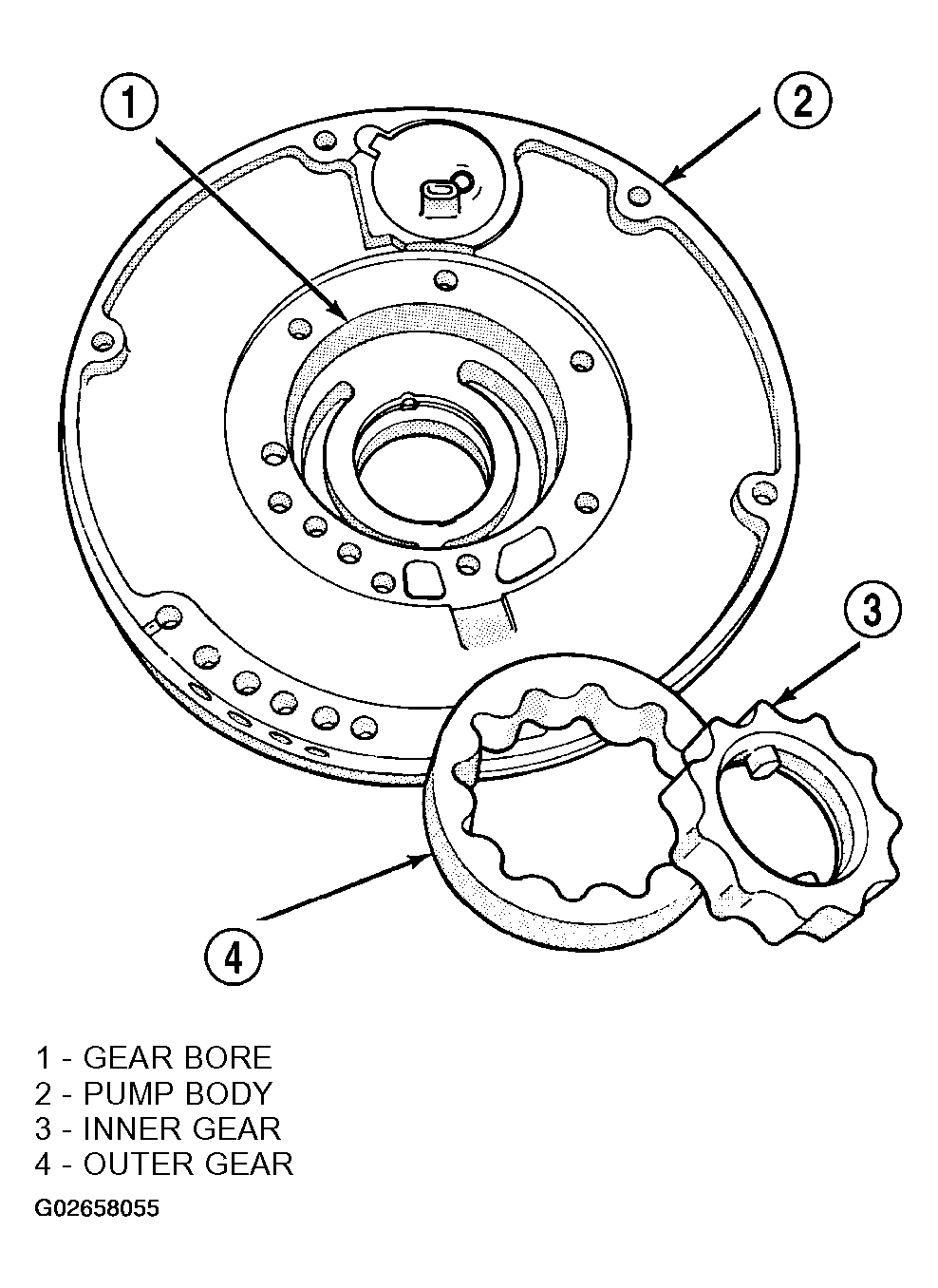

Fig 2: Locating Oil Pump Gears
Courtesy of DAIMLERCHRYSLER CORP.
Remove o-ring seal from pump body (Fig 3). Discard seal after removal.

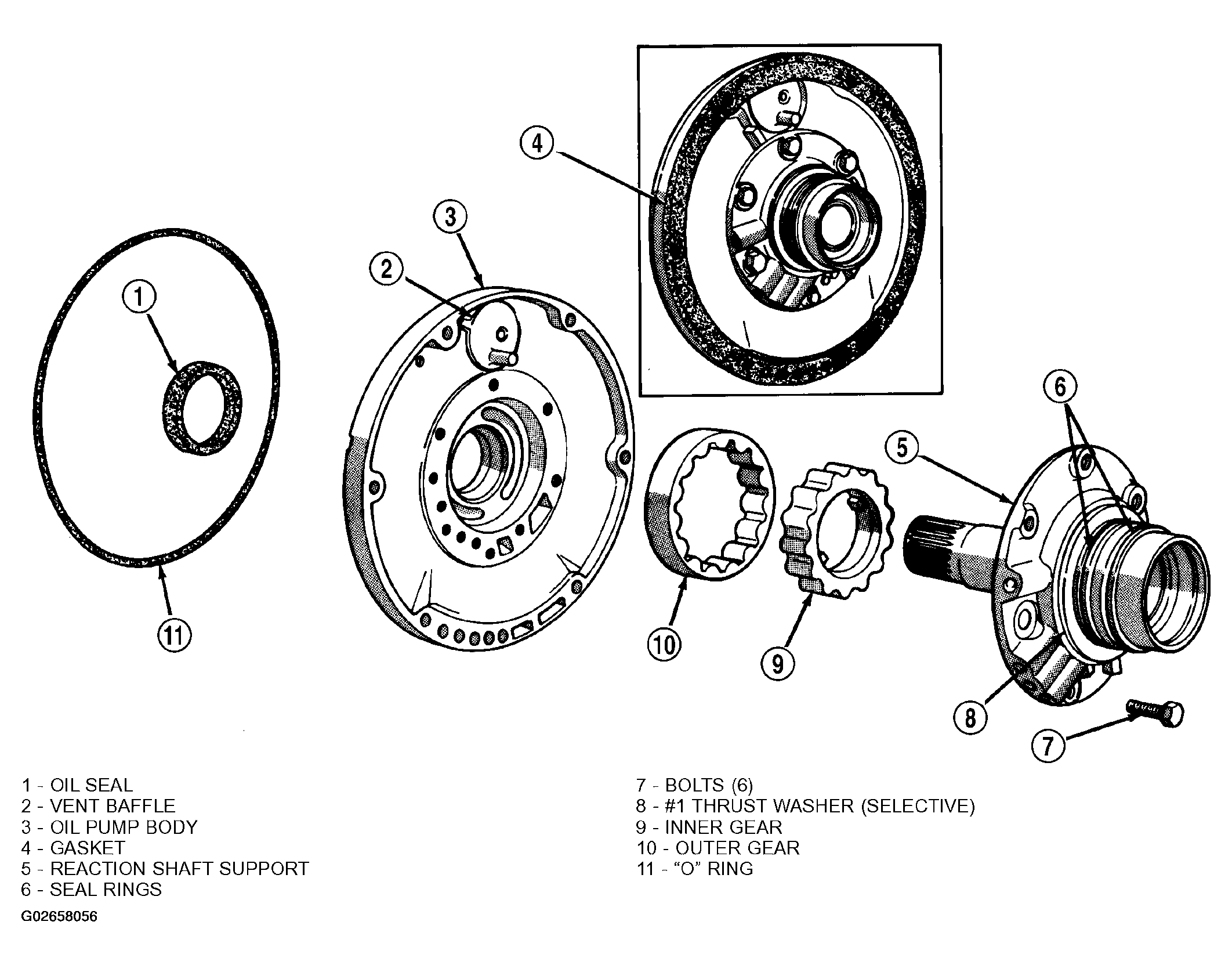

Fig 3: Exploded View Of Oil Pump
Courtesy of DAIMLERCHRYSLER CORP.
Remove oil pump seal with Remover Tool C-3981. Discard seal after removal.
