Reaction Shaft Support Bushing

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place reaction shaft support upright on a clean, smooth surface.
  2. Assemble Bushing Installer Tools C-4171 and SP-5302. Then slide new bushing onto installer tool (Fig 1).

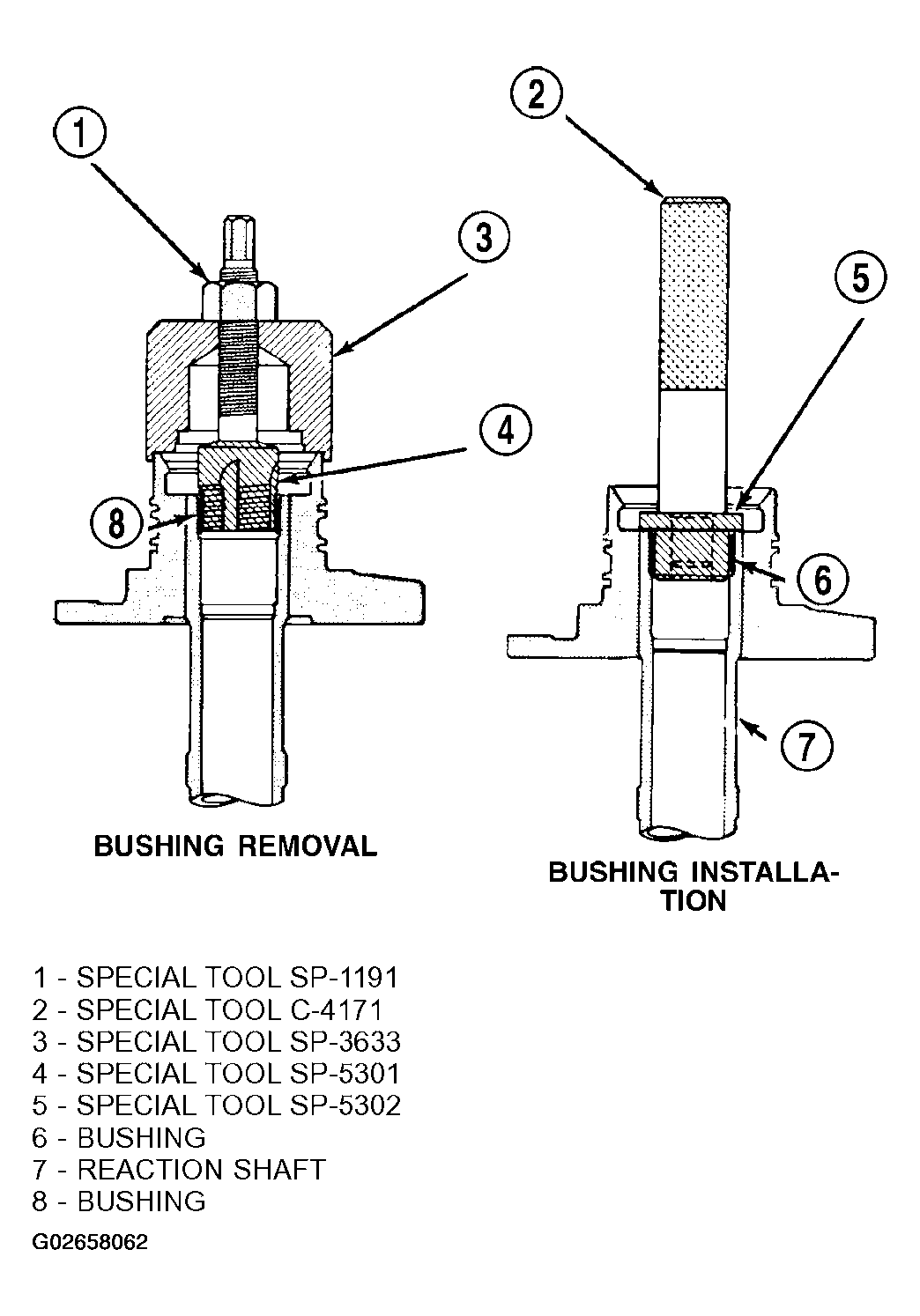

    Fig 1: Installing Reaction Shaft Bushing
    G02658062Courtesy of DAIMLERCHRYSLER CORP.
  3. Start bushing in shaft. Tap bushing into shaft until installer tool bottoms against support flange.
  4. Clean reaction shaft support thoroughly after bushing replacement (to remove any chips).
