Oil Pump Bushing

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble Tool Handle C-4171 and Bushing Installer SP-5118 (Fig 1).

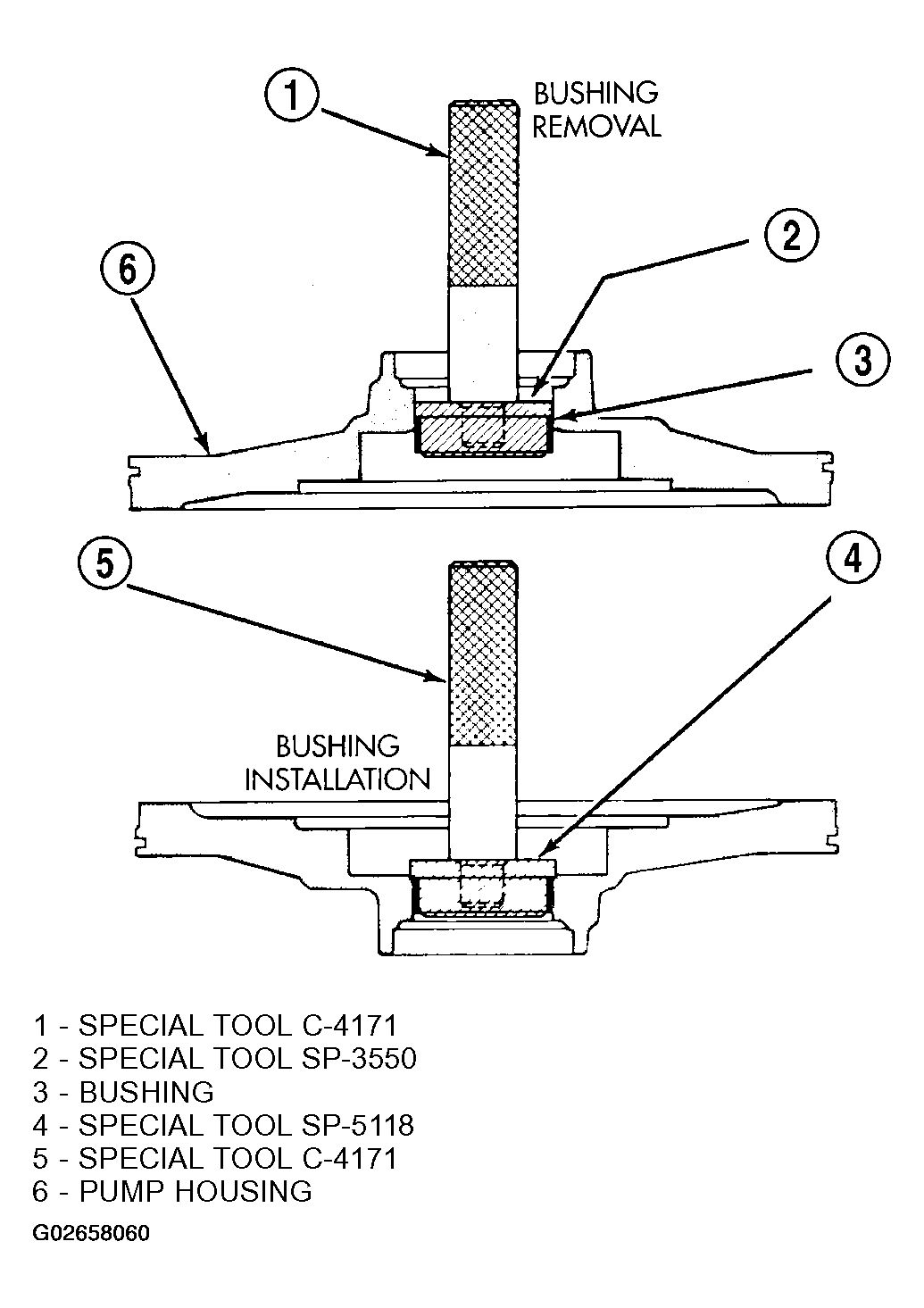

    Fig 1: Installing Oil Pump Bushing
    G02658060Courtesy of DAIMLERCHRYSLER CORP.
  2. Place bushing on installer tool and start bushing into shaft.
  3. Tap bushing into place until Installer Tool SP-5118 bottoms in pump cavity. Keep tool and bushing square with bore. Do not allow bushing to become cocked during installation.
  4. Stake pump bushing in two places with blunt punch. Remove burrs from stake points with knife blade (Fig 2).

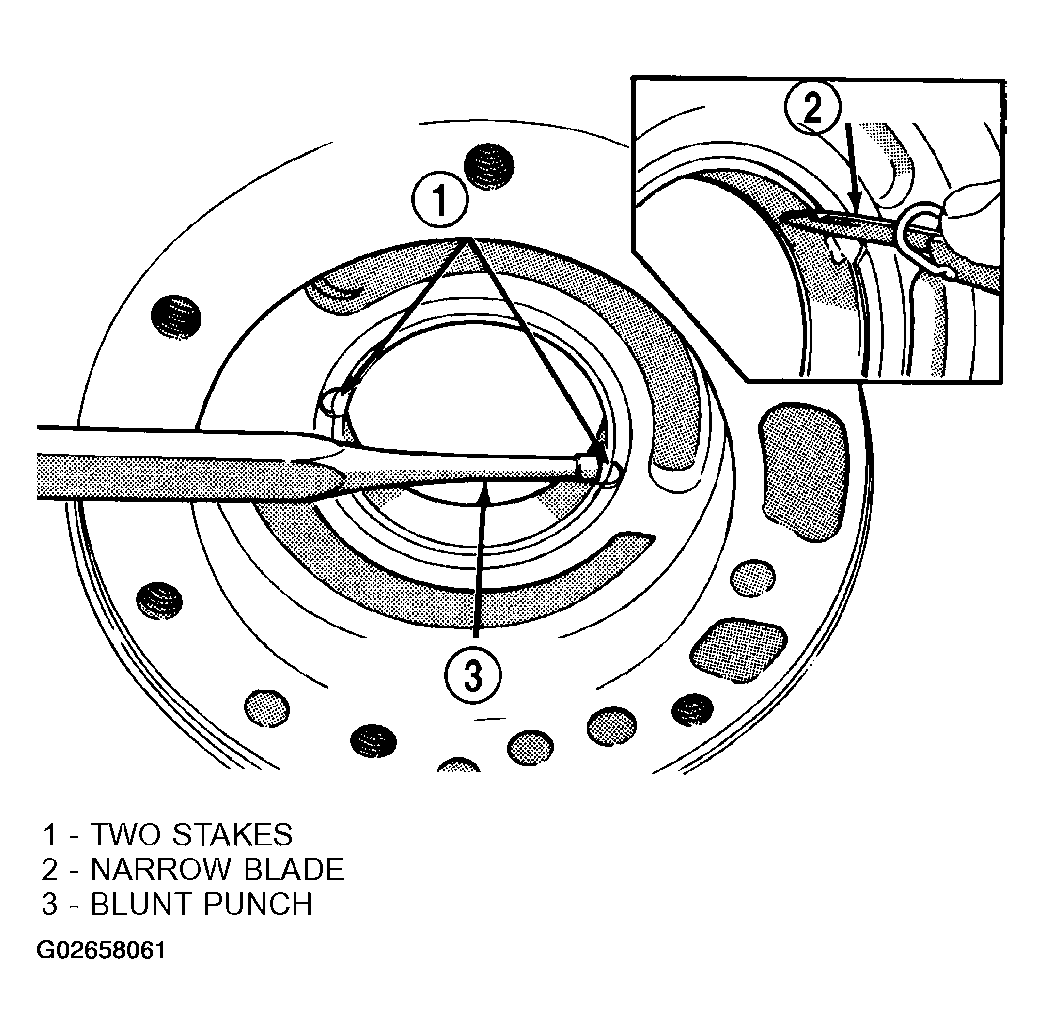

    Fig 2: Staking-Deburring Oil Pump Bushing
    G02658061Courtesy of DAIMLERCHRYSLER CORP.
