Front Servo: Disassembly

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove seal ring from rod guide (Fig 1).

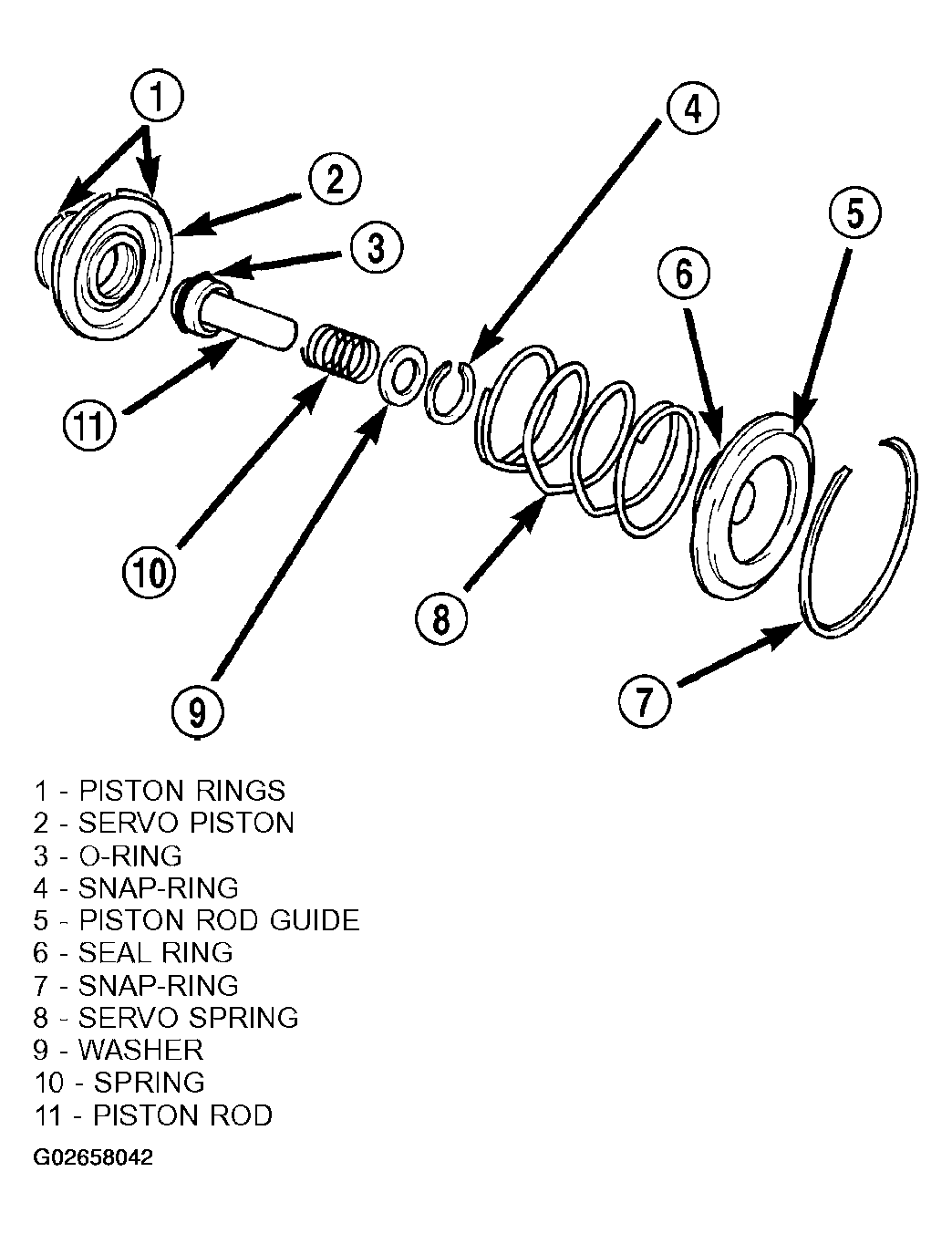

    Fig 1: Exploded View Of Front Servo
    G02658042Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove small snap-ring from servo piston rod. Then remove piston rod, spring and washer from piston.
  3. Remove and discard servo component O-ring and seal rings.
