Front Servo: Assembly
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
Clean and inspect front servo components.
- Lubricate new o-ring and seal rings with petroleum jelly and install them on piston, guide and rod.

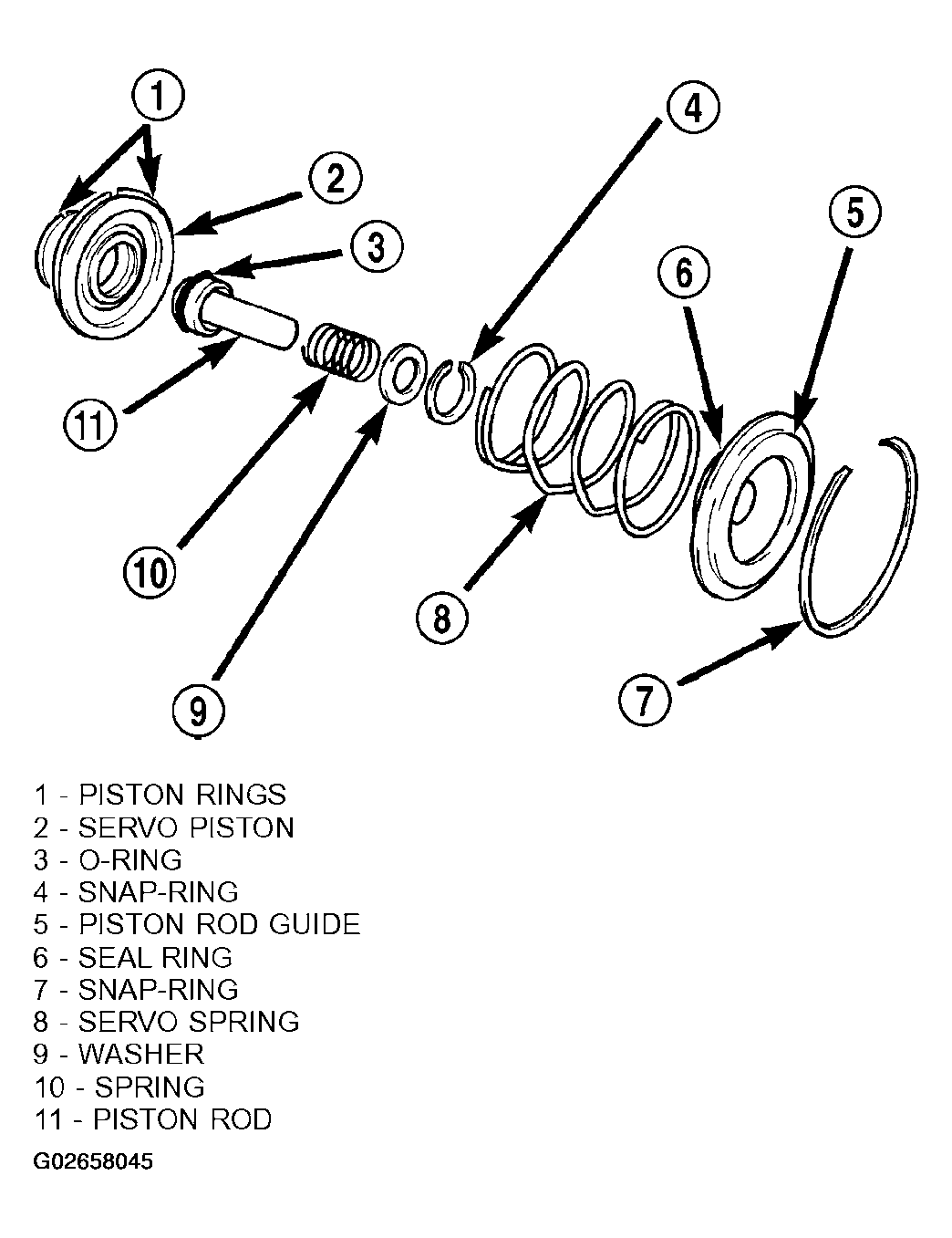

- Install rod in piston. Install spring and washer on rod. Compress spring and install snap-ring (Fig 1).
