Front Clutch: Disassembly

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Remove the waved snap-ring, reaction plate, clutch plates, and clutch discs.
Compress clutch piston retainer and piston springs with Compressor Tool C-3863-A (Fig 1).

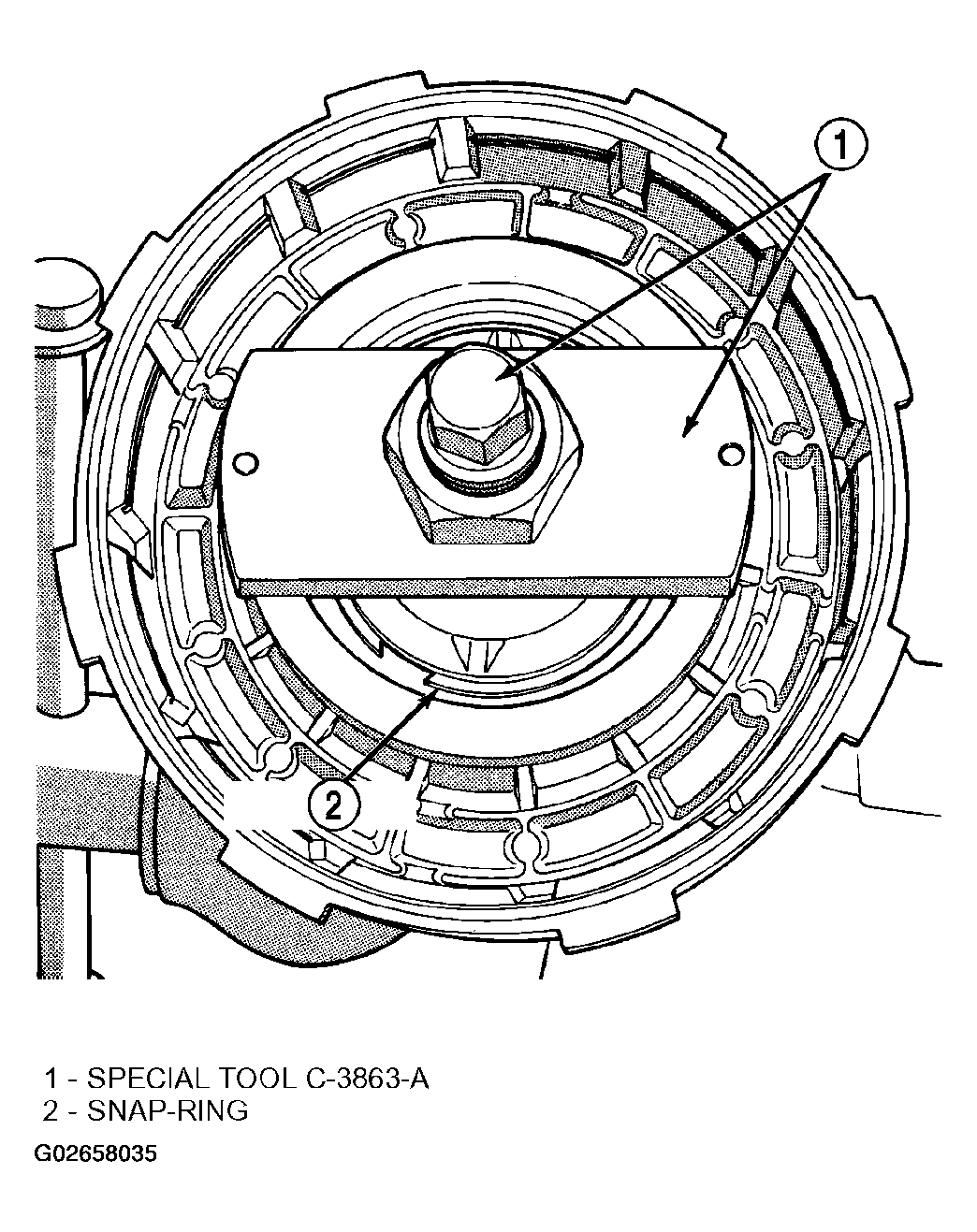

Fig 1: Compressing Clutch Piston Retainer And Piston Springs
Courtesy of DAIMLERCHRYSLER CORP.
Remove retainer snap-ring and remove compressor tool.
Remove clutch piston springs (Fig 2). Note position of piston springs for assembly reference.

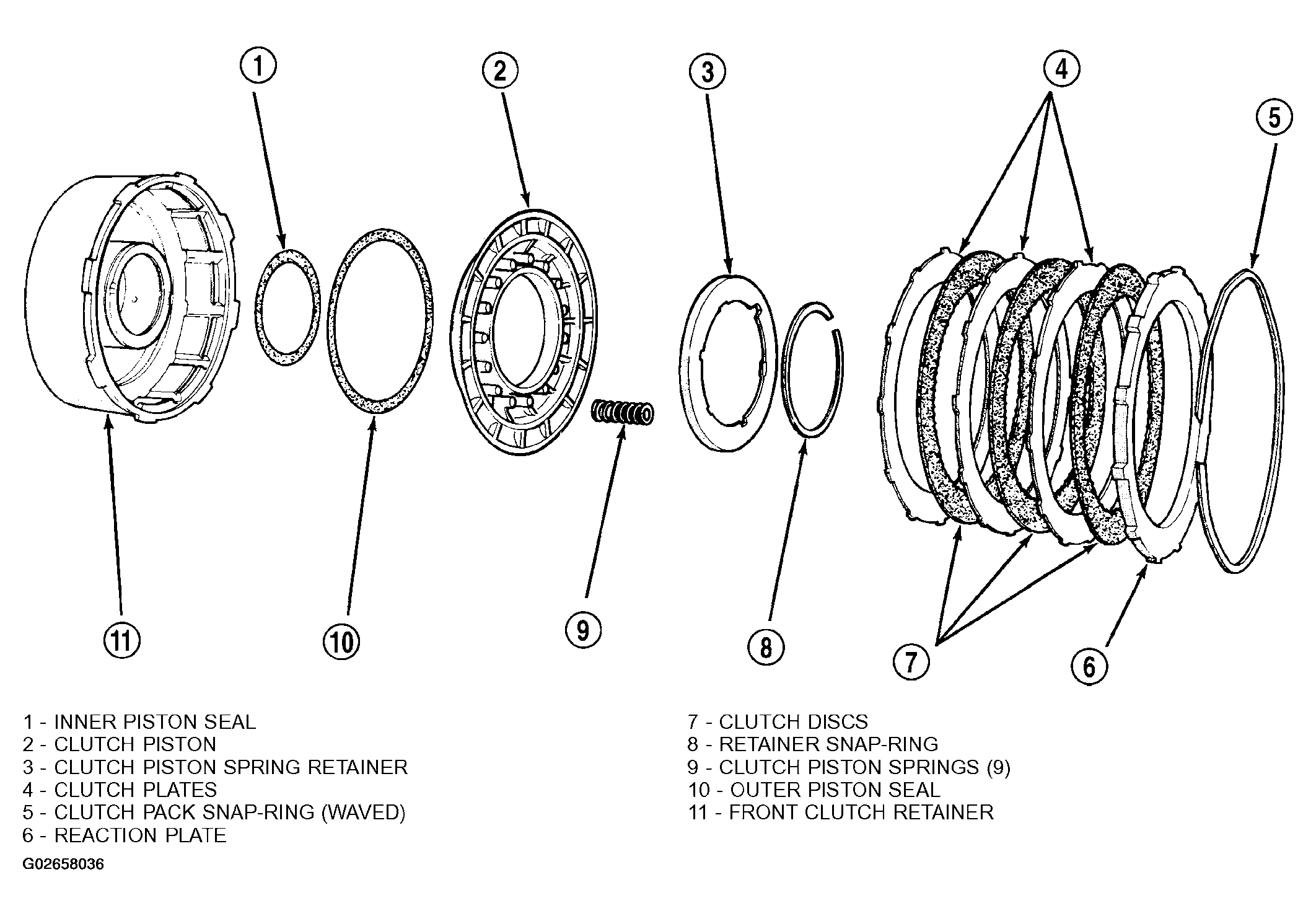

Fig 2: Identifying Front Clutch Components
Courtesy of DAIMLERCHRYSLER CORP.
Remove clutch piston from retainer with a twisting motion.
Remove and discard clutch piston inner and outer seals.
Assemble Tool Handle C-4171 and Bushing Remover SP-3629 (Fig 3).

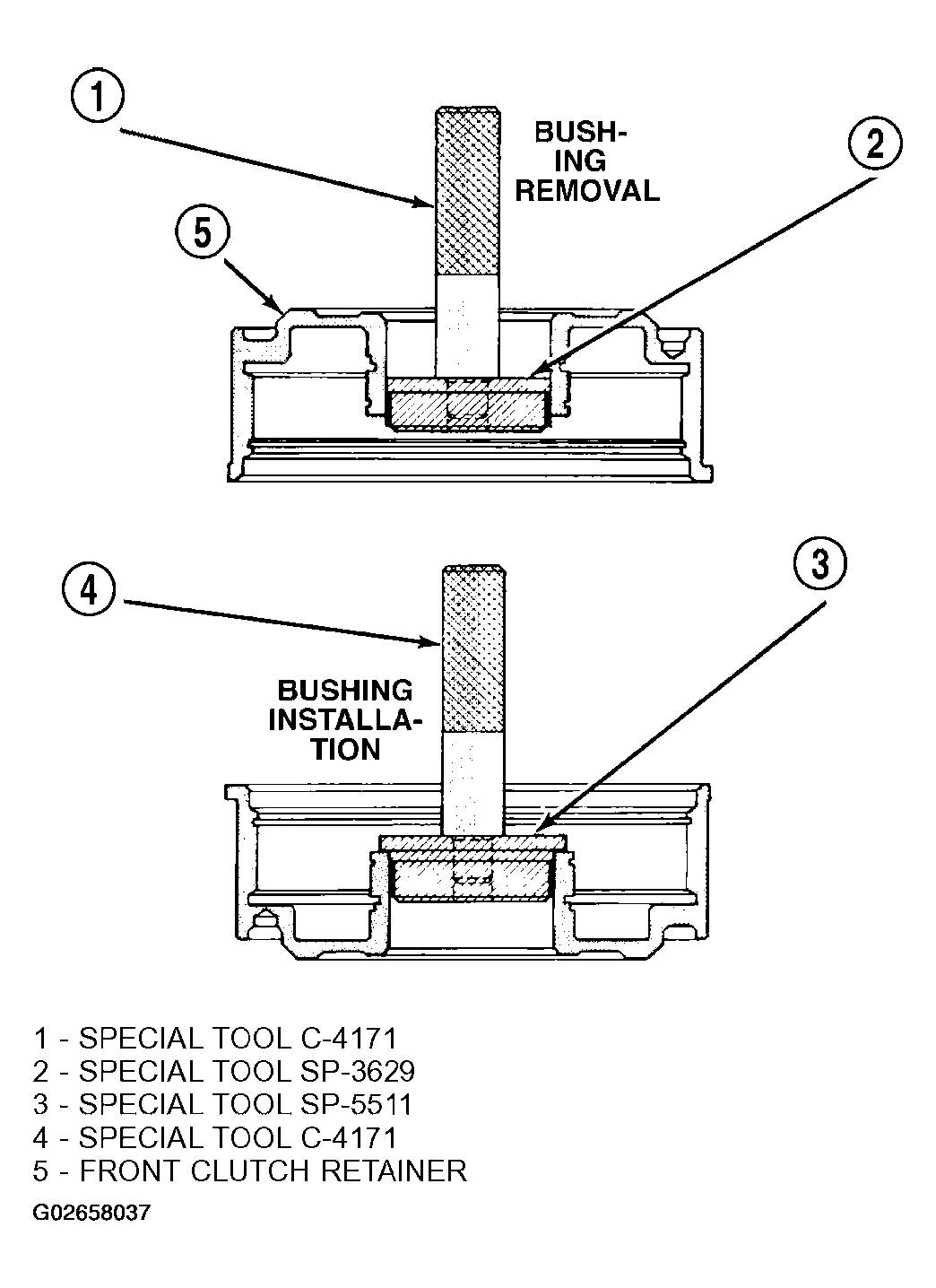

Fig 3: Identifying Front Clutch Retainer Bushing Replacement Tools
Courtesy of DAIMLERCHRYSLER CORP.
Insert remover tool in bushing and drive bushing straight out of clutch retainer.
