Extension Housing Seal: Installation
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Place seal in position on overdrive housing.

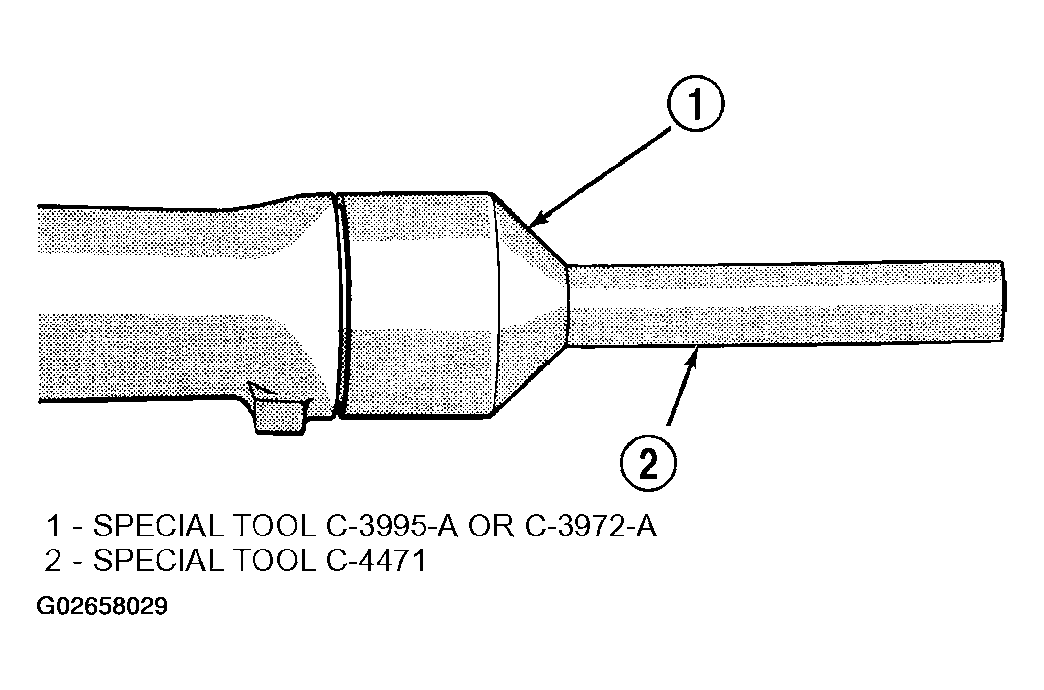

- Drive seal into overdrive housing with Seal Installer C-3995-A (Fig 1).
- Carefully guide propeller shaft slip yoke into housing and onto output shaft splines. Align marks made at removal and connect propeller shaft to rear axle pinion yoke.
