Extension Housing Bushing: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove extension housing yoke seal.
  2. Insert Remover 6957 into the extension housing. Tighten tool to bushing and remove bushing (Fig 1).

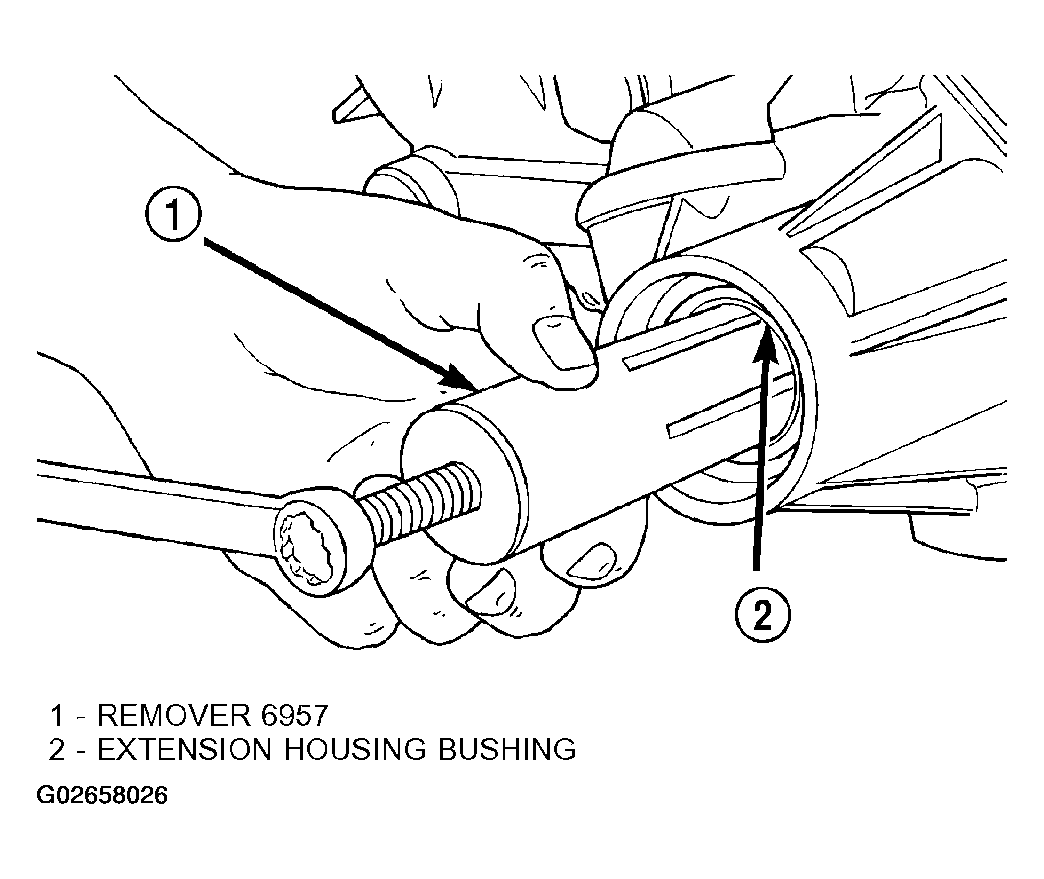

    Fig 1: Inserting Remover 6957 Into Extension Housing
    G02658026Courtesy of DAIMLERCHRYSLER CORP.
