Extension Housing Bushing: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align bushing oil hole with oil slot in extension housing.
  2. Tap bushing into place with Installer 6951 and Handle C-4171.
  3. Install new oil seal in housing using Seal Installer C-3995-A (Fig 1).

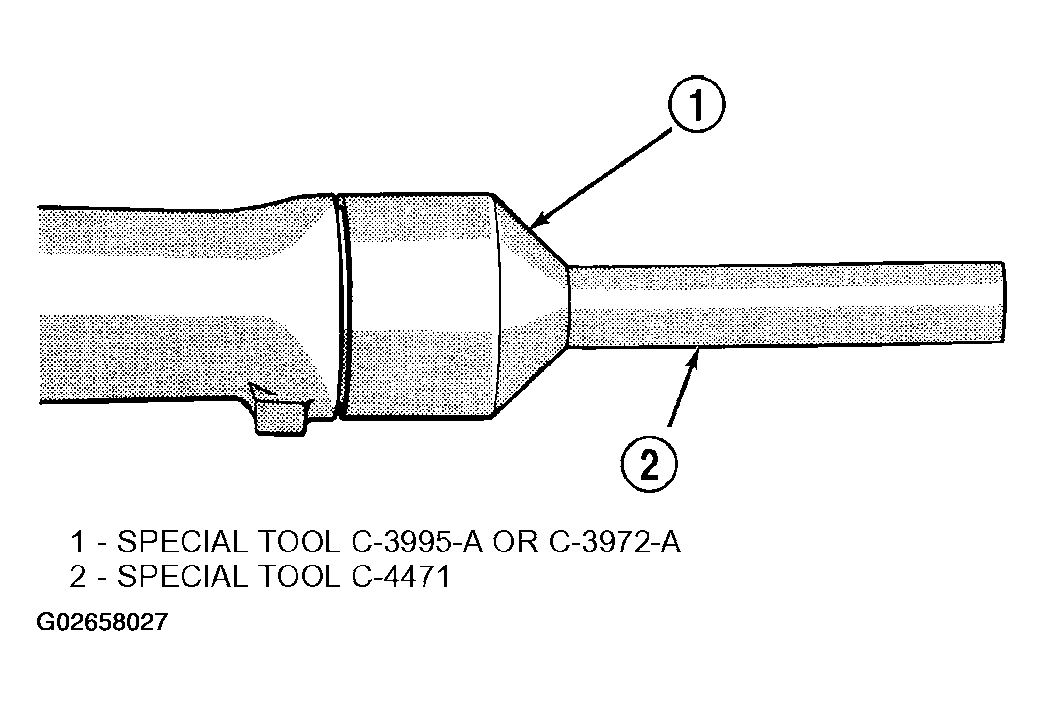

    Fig 1: Identifying Special Tools
    G02658027Courtesy of DAIMLERCHRYSLER CORP.
