Brake Transmission Shift Interlock System: Description

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The Brake Transmission Shifter Interlock (BTSI) (Fig 1), is a solenoid operated system. It consists of a solenoid permanently mounted on the gearshift cable.

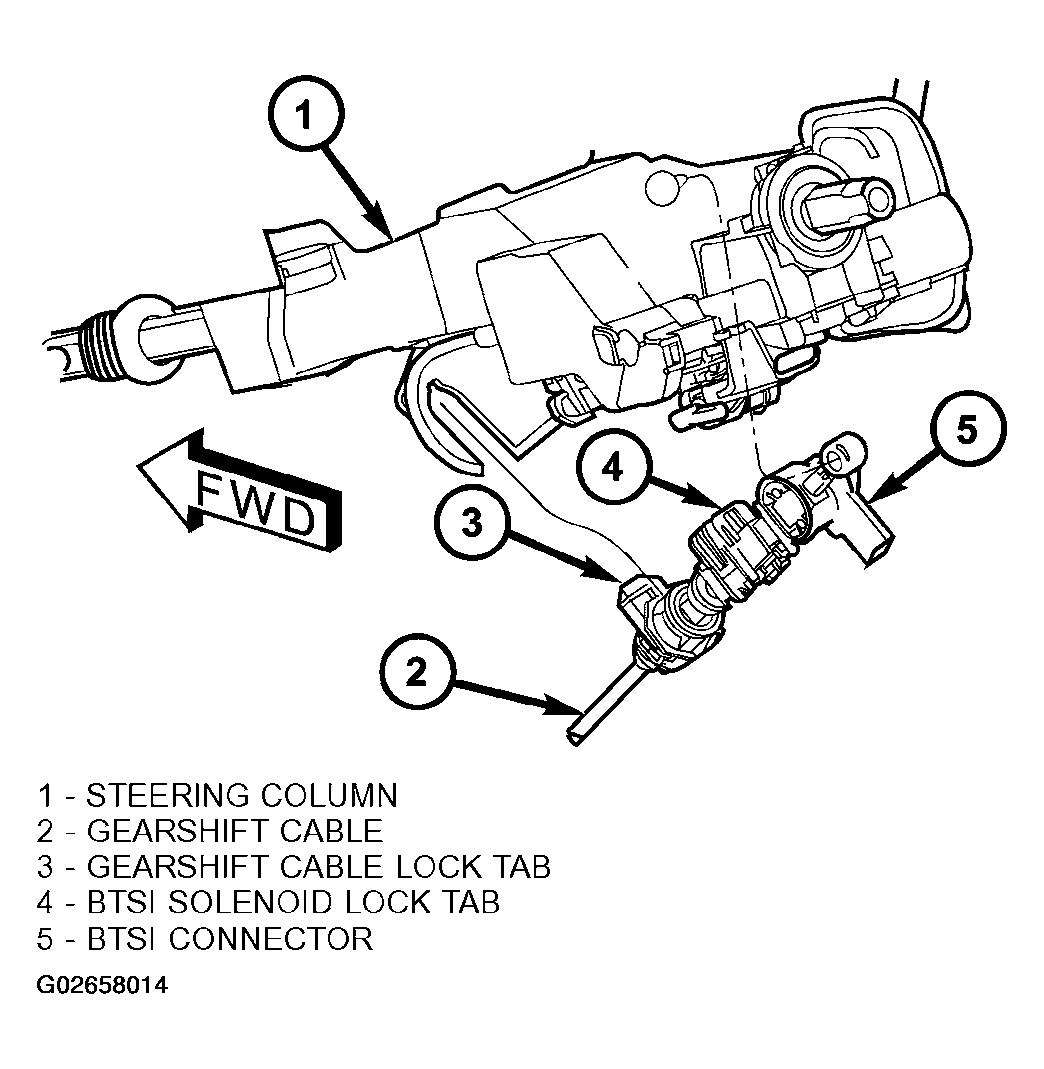

Fig 1: Locating Brake Transmission Interlock Mechanism
G02658014Courtesy of DAIMLERCHRYSLER CORP.
