Adjustment Procedure
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the steering column trim as necessary for access to the brake transmission shift interlock.
- Shift the transmission into the PARK position.

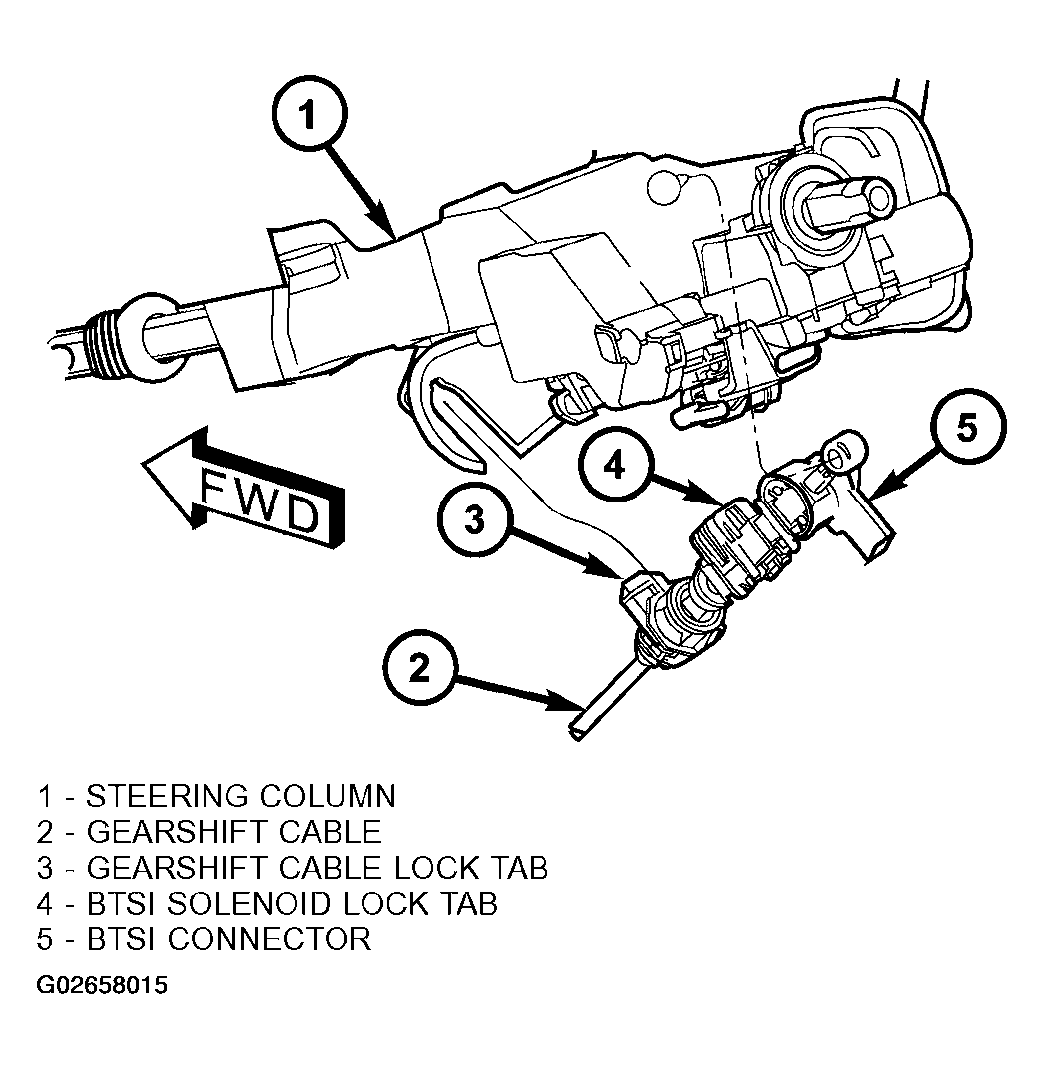

- Pull upward on both the BTSI lock tab and the gearshift cable lock tab (Fig 1).
- Verify that the shift lever is in the PARK position.
- Verify positive engagement of the transmission park lock by attempting to rotate the propeller shaft. The shaft will not rotate when the park lock is engaged.
- Turn ignition switch to LOCK position. Be sure ignition key cylinder is in the LOCK position. Cable will not adjust correctly in any other position.
- Ensure that the cable is free to self-adjust by pushing cable rearward and releasing.
- Push the gearshift cable lock tab down until it snaps in place.
- Locate the BTSI alignment hole in the bottom of the BTSI mechanism between the BTSI lock tab and the BTSI connector.
- Move the BTSI assembly up or down on the gearshift cable until an appropriate size drill bit can be inserted into the alignment hole and through the assembly.
- Push the BTSI lock tab down until it snaps into place and remove the drill bit.
- Install any steering column trim previously removed.
