Low/Reverse (Rear) Band

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The low/reverse band, or "rear", band (Fig 1) is similar in appearance and operation to the front band. The rear band is also a single-wrap design (the band does not completely encompass/wrap the drum that it holds).

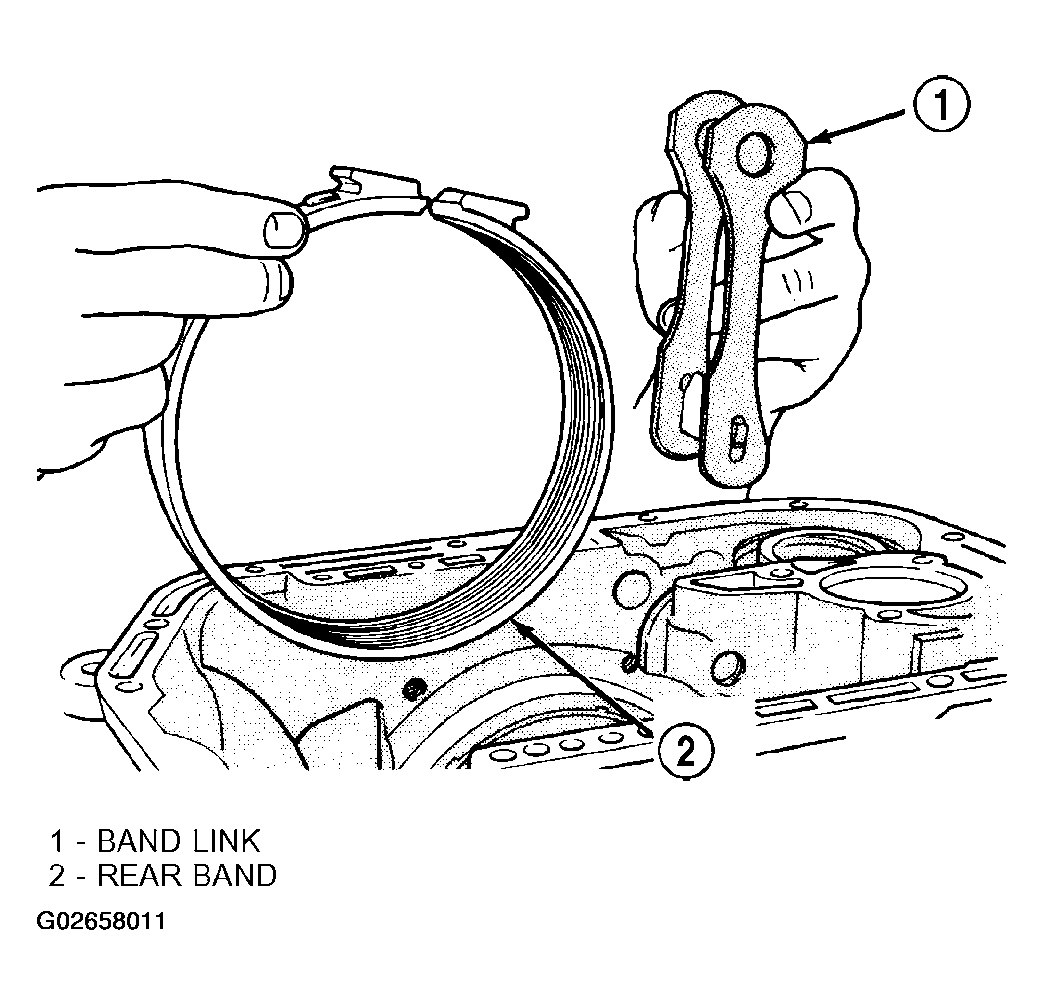

Fig 1: Locating Rear Band And Link
G02658011Courtesy of DAIMLERCHRYSLER CORP.
