Neutral POWERFLOW

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

With the gear selector in the NEUTRAL position (Fig 1), the power flow of the transmission is essentially the same as in the park position. The only operational difference is that the parking sprag has been disengaged, unlocking the output shaft from the transmission case and allowing it to move freely.

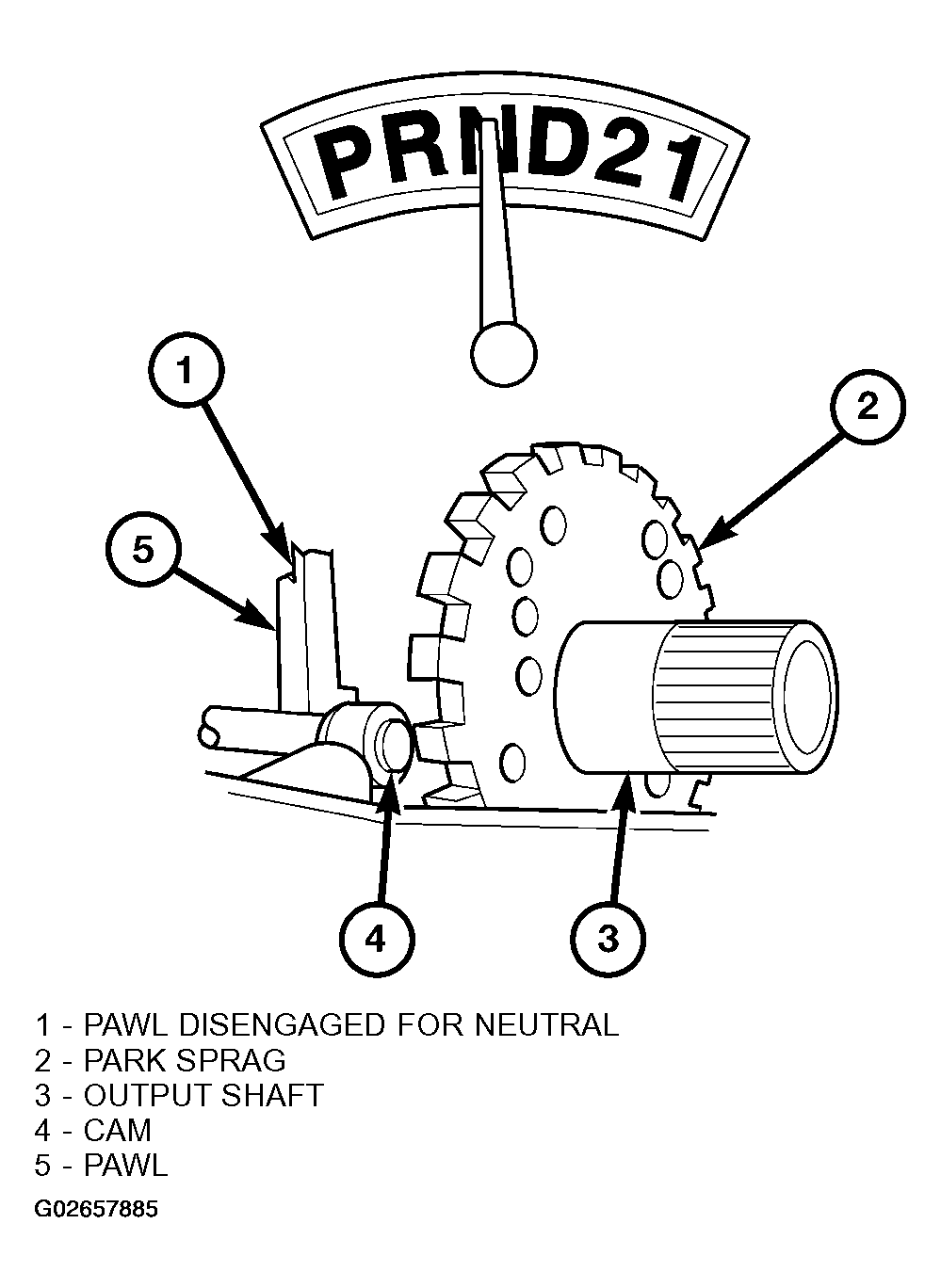

Fig 1: Identifying Neutral Powerflow
G02657885Courtesy of DAIMLERCHRYSLER CORP.
