Overrunning Clutch, Rear Band, And Low-Reverse Drum

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Install overrunning clutch components.
Position rear band and link in case (Fig 1).

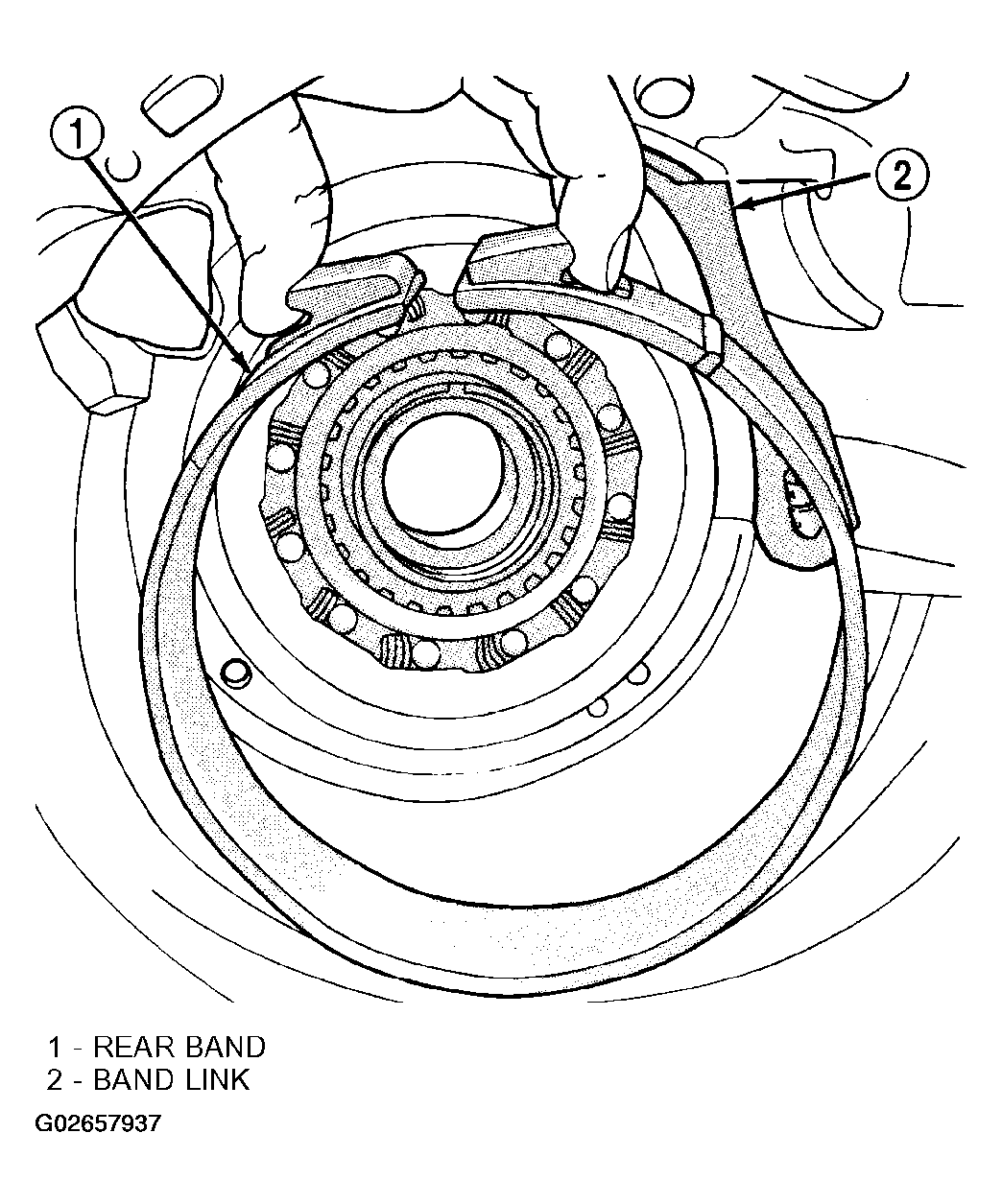

Fig 1: Installing Rear Band And Link
Courtesy of DAIMLERCHRYSLER CORP.
Install low-reverse drum (Fig 2). Slide drum through rear band, onto piston retainer hub and into engagement with overrunning clutch and race.

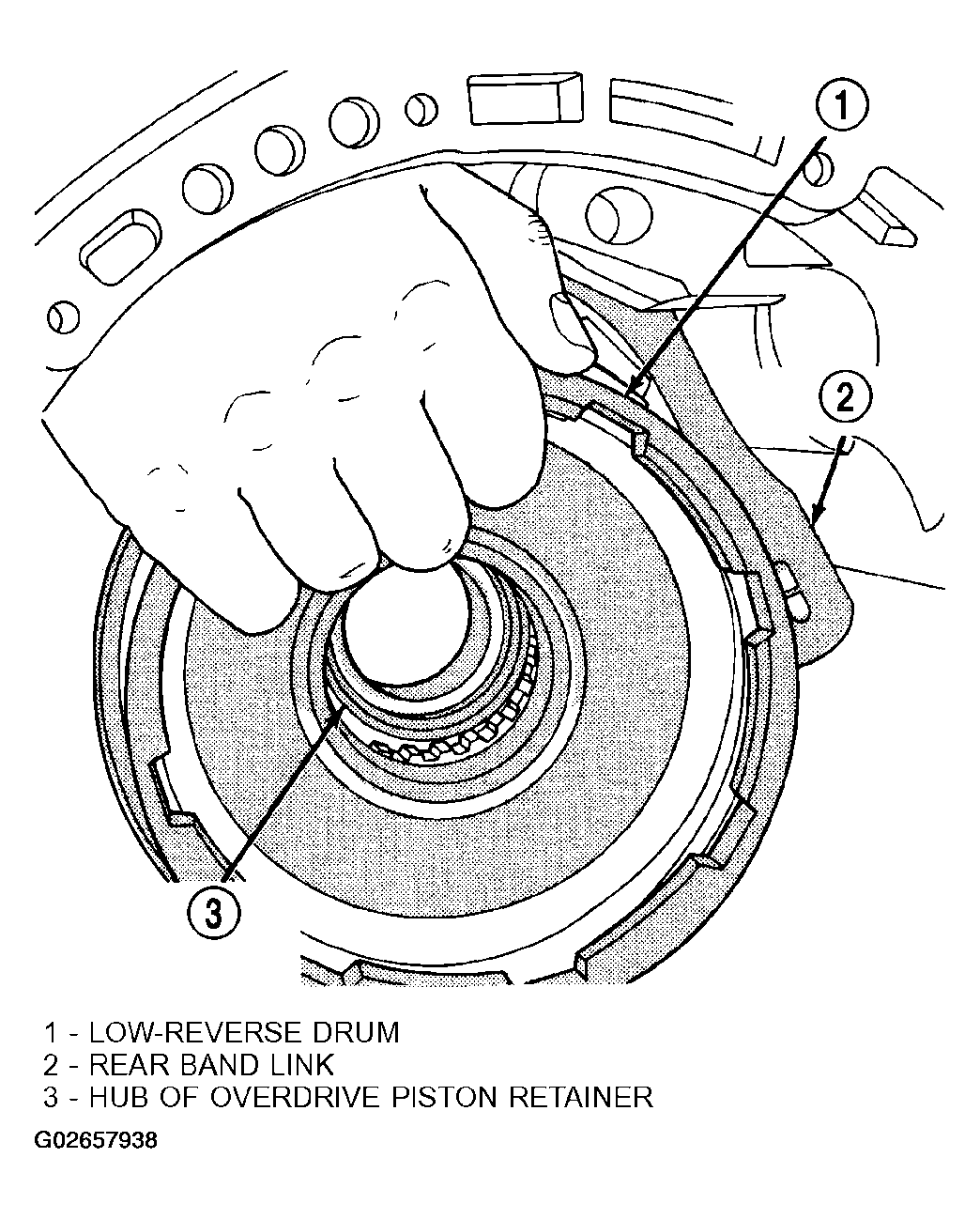

Fig 2: Installing Low-Reverse Drum
Courtesy of DAIMLERCHRYSLER CORP.
Install thrust washer in low-reverse drum spot-face (Fig 3). Use petroleum jelly to hold washer in place.

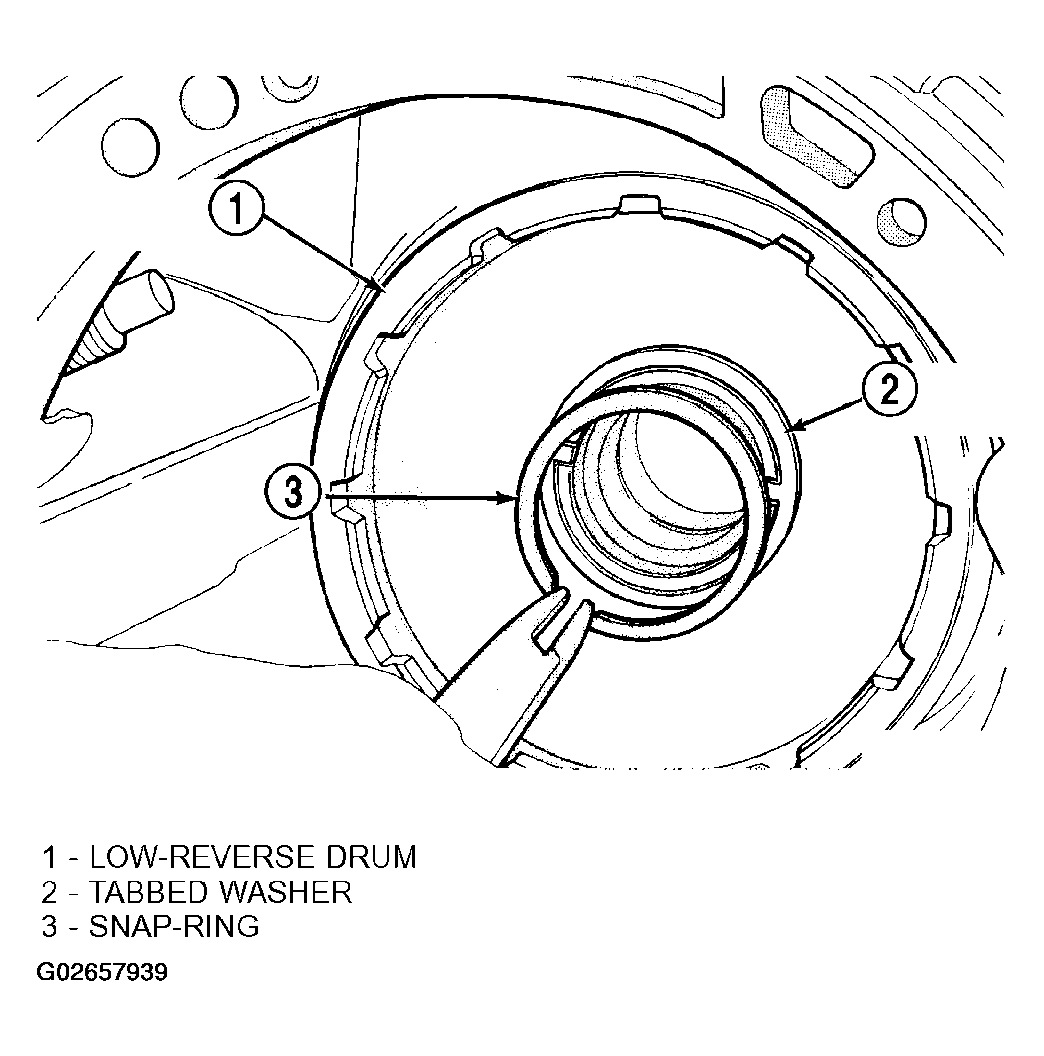

Fig 3: Installing Low-Reverse Drum Snap-Ring
Courtesy of DAIMLERCHRYSLER CORP.
Install snap-ring that secures low-reverse drum to piston retainer hub (Fig 3).
Insert band reaction pin part way into case and band link (Fig 4).

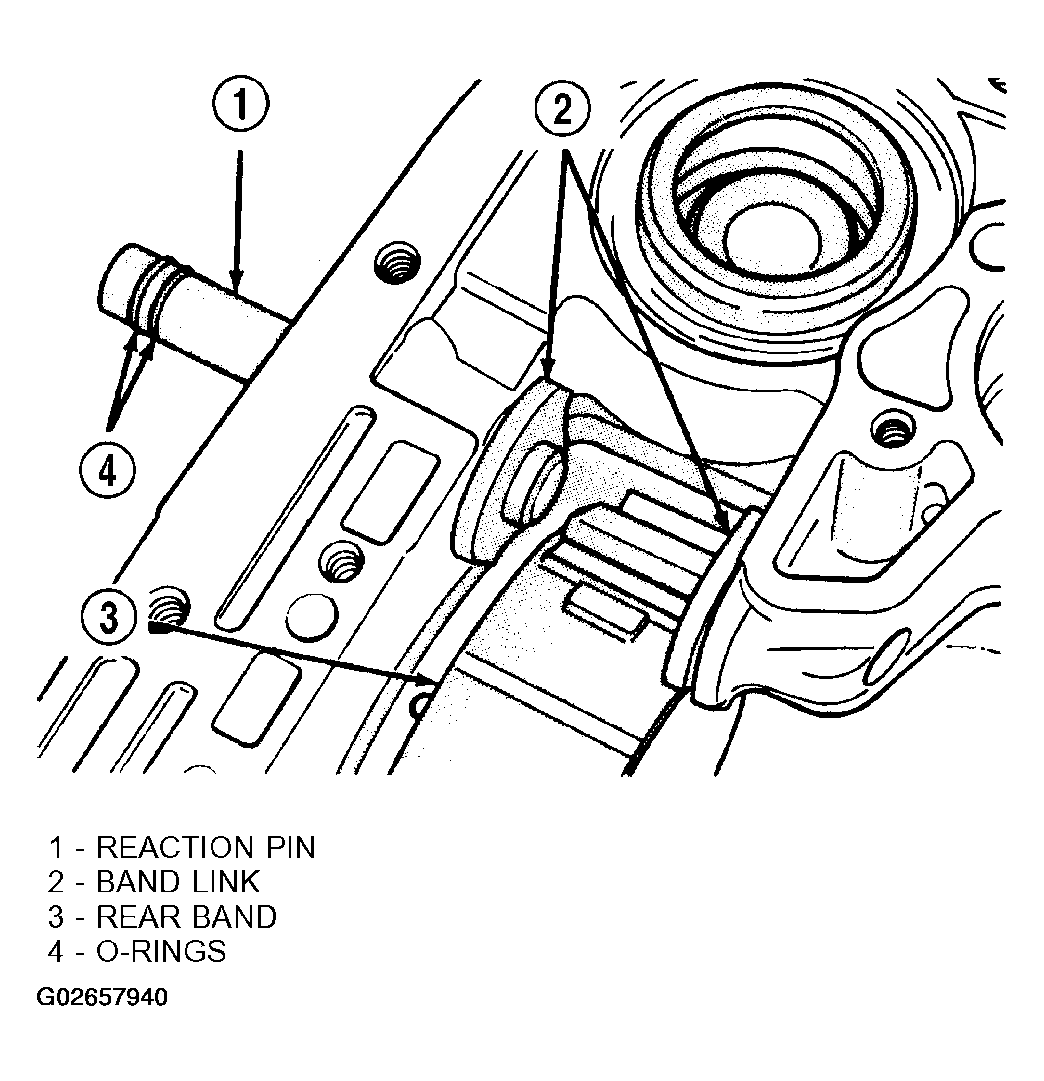

Fig 4: Installing Rear Band Reaction Pin
Courtesy of DAIMLERCHRYSLER CORP.
Install rear band adjusting lever, reaction lever, and strut (Fig 5). Be sure levers and strut are aligned and engaged before seating band reaction pin in case.

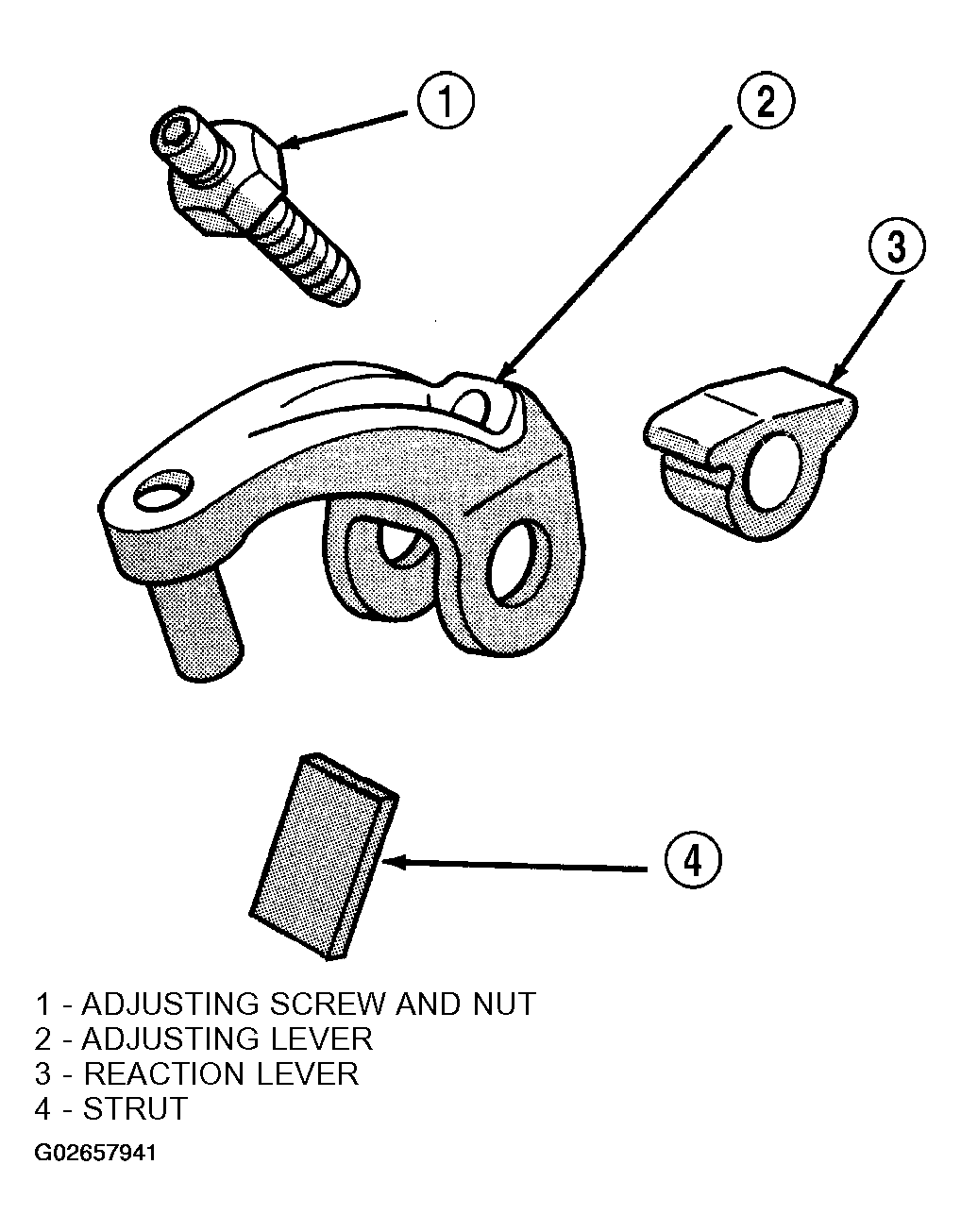

Fig 5: Identifying Rear Band Levers And Strut
Courtesy of DAIMLERCHRYSLER CORP.
