Oil Pump

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

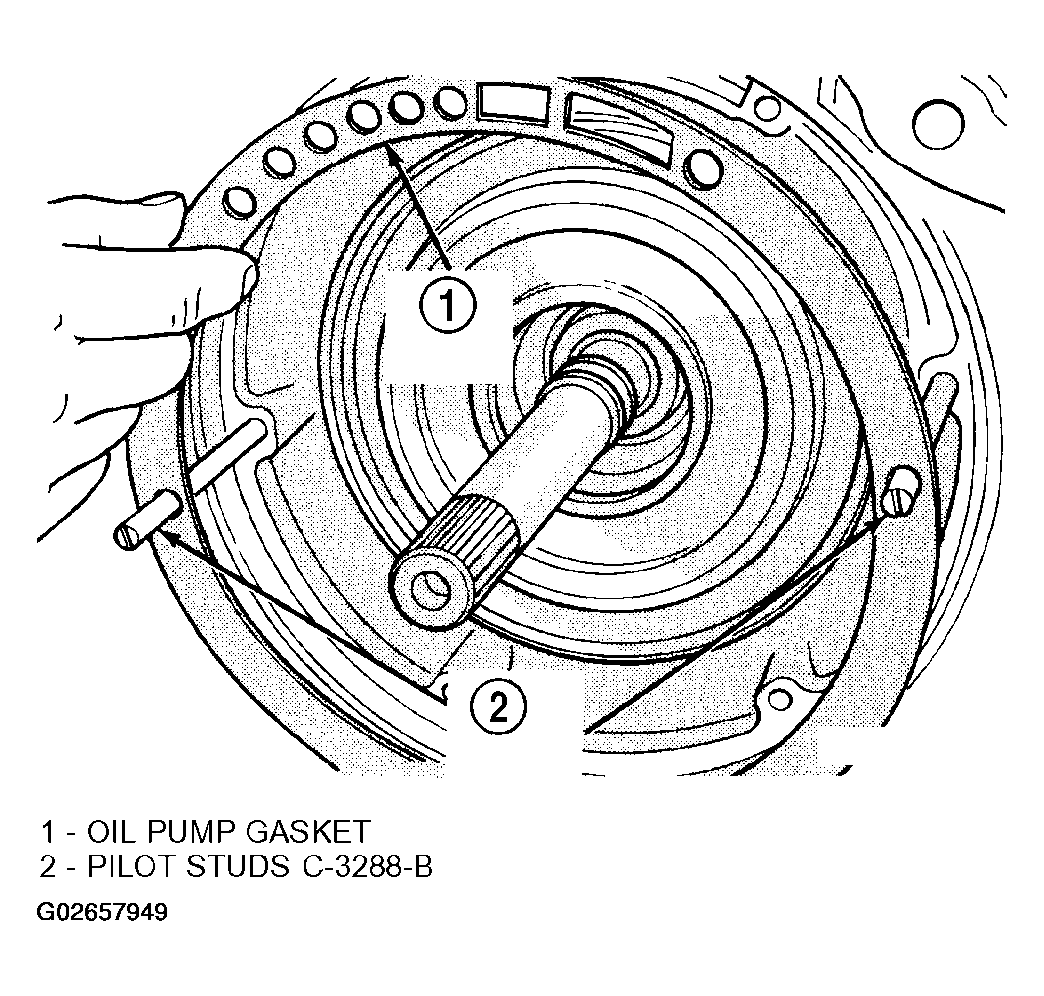

Install oil pump Pilot Studs C-3288-B in case (Fig 1).

Fig 1: Installing Oil Pump Gasket And Pilot Studs
Courtesy of DAIMLERCHRYSLER CORP.
Install new oil pump gasket on pilot studs and seat it in case. Be sure gasket is properly aligned with fluid passages in case (Fig 1).

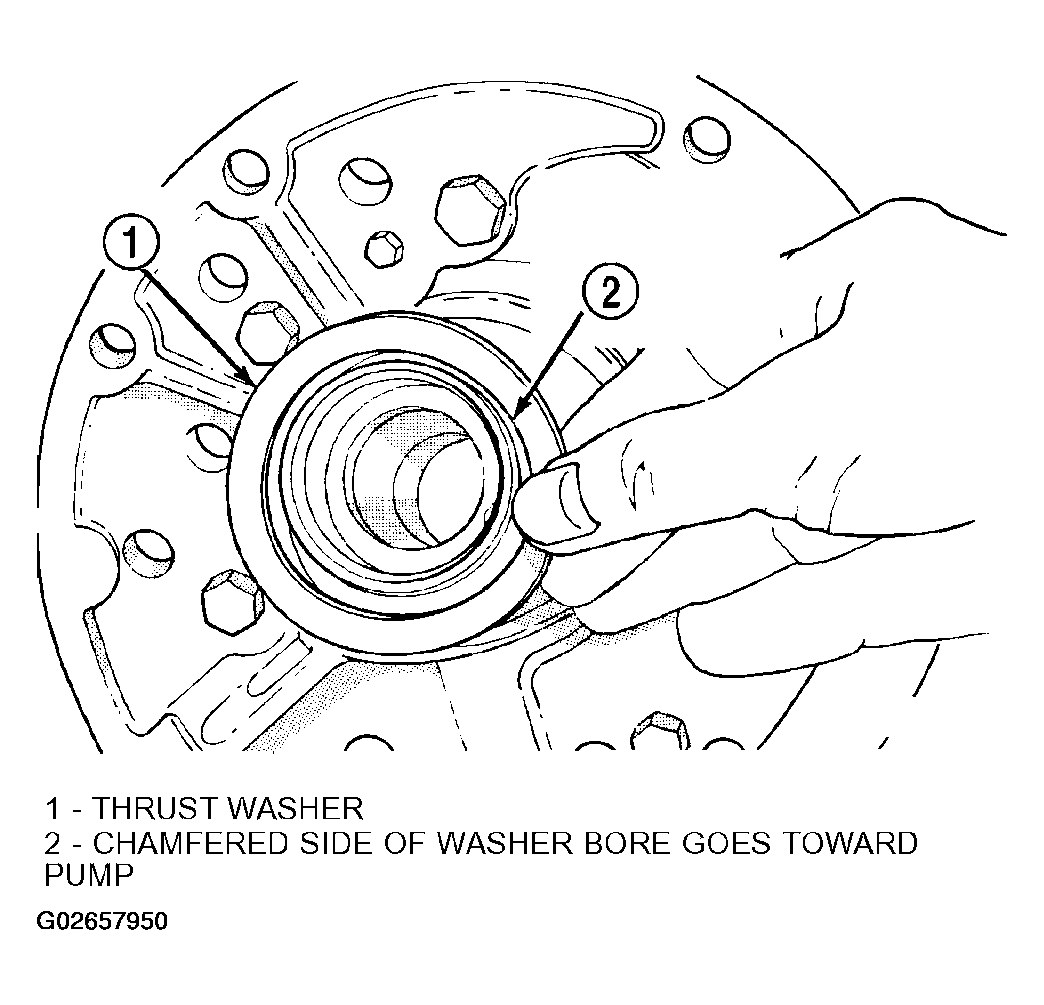

Coat the reaction shaft thrust washer with petroleum jelly to hold it in place. Then install washer over reaction shaft hub and seat it on pump (Fig 2).
CAUTION: The thrust washer bore (I.D.), is chamfered on one side. Make sure the chamfered side is installed so it faces the pump.

Fig 2: Installing Reaction Shaft Thrust Washer
Courtesy of DAIMLERCHRYSLER CORP.

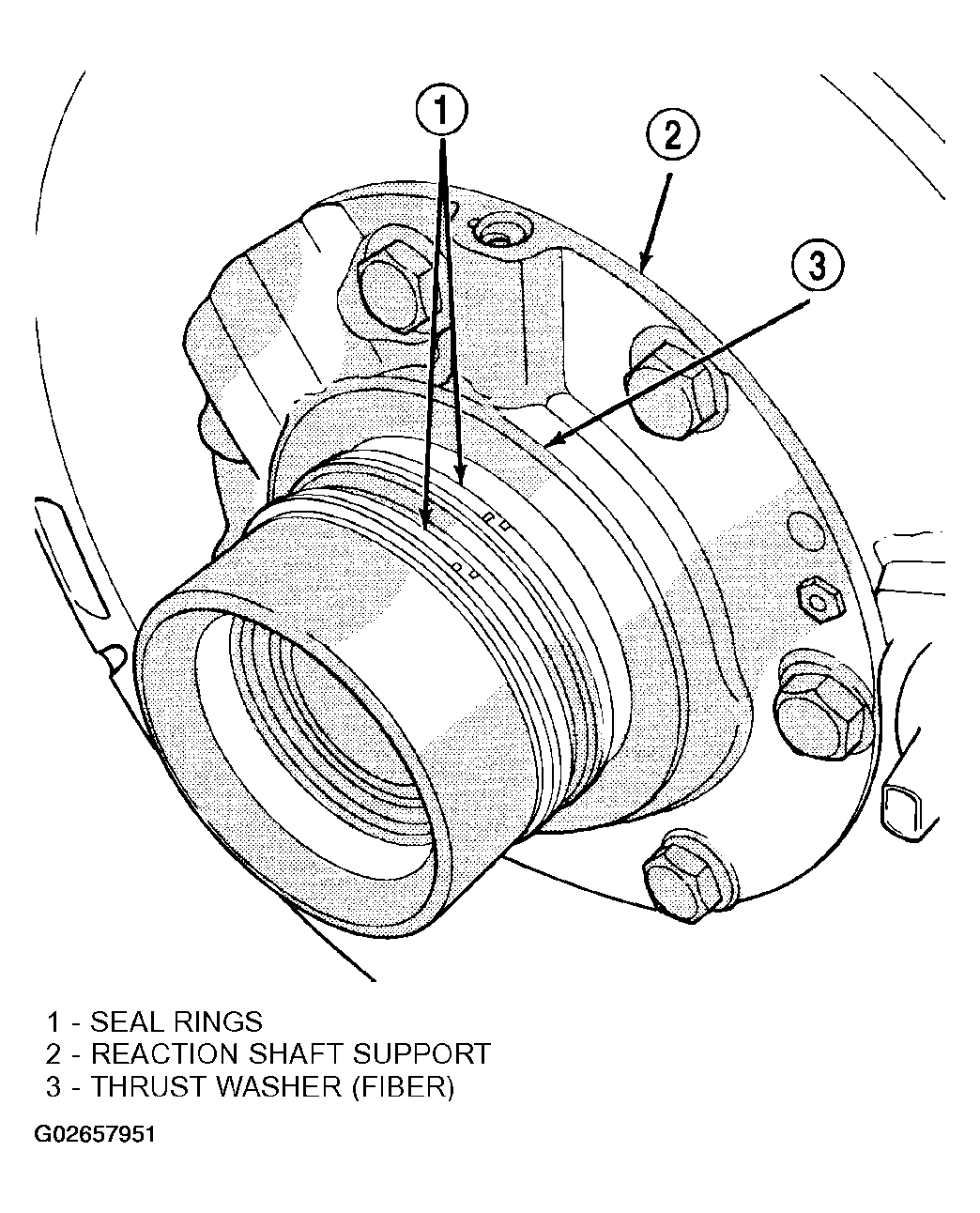

Check seal rings on reaction shaft support. Be sure rings are hooked together correctly. Also be sure fiber thrust washer is in position (Fig 3). Use extra petroleum jelly to hold washer in place if necessary.

Fig 3: Installing Reaction Shaft Seal Ring And Thrust Washer
Courtesy of DAIMLERCHRYSLER CORP.
Lubricate oil pump seals with petroleum Mopar® ATF +4.

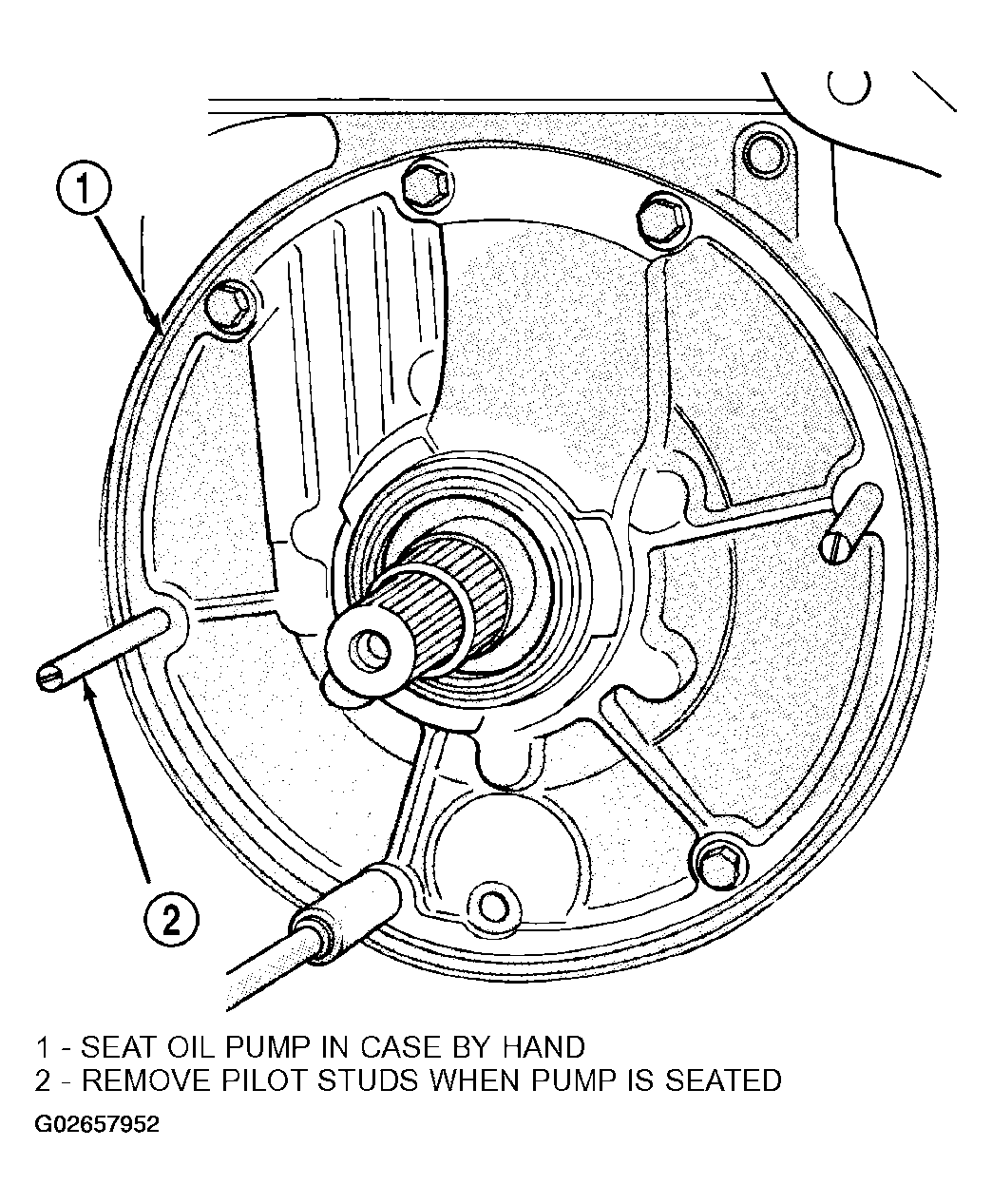

Mount oil pump on pilot studs and slide pump into case opening (Fig 4). Work pump into case by hand. Do not use a mallet or similar tools to seat pump.

Fig 4: Installing Oil Pump
Courtesy of DAIMLERCHRYSLER CORP.
Remove pilot studs and install oil pump bolts. Tighten pump bolts alternately and evenly to fully seat pump in case. Then final-tighten pump bolts to 20 N.m (15 ft. lbs.) torque.
Verify correct installation. Rotate input and intermediate shafts and check for bind. If bind exists, components are either mis-assembled, or not seated. Disassemble and correct as necessary before proceeding.
