Front/Rear Servo

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate rear servo piston seal with Mopar® Door Ease or ATF +4. Lubricate servo bore in case with ATF +4.
Install rear servo piston in case. Position piston at slight angle to bore and insert piston with twisting motion (Fig 1).

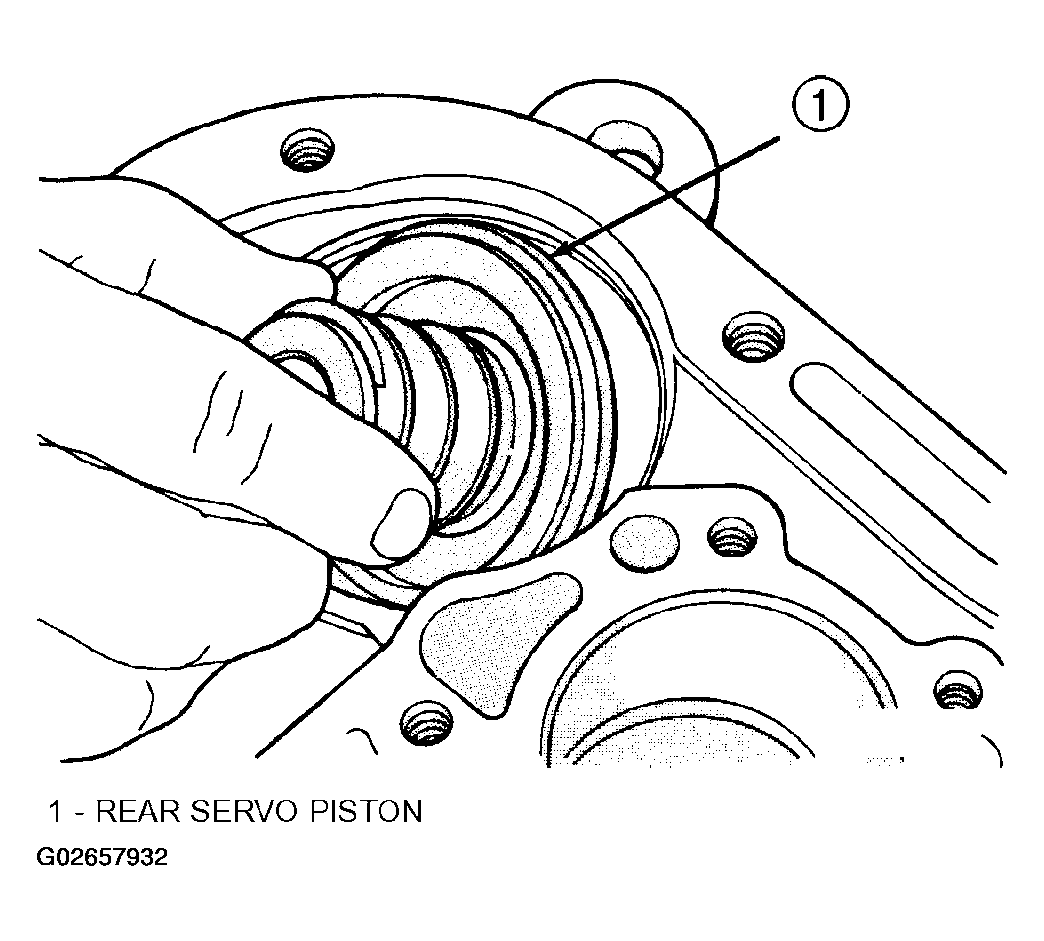

Fig 1: Installing Rear Servo Piston
Courtesy of DAIMLERCHRYSLER CORP.
Install rear servo spring and retainer in case bore (Fig 2). Be sure spring is seated on piston.

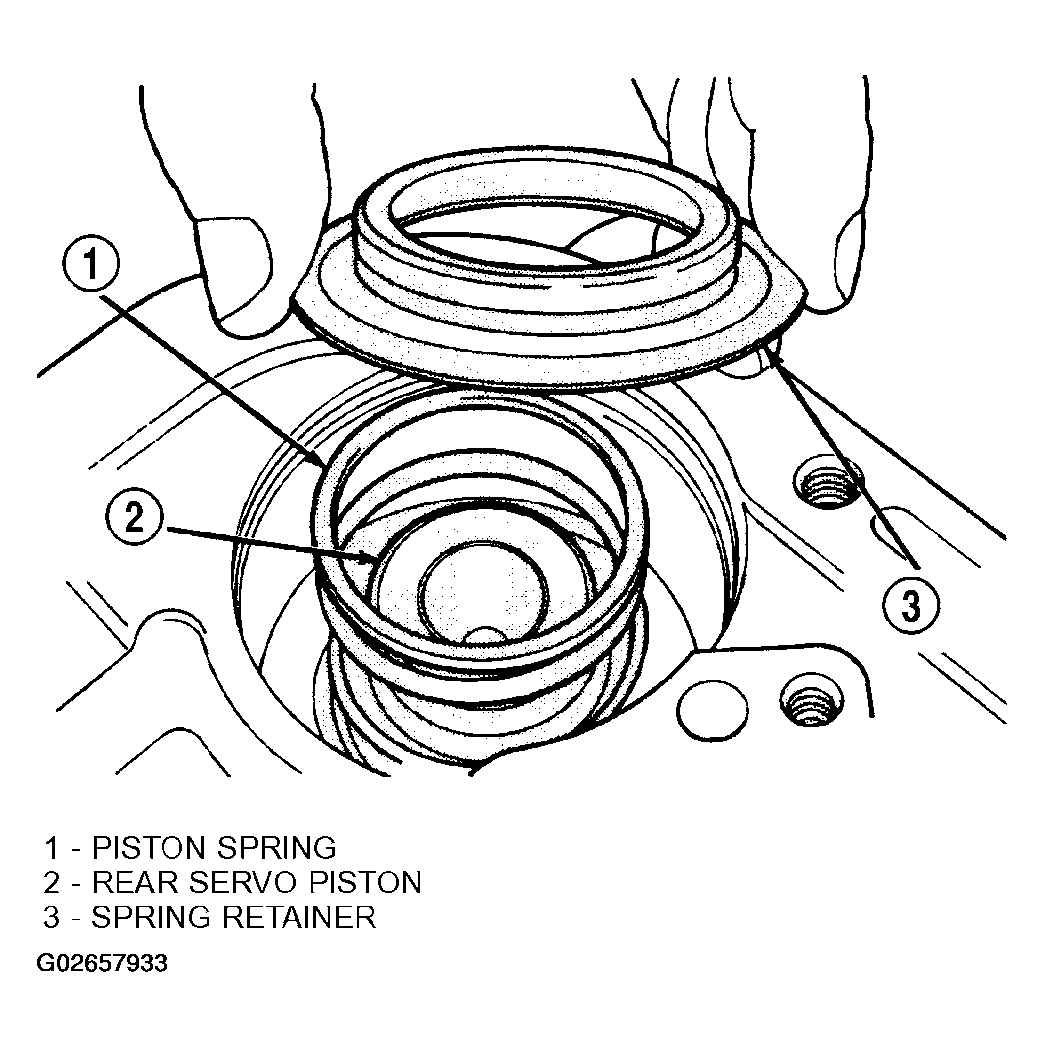

Fig 2: Installing Rear Servo Piston Spring And Retainer
Courtesy of DAIMLERCHRYSLER CORP.
Compress rear servo piston with C-clamp or Valve Spring Compressor C-3422-B and install servo piston snap-ring (Fig 3).

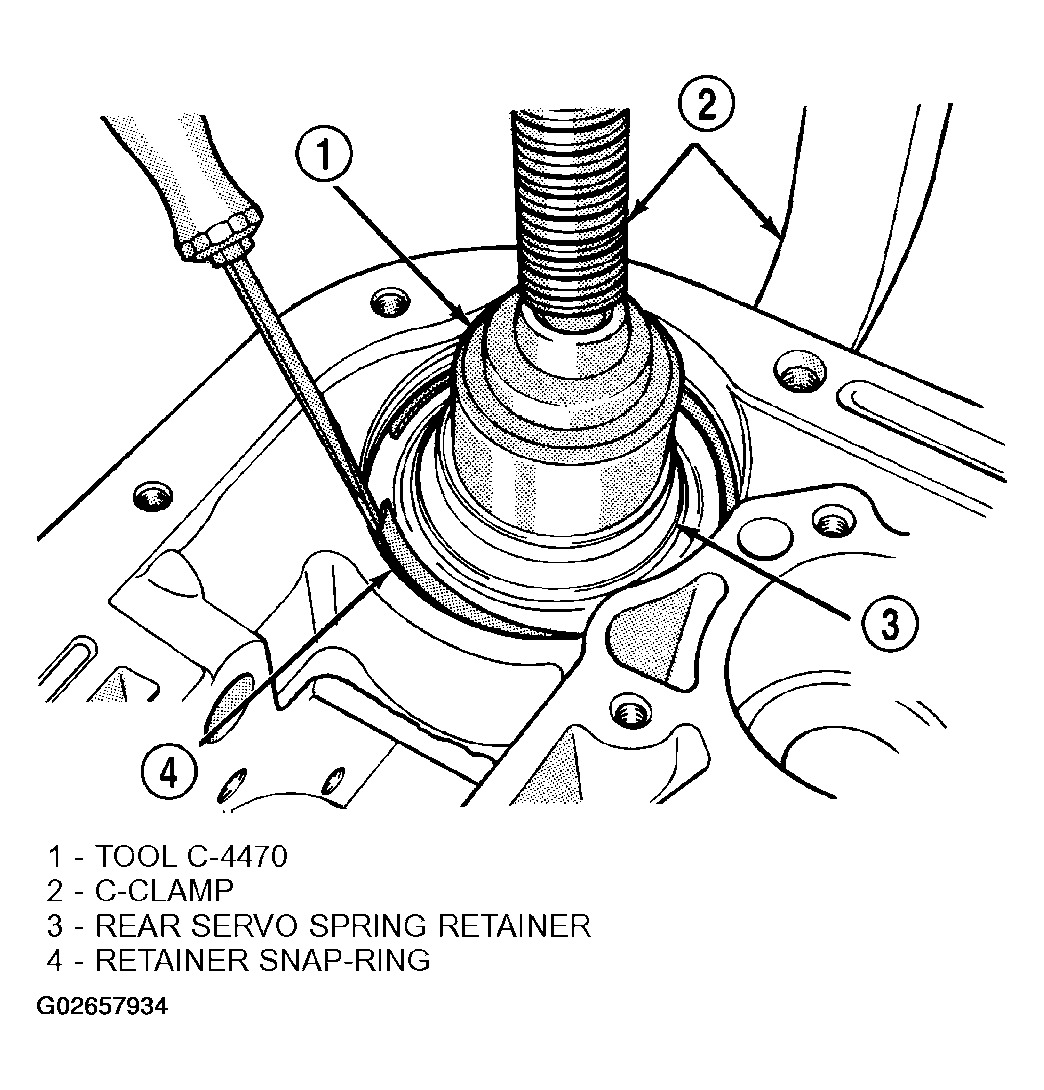

Fig 3: Installing Rear Servo Snap-Ring
Courtesy of DAIMLERCHRYSLER CORP.
Lubricate front servo piston components and servo bore in case with transmission fluid.
Install front servo piston in bore. Carefully "run" small, suitable tool around piston ring to press it back into groove and ease installation (Fig 4). Rotate piston into bore at same time. Rock piston slightly to ease piston ring past snap-ring groove and into bore.

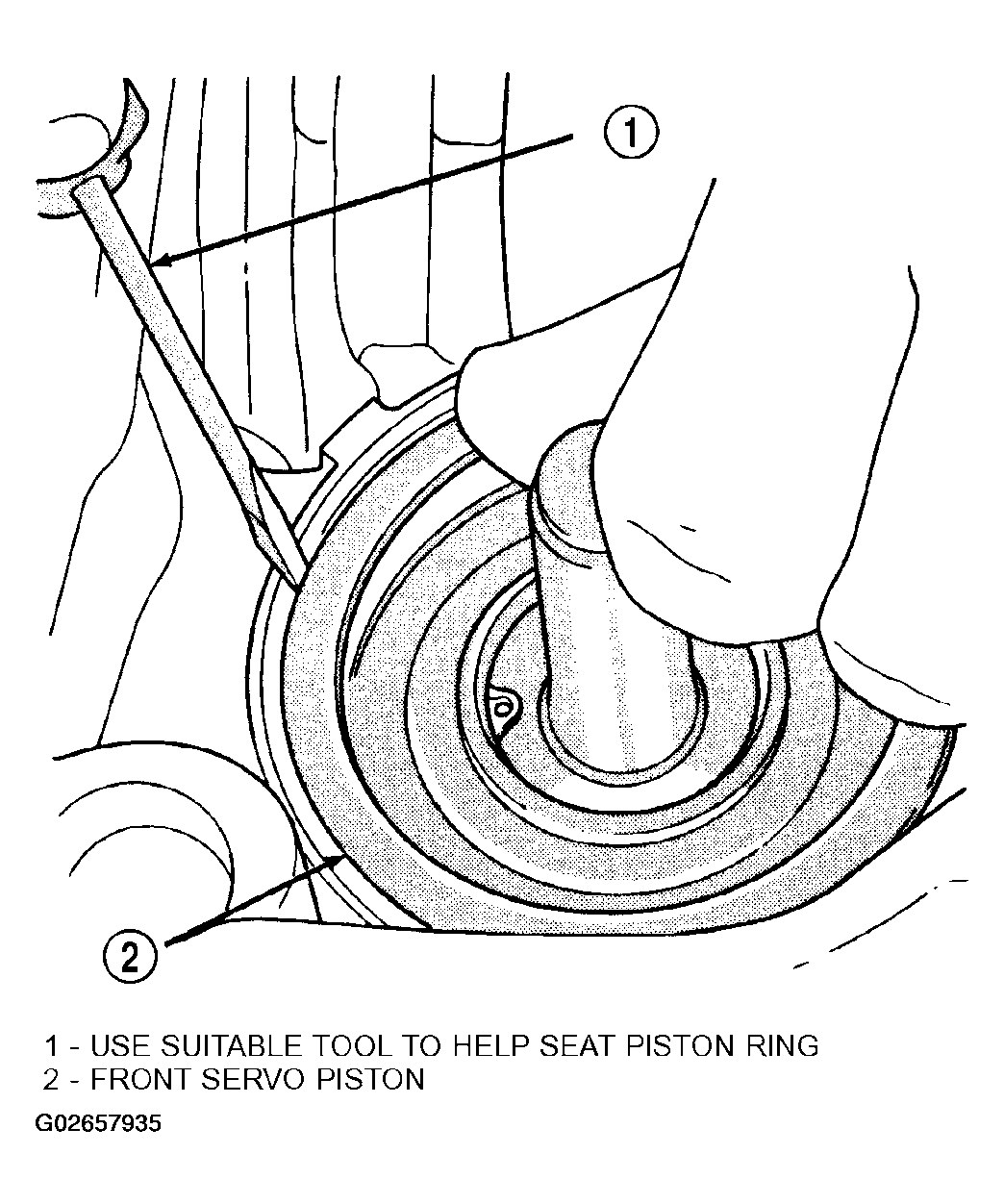

Fig 4: Installing Front Servo Piston
Courtesy of DAIMLERCHRYSLER CORP.
Bottom front servo piston in bore and install servo spring.
Install front servo piston rod guide as follows:
1. Place Tool SP-5560 (or similar size tool) on guide and position C-clamp on tool and case (Fig 5).
2. Slowly compress rod guide while simultaneously easing seal ring into bore with suitable tool.

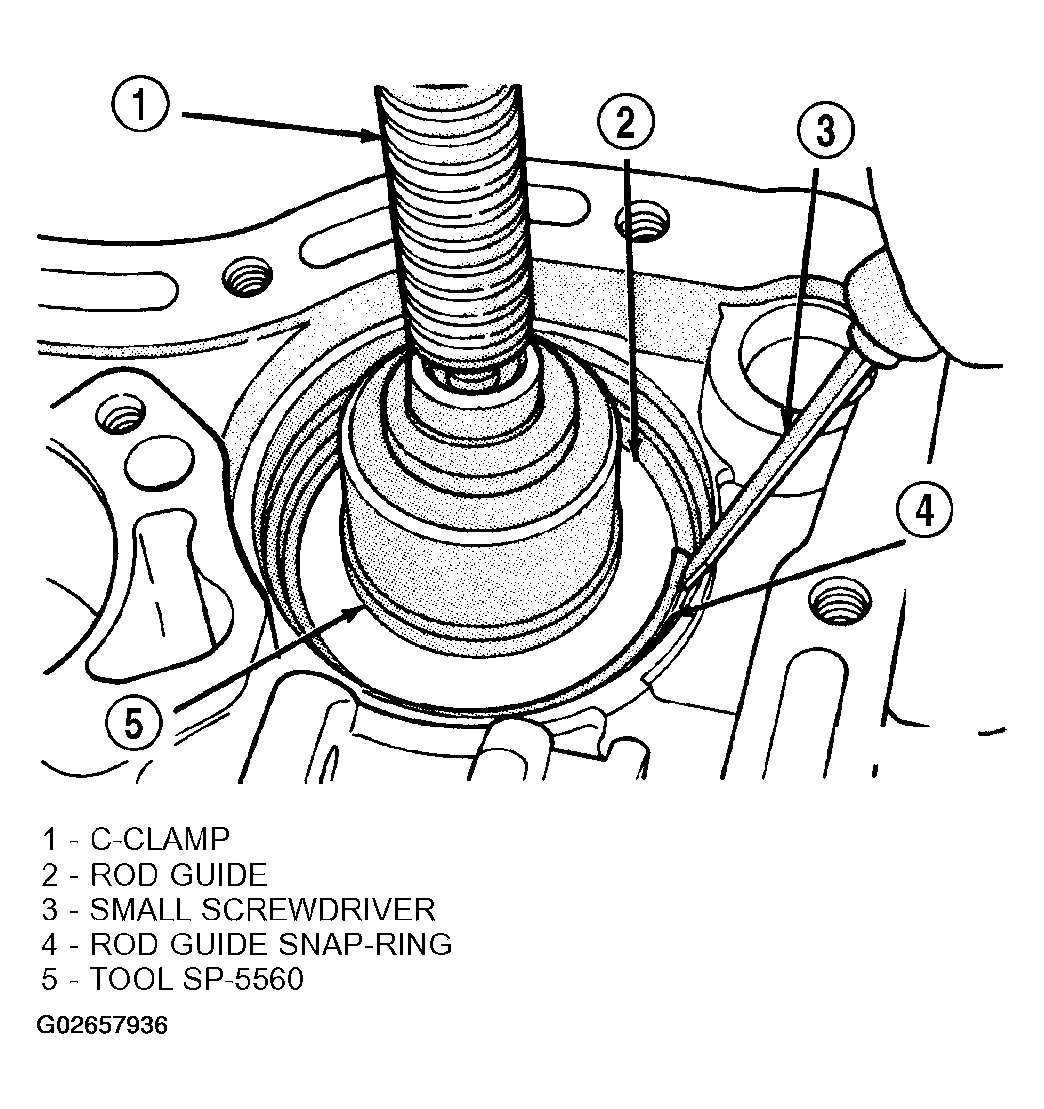

Fig 5: Installing Front Servo Rod Guide And Snap-Ring
Courtesy of DAIMLERCHRYSLER CORP.
Install rod guide snap-ring (Fig 5).
