Accumulator, Valve Body, Oil Pan, And Torque Converter

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install accumulator inner spring, piston and outer spring (Fig 1).

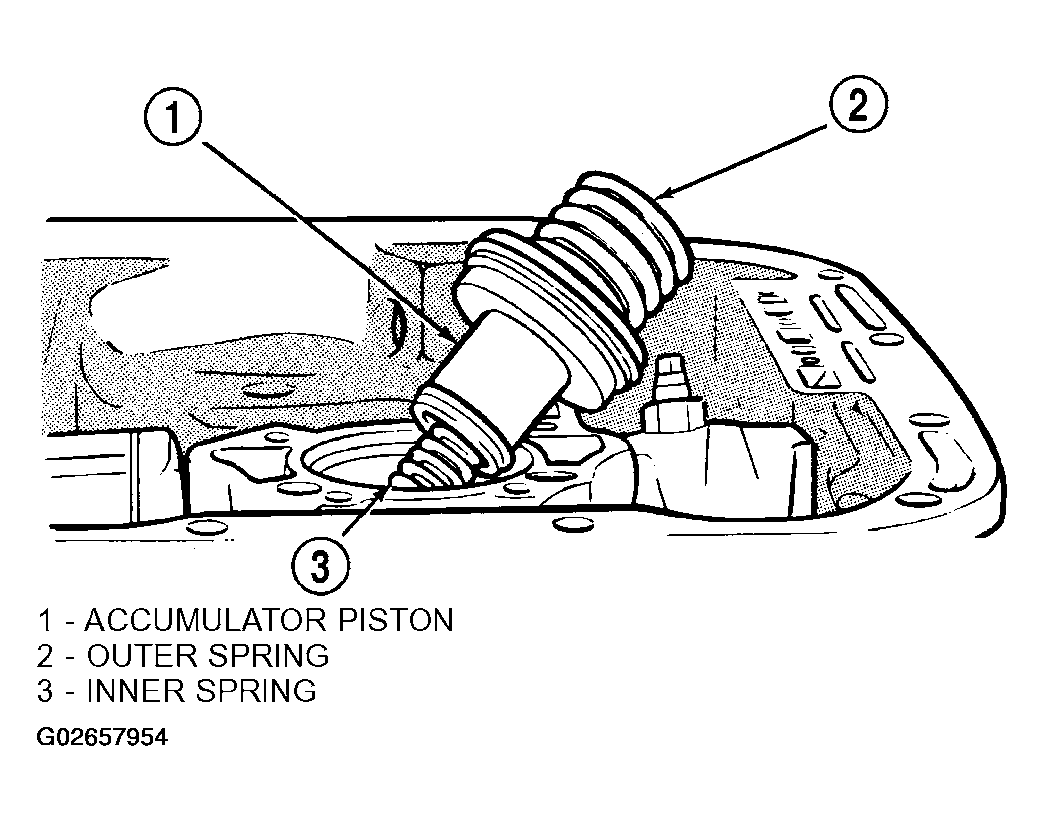

    Fig 1: Installing Accumulator Inner Spring, Piston And Outer Spring
    G02657954Courtesy of DAIMLERCHRYSLER CORP.
  2. Install new valve body manual shaft seal in case (Fig 2). Lubricate seal lip and manual shaft with petroleum jelly. Start seal over shaft and into case. Seat seal with 15/16 inch, deep well socket.

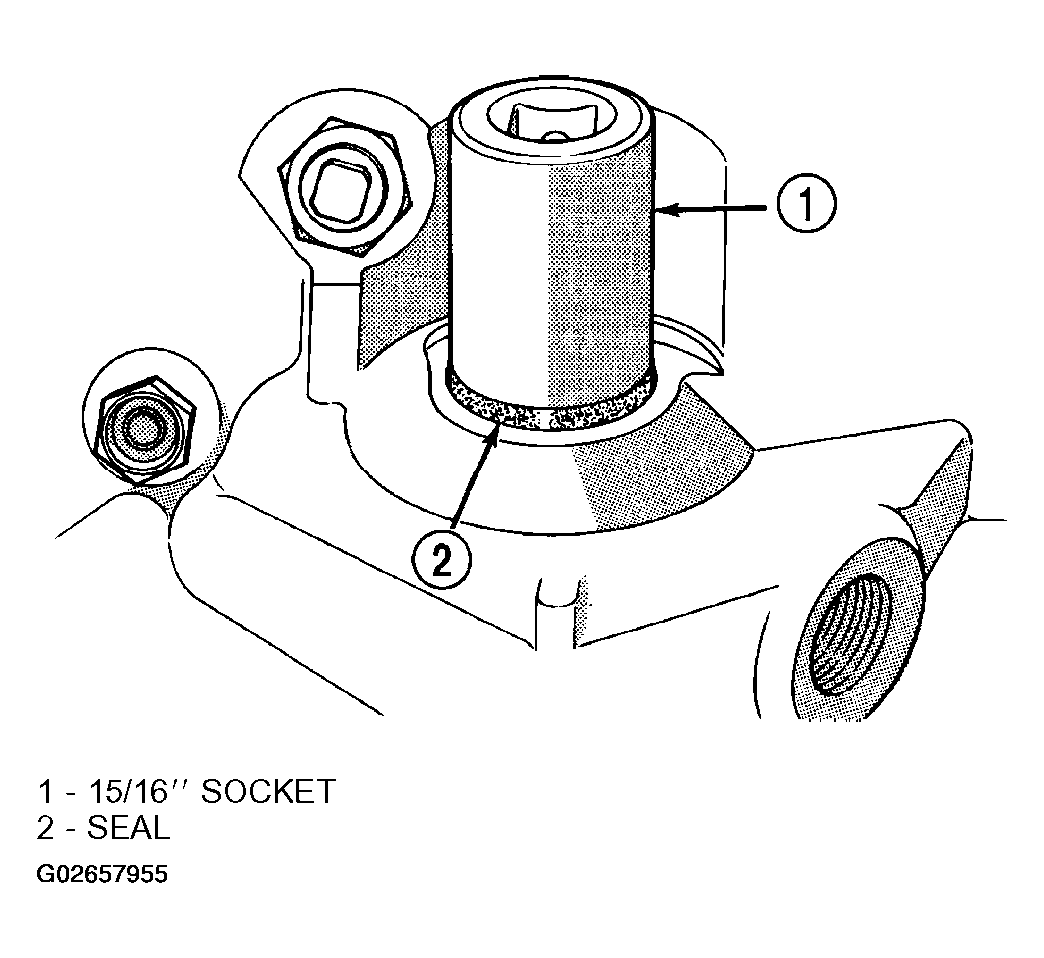

    Fig 2: Installing Manual Lever Shaft Seal
    G02657955Courtesy of DAIMLERCHRYSLER CORP.
  3. Install valve body as follows:
    1. Start park rod into park pawl. If rod will not slide past park pawl, pawl is engaged in park gear. Rotate overdrive output shaft with suitable size 12 point socket; this will free pawl and allow rod to engage.
    2. Align and seat valve body on case. Be sure manual lever shaft and overdrive connector are fully seated in case.
    3. Install and start all valve body attaching bolts by hand. Then tighten bolts evenly, in a diagonal pattern to 12 N.m (105 in. lbs.) torque. Do not overtighten valve body bolts. This could result in distortion and cross leakage after installation.
    CAUTION: It is possible for the park rod to displace into a cavity just above the pawl sprag during installation. Make sure the rod is actually engaged in the pawl and has not displaced into this cavity.
  4. Install new filter on valve body. Tighten filter screws to 4 N.m (35 in. lbs.).
  5. Install the transmission range sensor.
    CAUTION: If the condition of the transmission before the overhaul procedure caused excessive metallic or fiber contamination in the fluid, replace the torque converter. Fluid contamination and transmission failure can result if not done.
  6. Install torque converter. Use C-clamp or metal strap to hold converter in place for installation.
