Switch Valve

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

When the transmission is in Drive Second before the TCC application occurs (Fig 1), the pressure regulator valve is supplying torque converter pressure to the switch valve. The switch valve directs this pressure through the transmission input shaft, into the converter, through the converter, back out between the input shaft and the reaction shaft, and back up to the switch valve. From the switch valve, the fluid pressure is directed to the transmission cooler, and lubrication pressure returns from the cooler to lubricate different portions of the transmission.

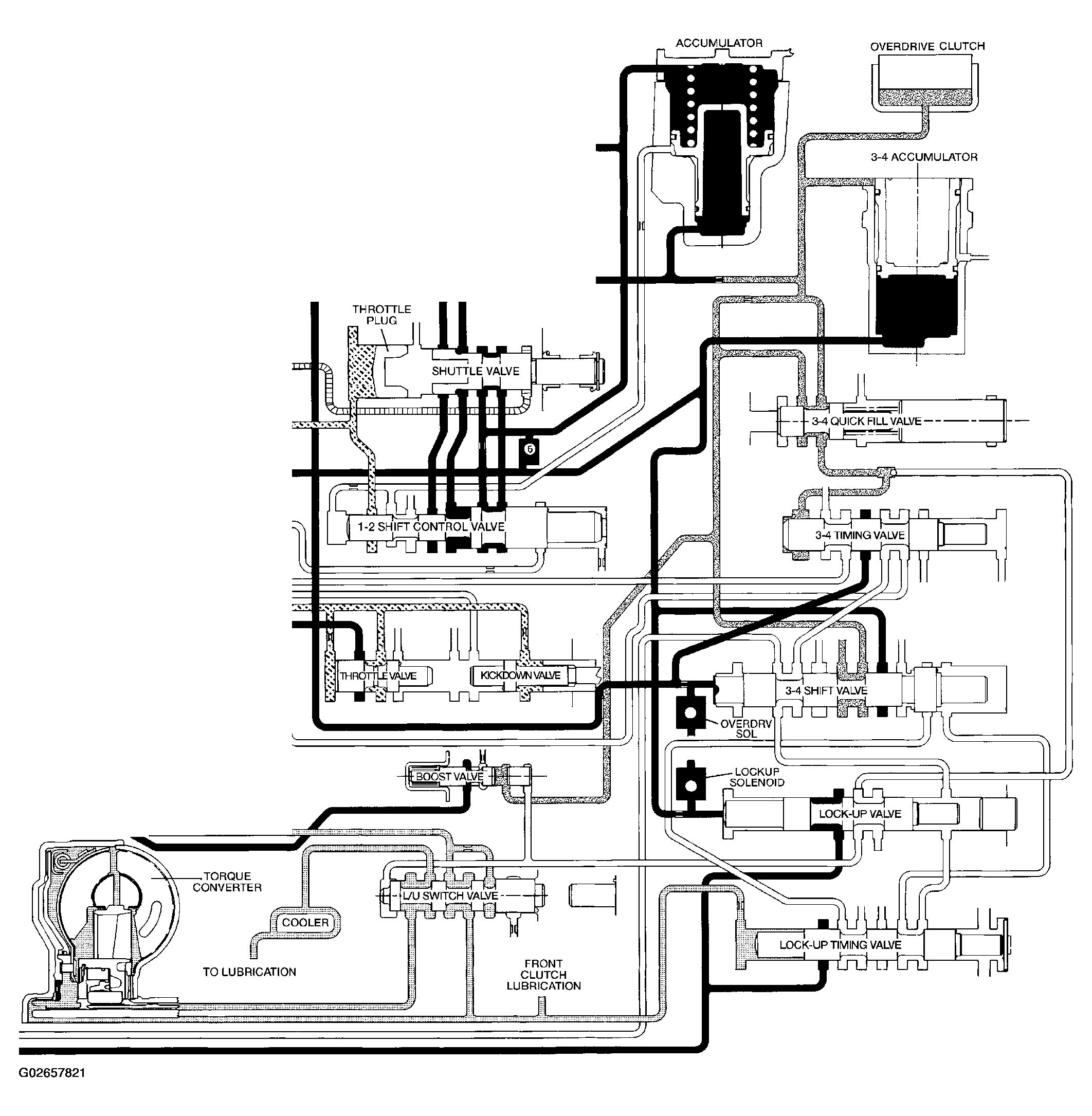

Fig 1: Switch Valve Diagram - Torque Converter Unlocked

Courtesy of DAIMLERCHRYSLER CORP.

Once the TCC control valve has moved to the right (Fig 2), line pressure is directed to the tip of the switch valve, forcing the valve to the right. The switch valve now vents oil from the front of the piston in the torque converter, and supplies line pressure to the (rear) apply side of the torque converter piston. This pressure differential causes the piston to apply against the friction material, cutting off any further flow of line pressure oil. After the switch valve is shuttled right allowing line pressure to engage the TCC, torque converter pressure is directed past the switch valve into the transmission cooler and lubrication circuits.

Fig 2: Switch Valve Diagram - Torque Converter Locked

Courtesy of DAIMLERCHRYSLER CORP.
