Electronic Governor: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hoist and support vehicle on safety stands.
  2. Remove transmission fluid pan and filter.
  3. Disengage wire connectors from pressure sensor and solenoid (Fig 1).

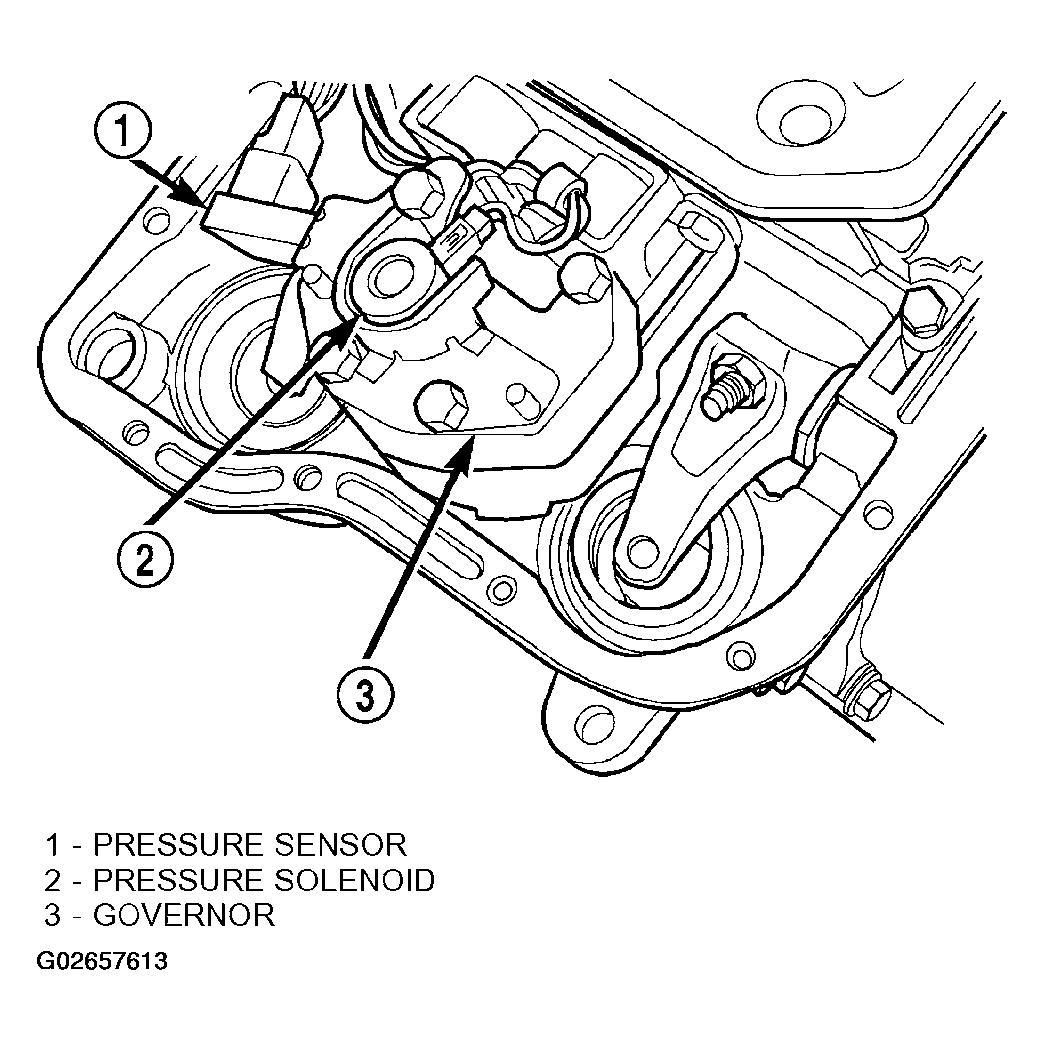

    Fig 1: Identifying Governor Solenoid And Pressure Sensor
    G02657613Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove screws holding pressure solenoid retainer to governor body.
  5. Separate solenoid retainer from governor (Fig 2).
    Fig 2: Separating Solenoid Retainer From Governor
    G02657614Courtesy of DAIMLERCHRYSLER CORP.
  6. Pull solenoid from governor body (Fig 3).
    Fig 3: Pulling Solenoid From Governor Body
    G02657615Courtesy of DAIMLERCHRYSLER CORP.
  7. Pull pressure sensor from governor body.
  8. Remove bolts holding governor body to valve body.
  9. Separate governor body from valve body (Fig 4).
    Fig 4: Separating Governor Body From Valve Body
    G02657616Courtesy of DAIMLERCHRYSLER CORP.
  10. Remove governor body gasket.
