Diagnosis And Testing-Diagnosis Charts

The diagnosis charts provide additional reference when diagnosing a transmission fault. The charts provide general information on a variety of transmission, overdrive unit and converter clutch fault conditions.

The hydraulic flow charts in the Schematics and Diagrams section of this group, outline fluid flow and hydraulic circuitry. Circuit operation is provided for PARK, NEUTRAL, FIRST, SECOND, THIRD, FOURTH, MANUAL FIRST, MANUAL SECOND, and REVERSE gear ranges. Normal working pressures are also supplied for each of the gear ranges.

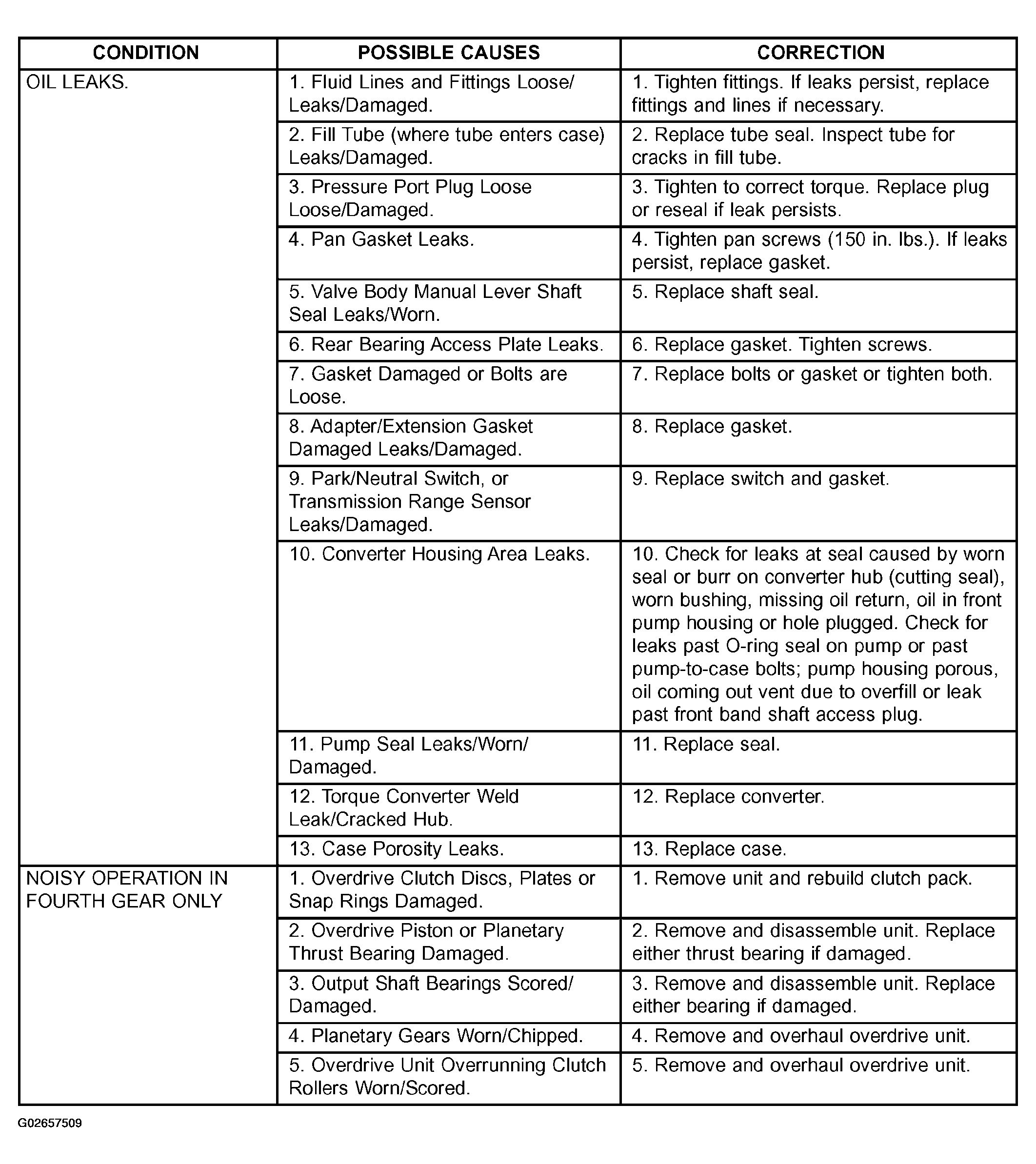

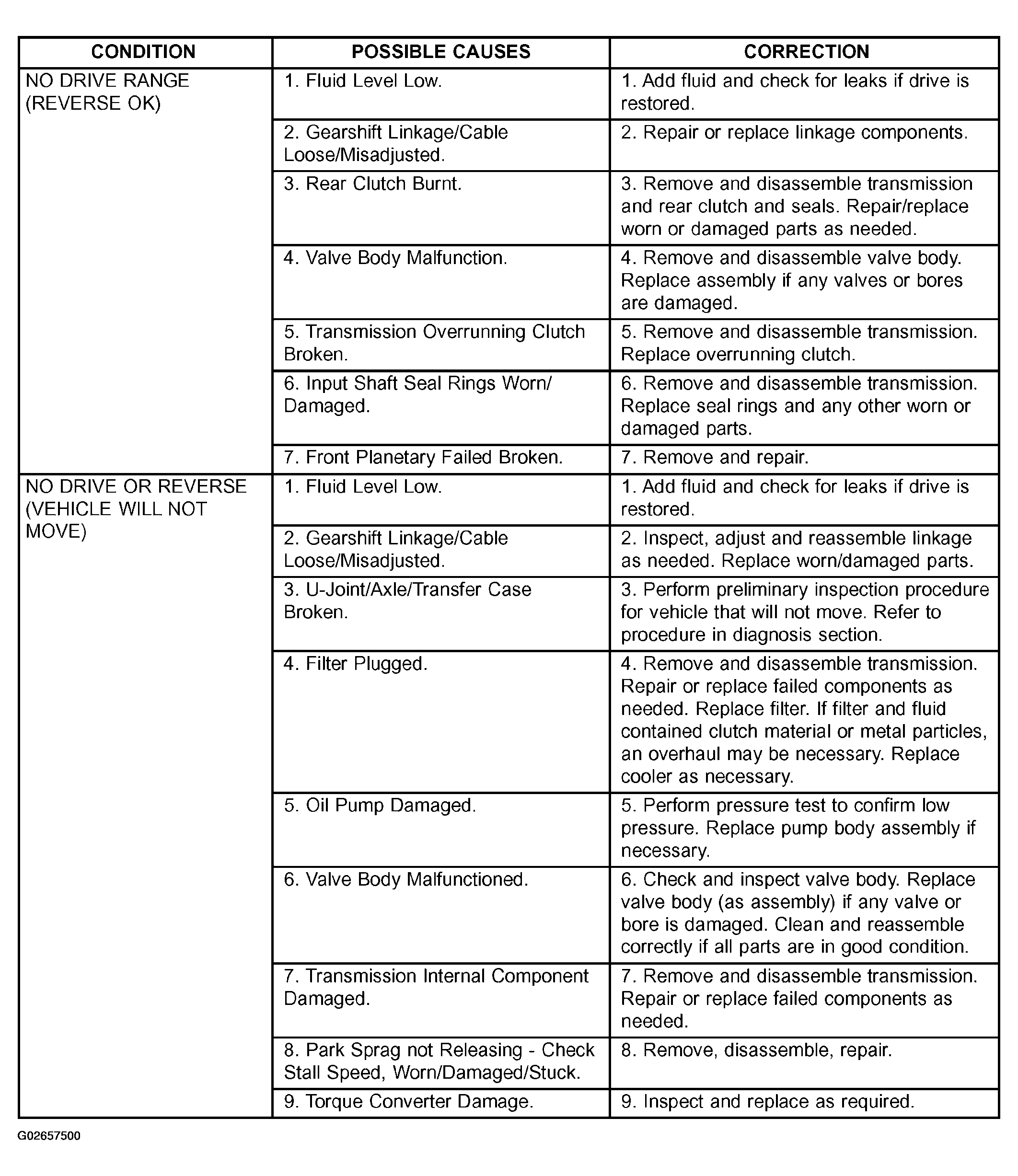

Fig 1: Diagnosis Charts (1 Of 11)

Courtesy of DAIMLERCHRYSLER CORP.

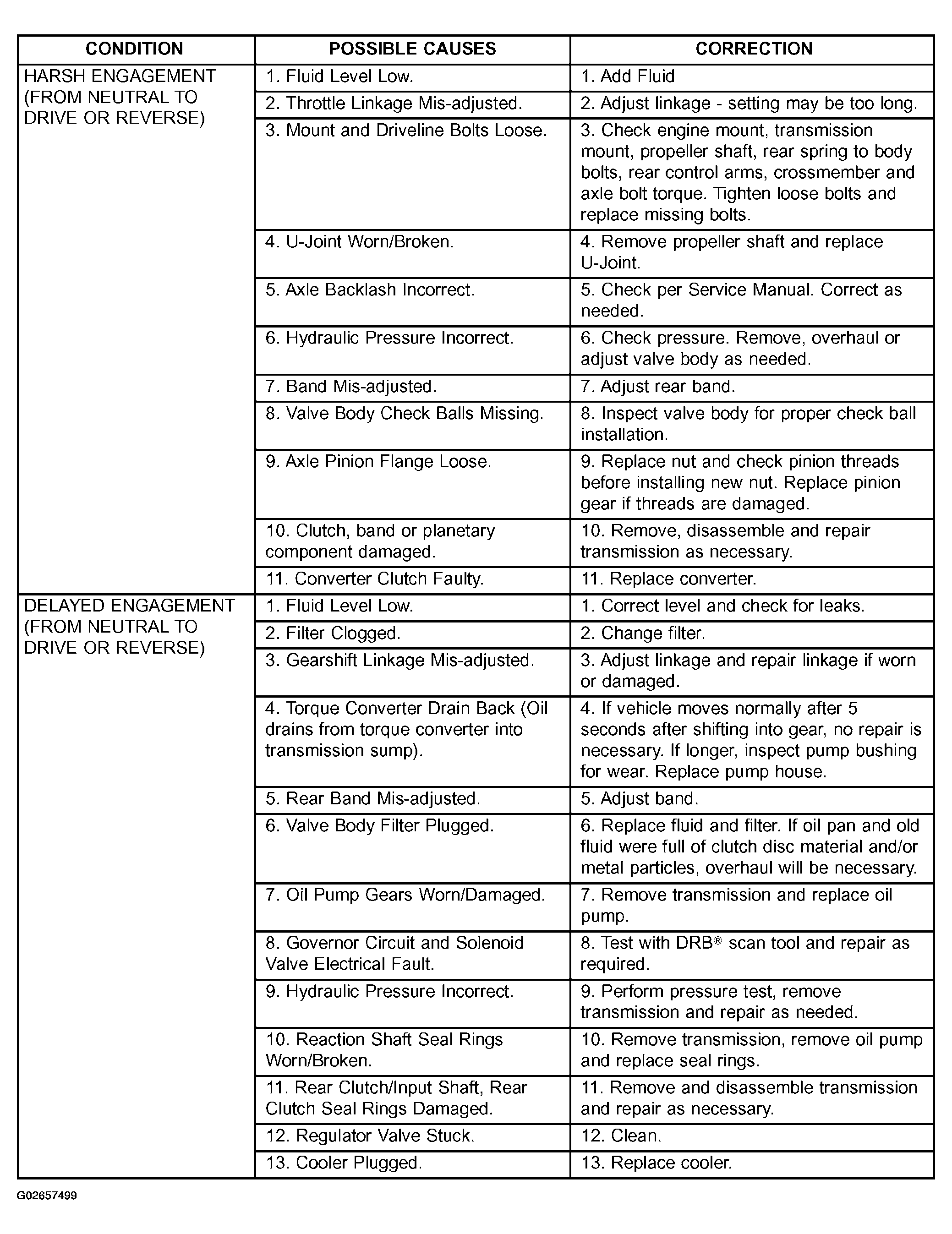

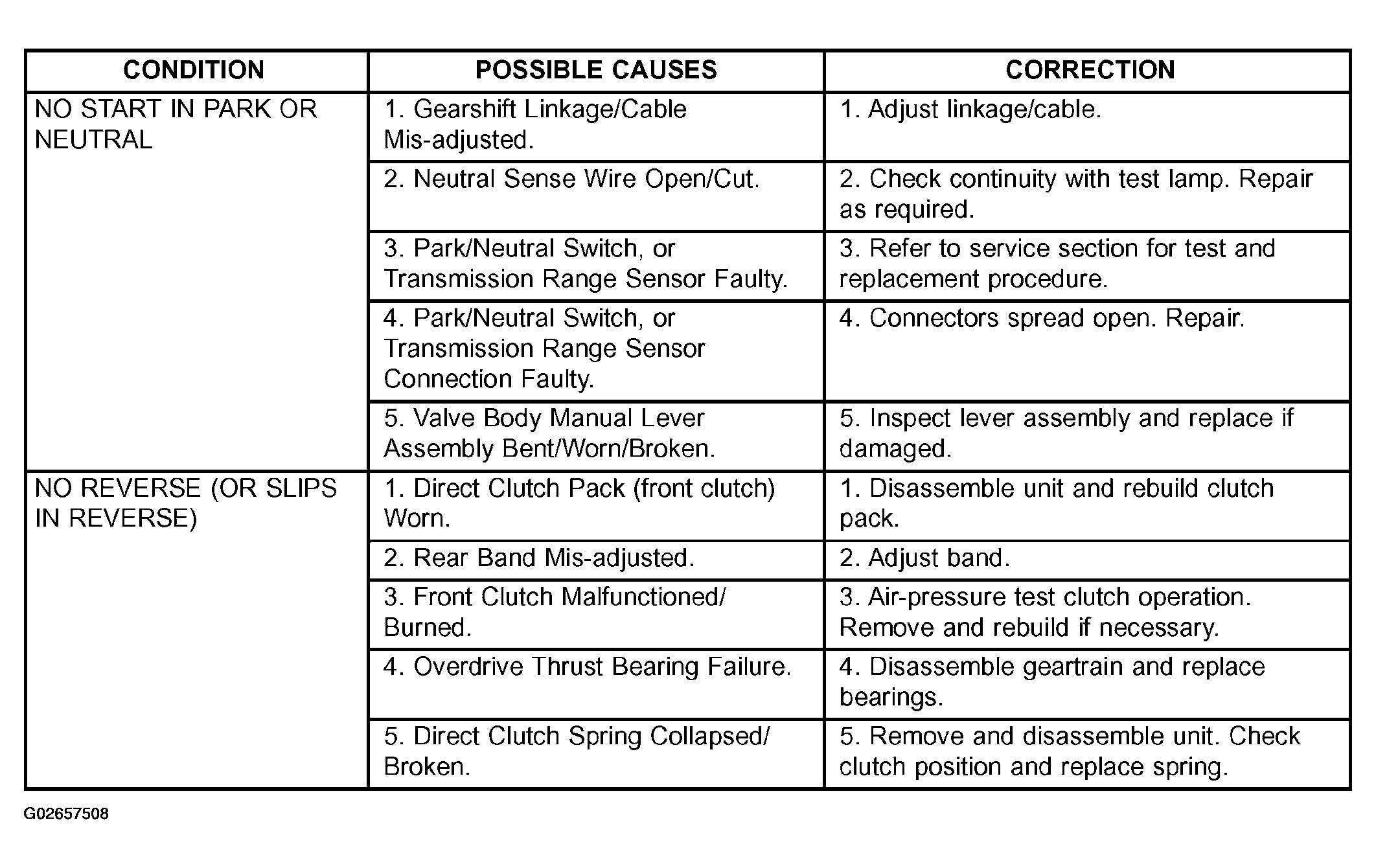

Fig 2: Diagnosis Charts (2 Of 11)

Courtesy of DAIMLERCHRYSLER CORP.

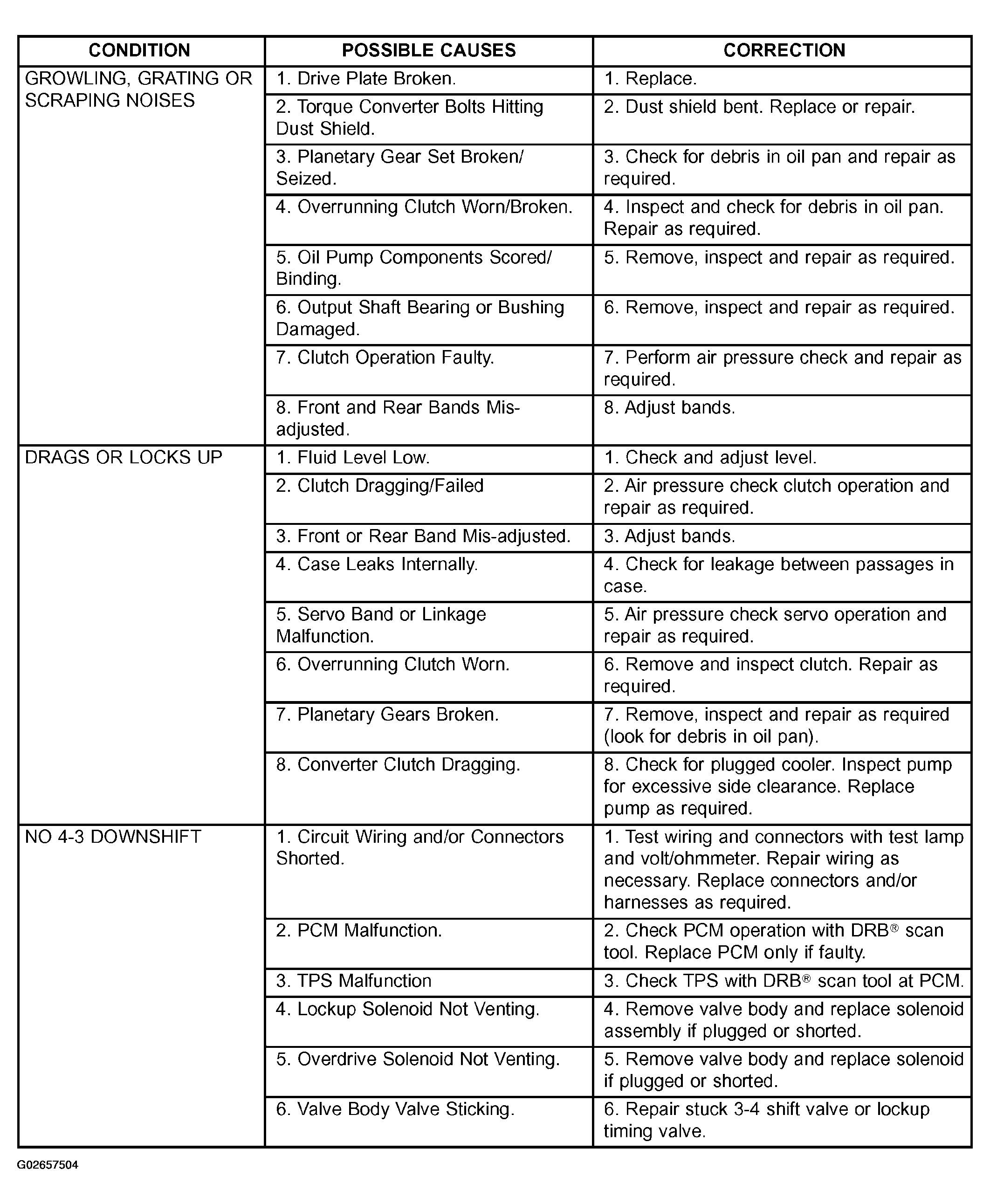

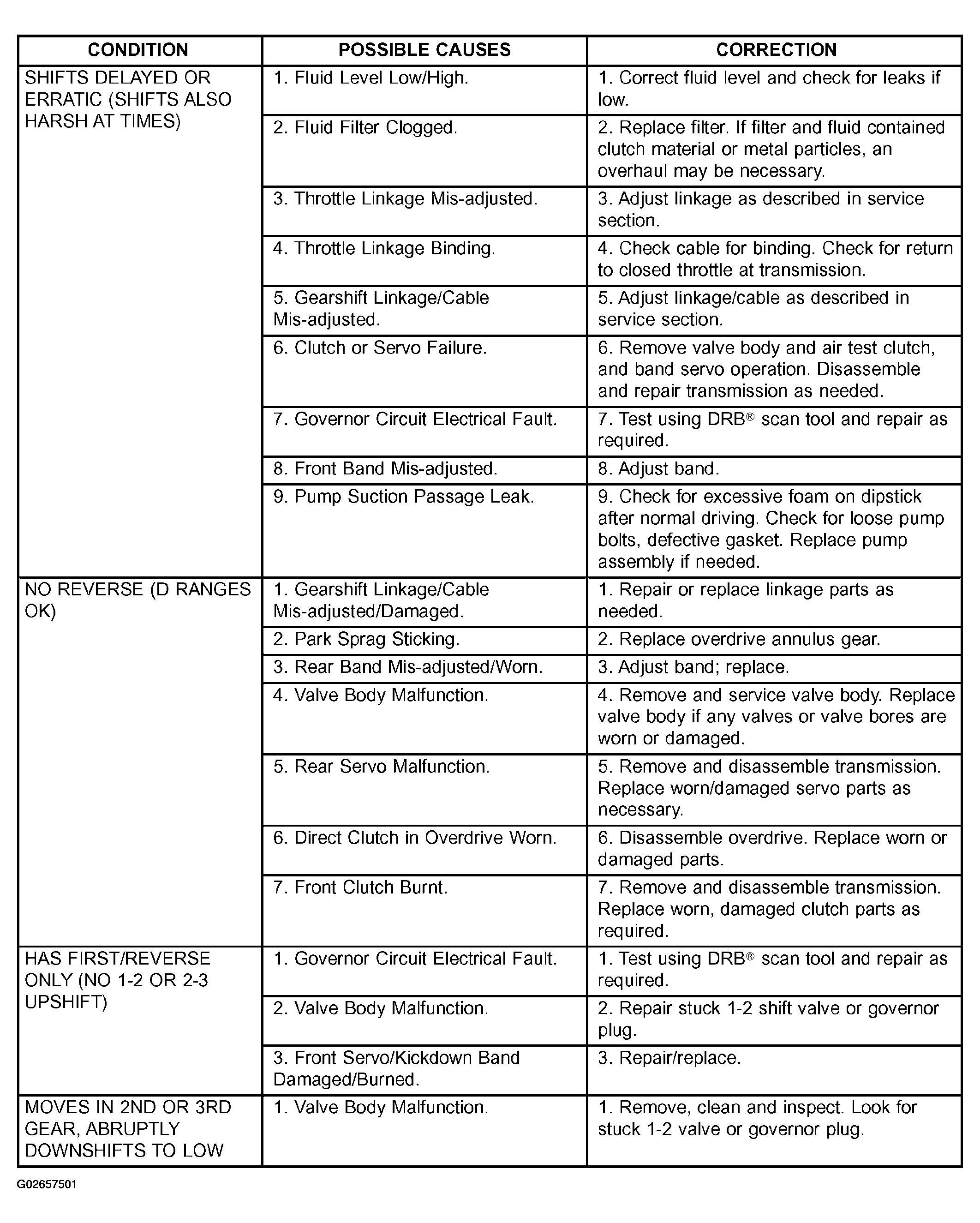

Fig 3: Diagnosis Charts (3 Of 11)

Courtesy of DAIMLERCHRYSLER CORP.

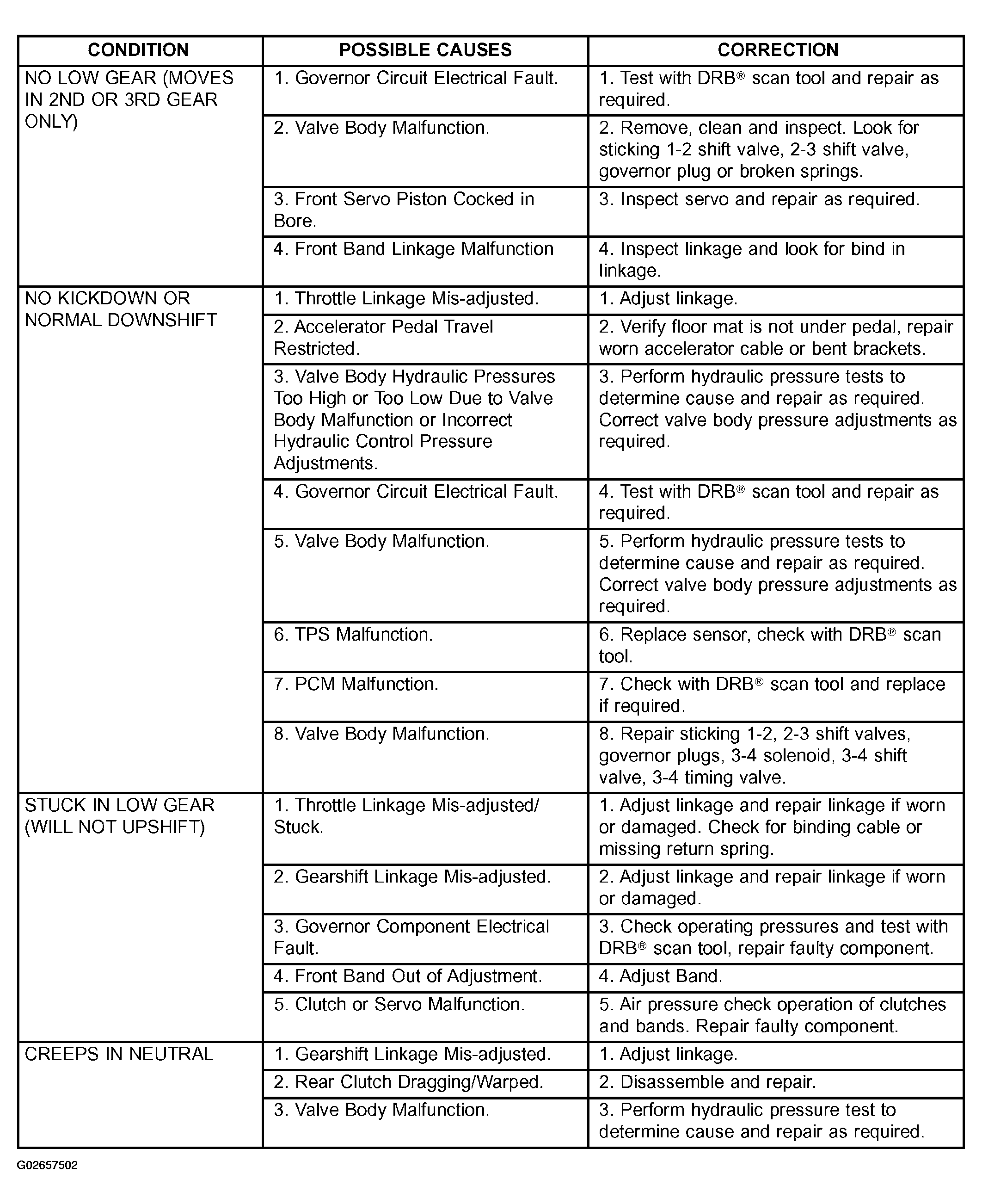

Fig 4: Diagnosis Charts (4 Of 11)

Courtesy of DAIMLERCHRYSLER CORP.

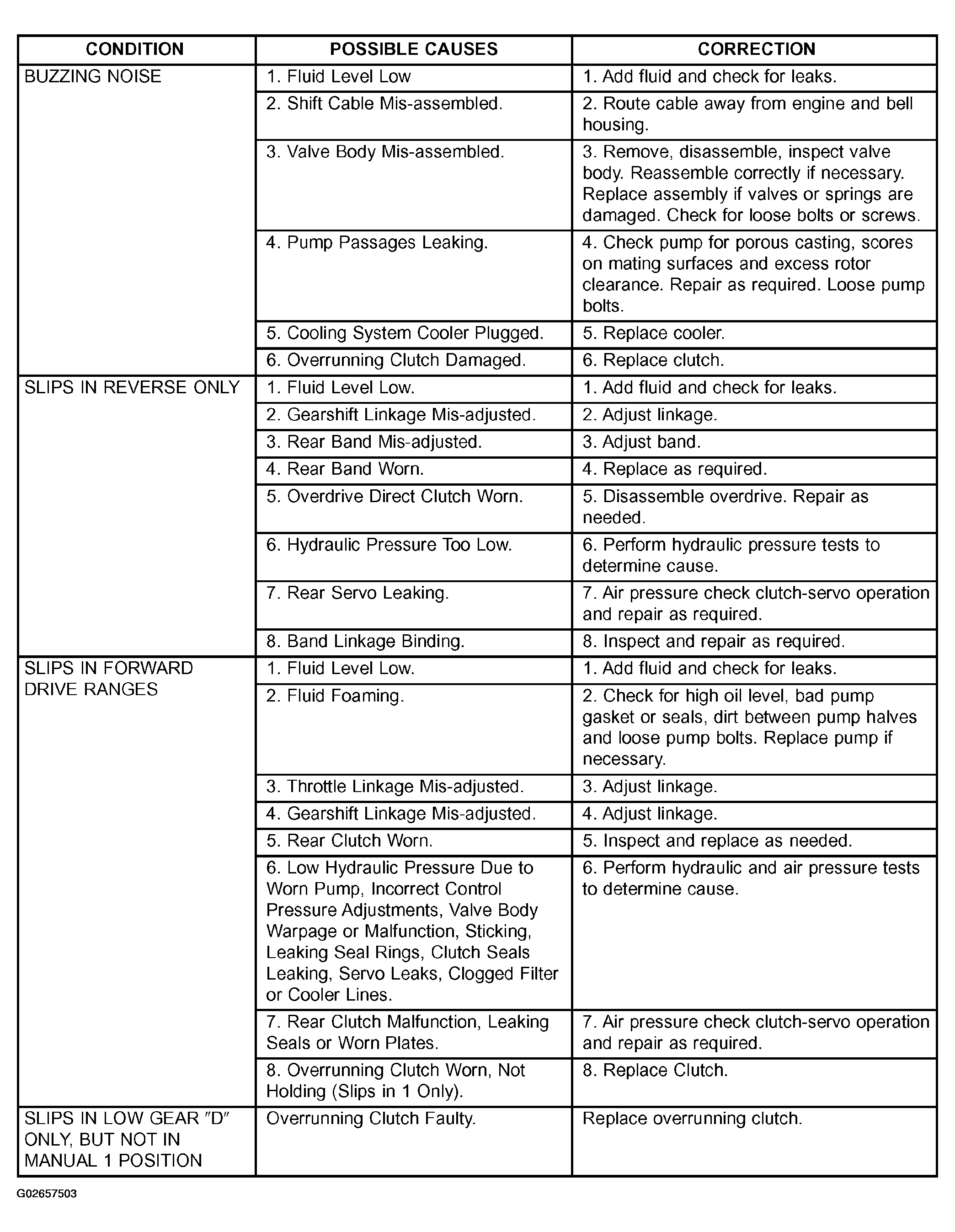

Fig 5: Diagnosis Charts (5 Of 11)

Courtesy of DAIMLERCHRYSLER CORP.

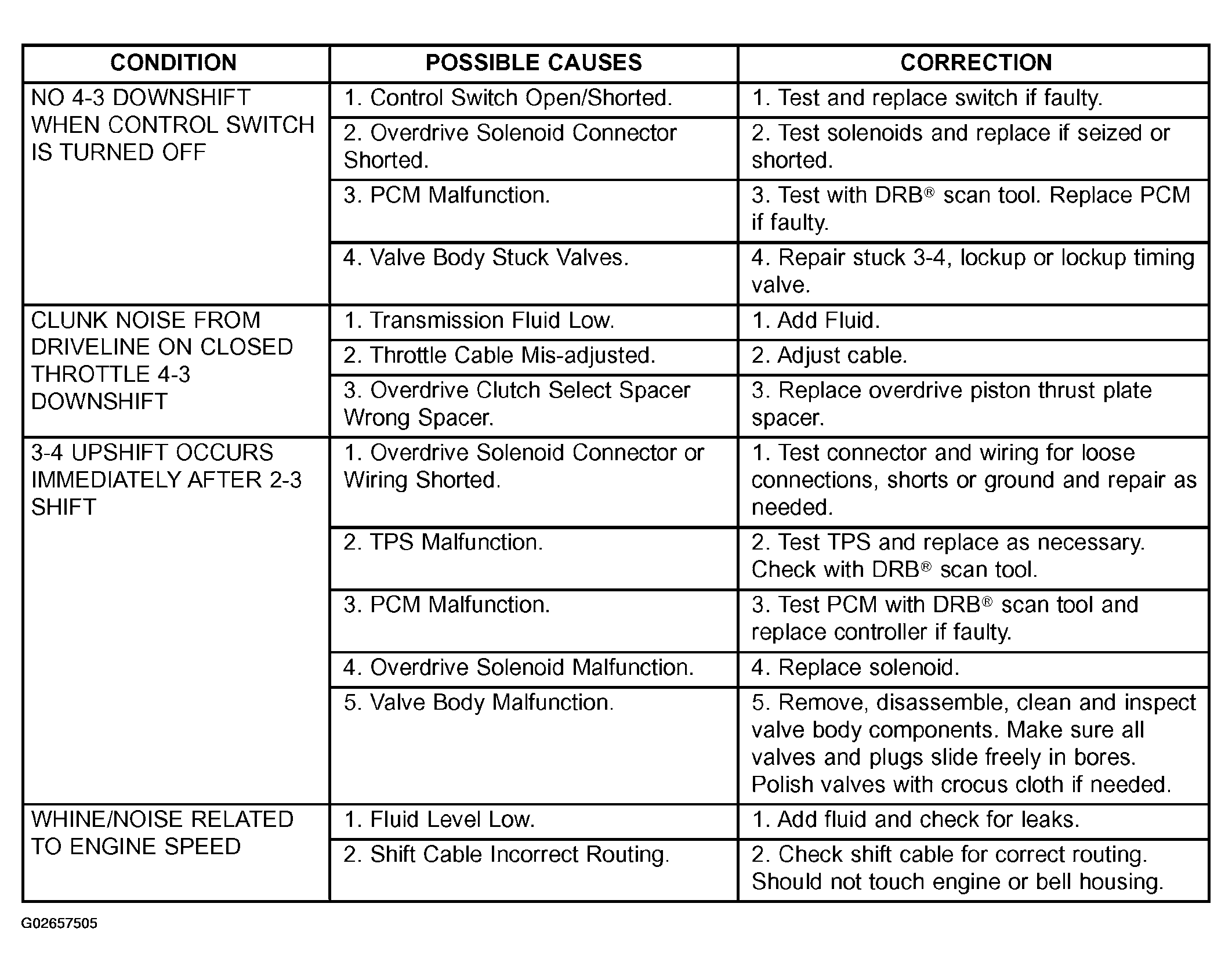

Fig 6: Diagnosis Charts (6 Of 11)

Courtesy of DAIMLERCHRYSLER CORP.

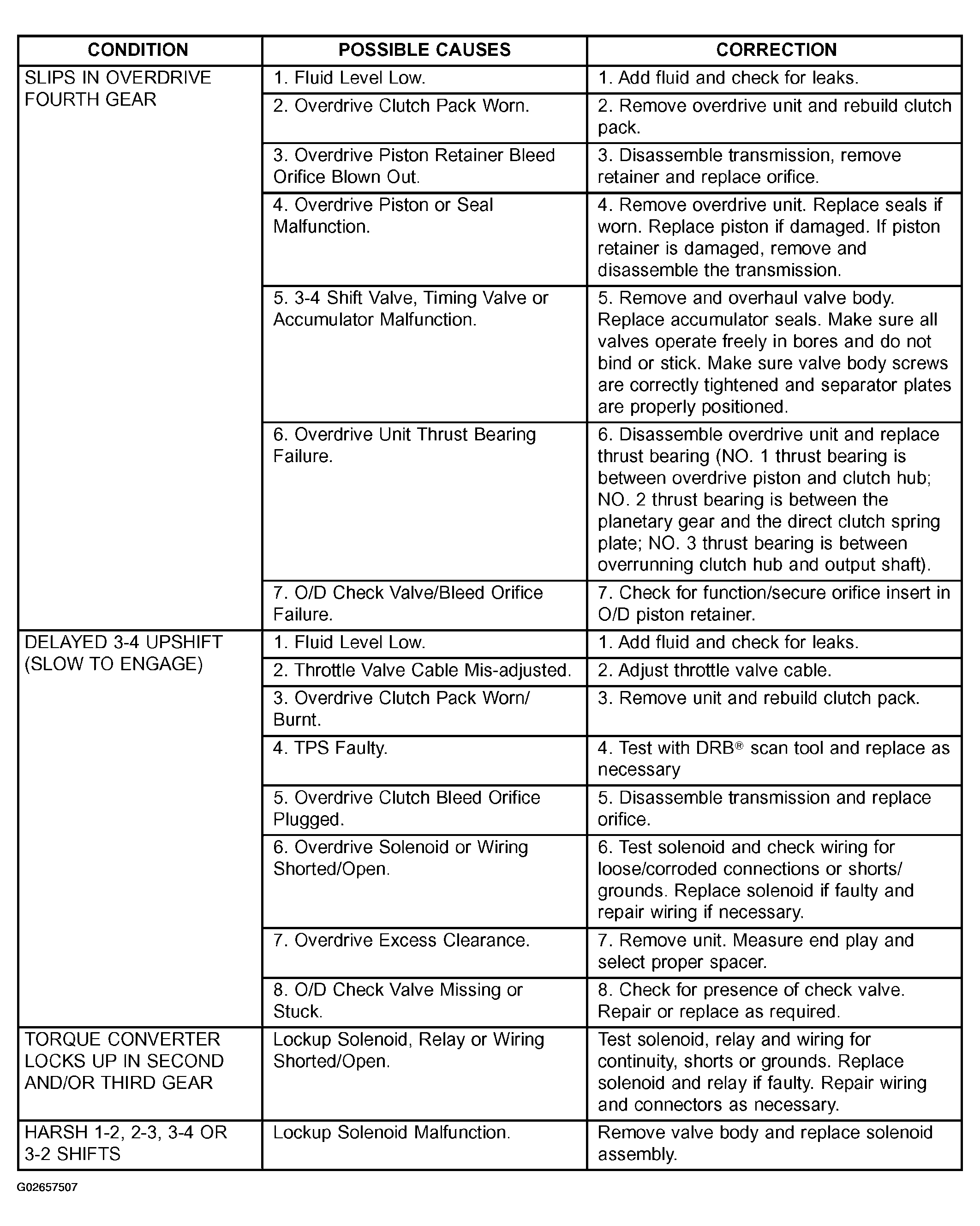

Fig 7: Diagnosis Charts (7 Of 11)

Courtesy of DAIMLERCHRYSLER CORP.

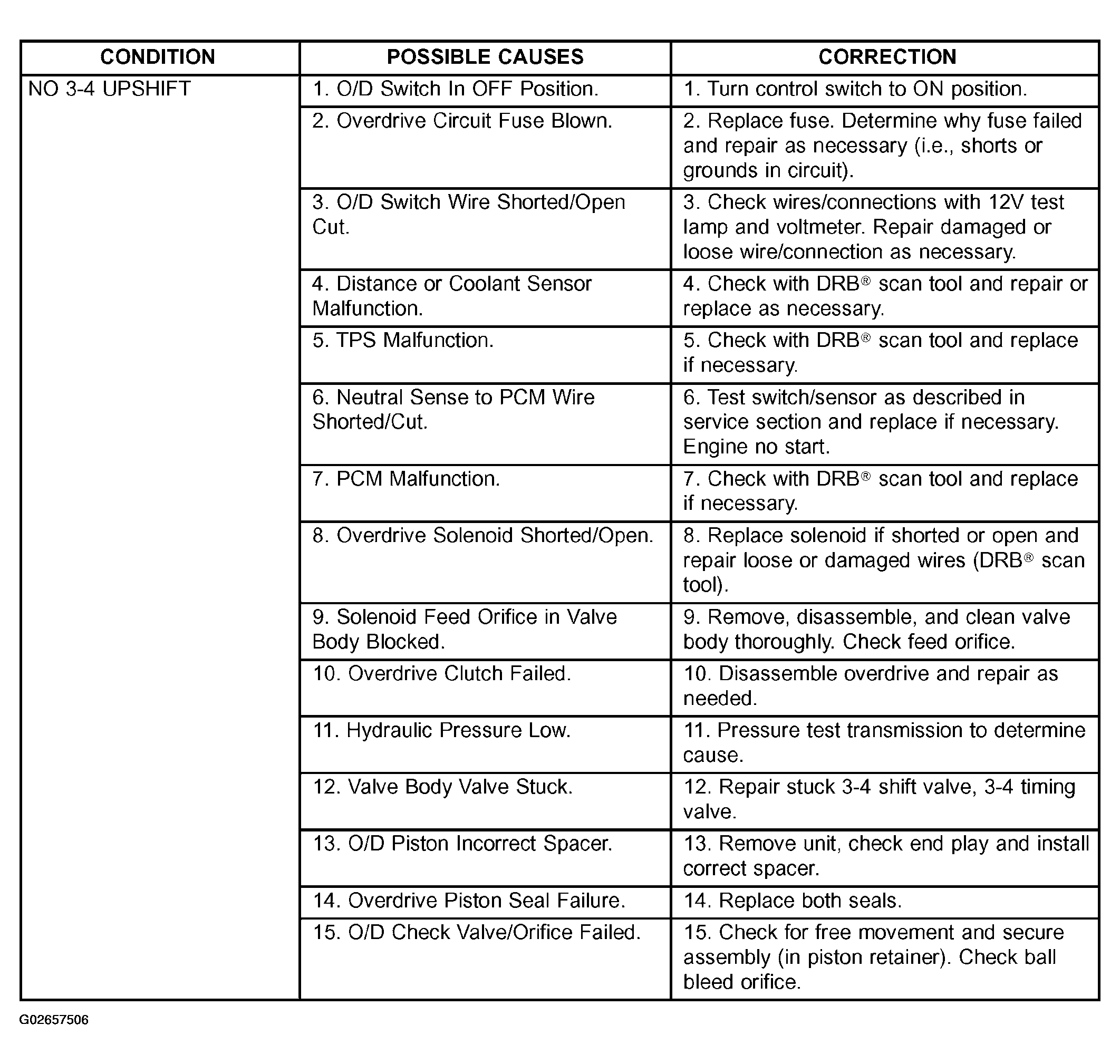

Fig 8: Diagnosis Charts (8 Of 11)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Diagnosis Charts (9 Of 11)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Diagnosis Charts (10 Of 11)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Diagnosis Charts (11 Of 11)

Courtesy of DAIMLERCHRYSLER CORP.
