Section 58 (Power Steering Pump): Pump: Operation
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
Hydraulic pressure is provided for the power steering gear by the belt driven power steering pump (Fig 1

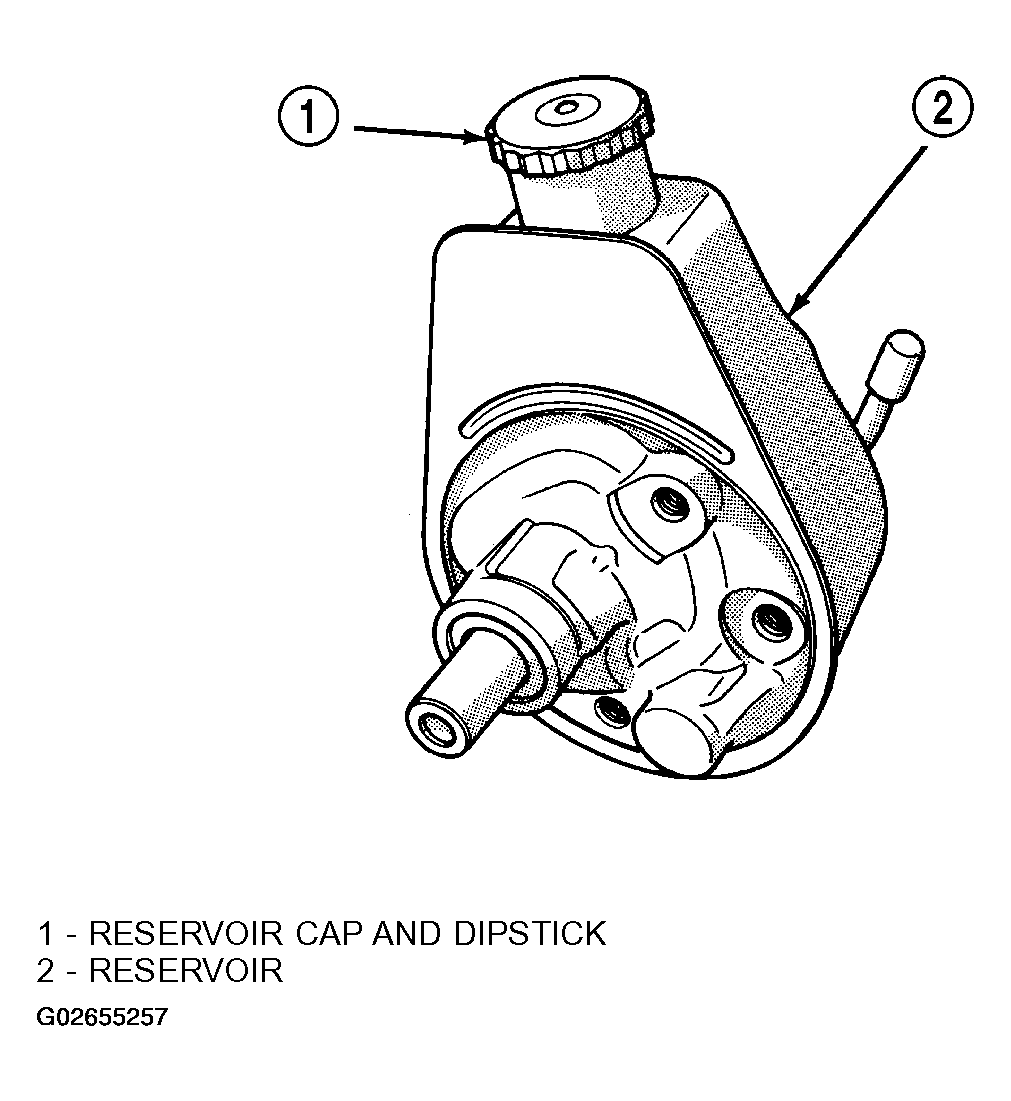

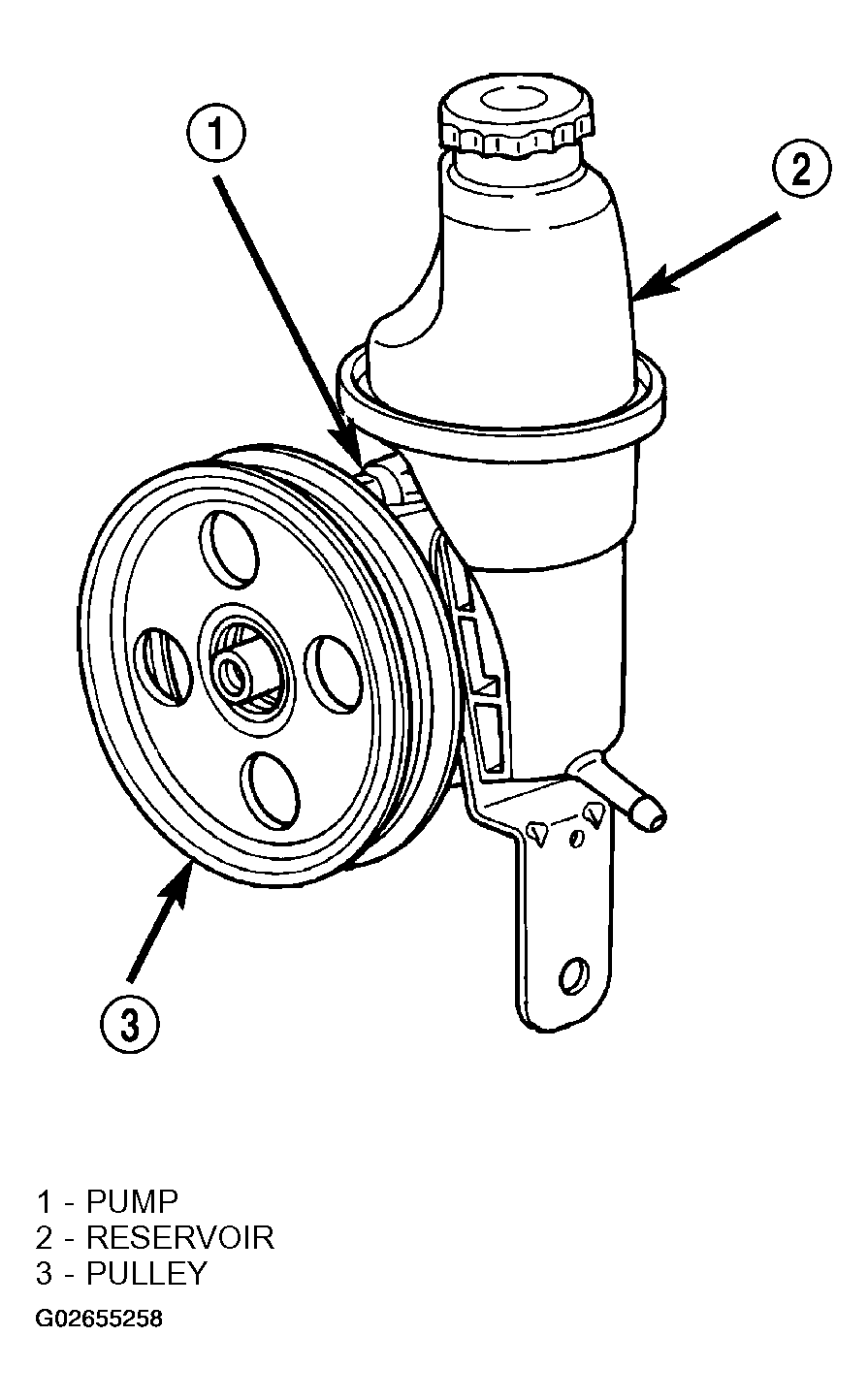

) and (Fig 2
). The power steering pumps are constant flow rate and displacement, vane-type pumps.
