Upper Steering Coupling: Installation
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

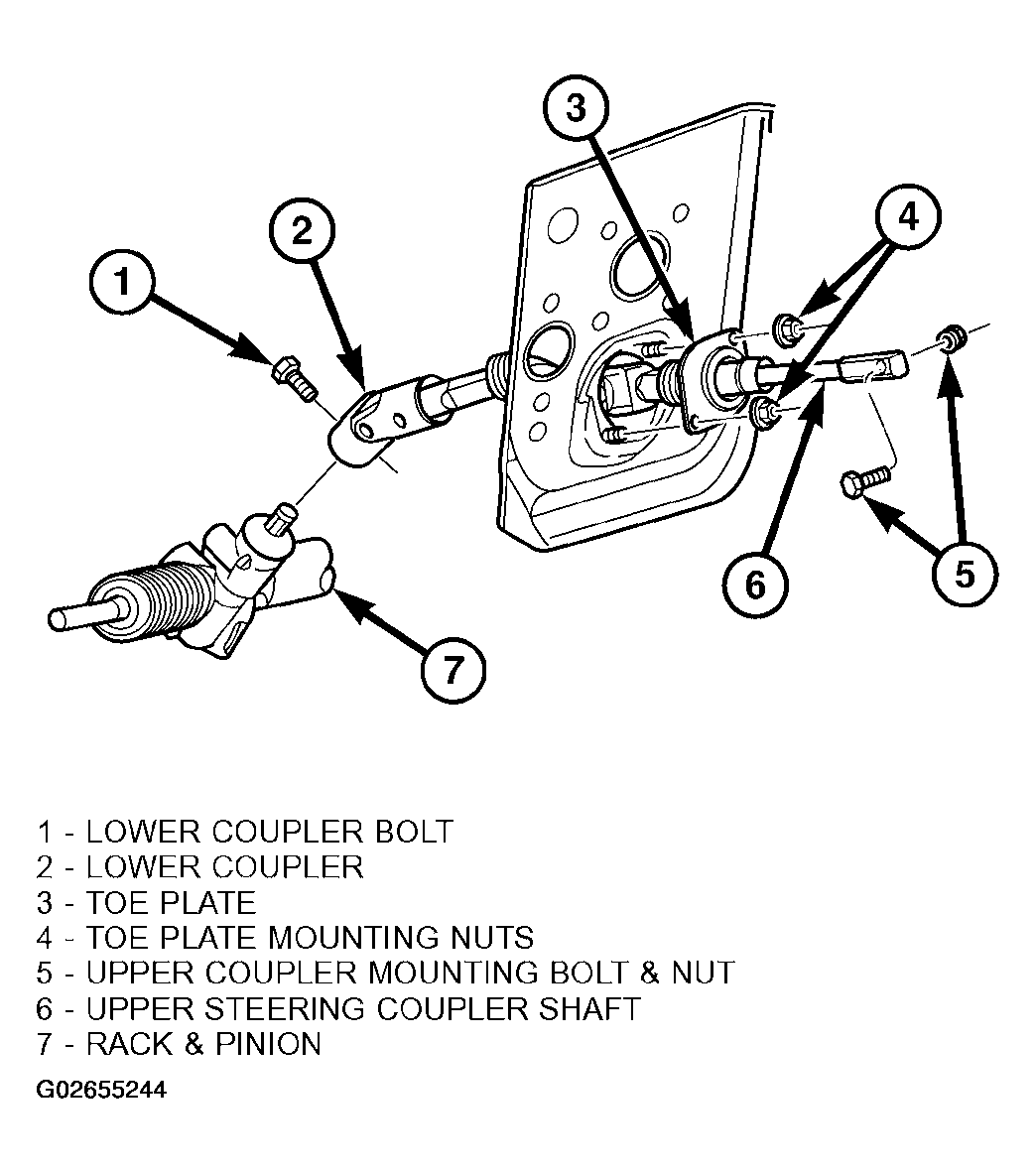

- Install the upper steering coupling shaft to the vehicle (Figure
).NOTE: A new steering coupling shaft pinch bolt for the upper and lower shafts must be used.
- Install the steering coupler shaft to the column (Figure ).
- Install the upper pinch bolt use new bolt and tighten to 57 N.m (42 ft. lbs).
- Install the shaft to the lower coupler (Figure ).
- Install the lower pinch bolt use new bolt and tighten to 57 N.m (42 ft. lbs).
- Install the toe plate (Figure ) nuts and tighten to 12 N.m (105 in. lbs)
- Unlock the steering wheel.
- Reconnect the negative battery cable.
