Gear Shift Lever: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knee blocker. (Refer to STEERING COLUMN OPENING COVER ).
  2. Loosen the steering column bolts enough to lower the column without removing.
  3. Remove the upper and lower shrouds.
  4. Disconnect over drive switch wiring.
  5. Disconnect the shift cable from the pin and unsnap the cable adjusting clip.
  6. Remove the screws retaining the gear shift lever. (Fig 1 )

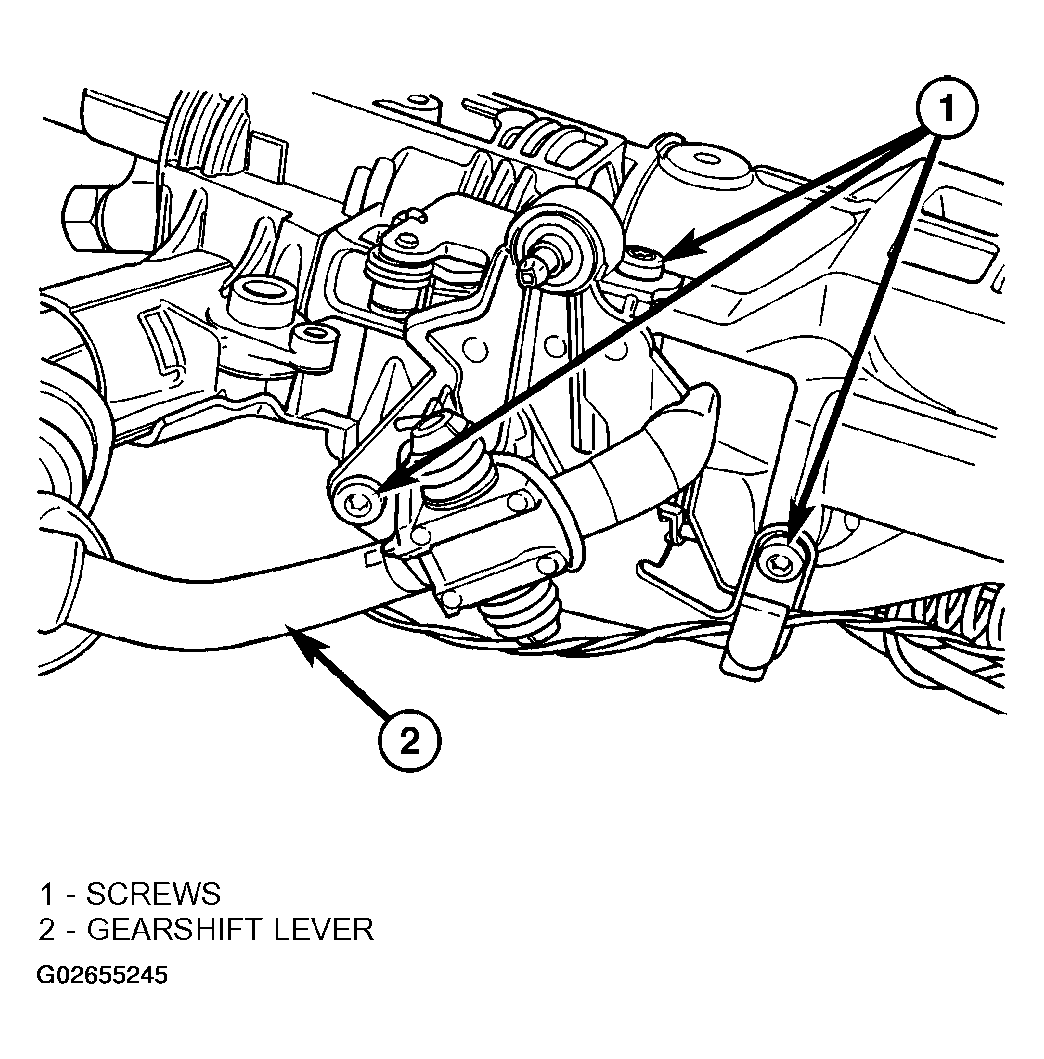

    Fig 1: Removing Gear Shift Lever From Steering Column Assembly
    G02655245Courtesy of DAIMLERCHRYSLER CORP.

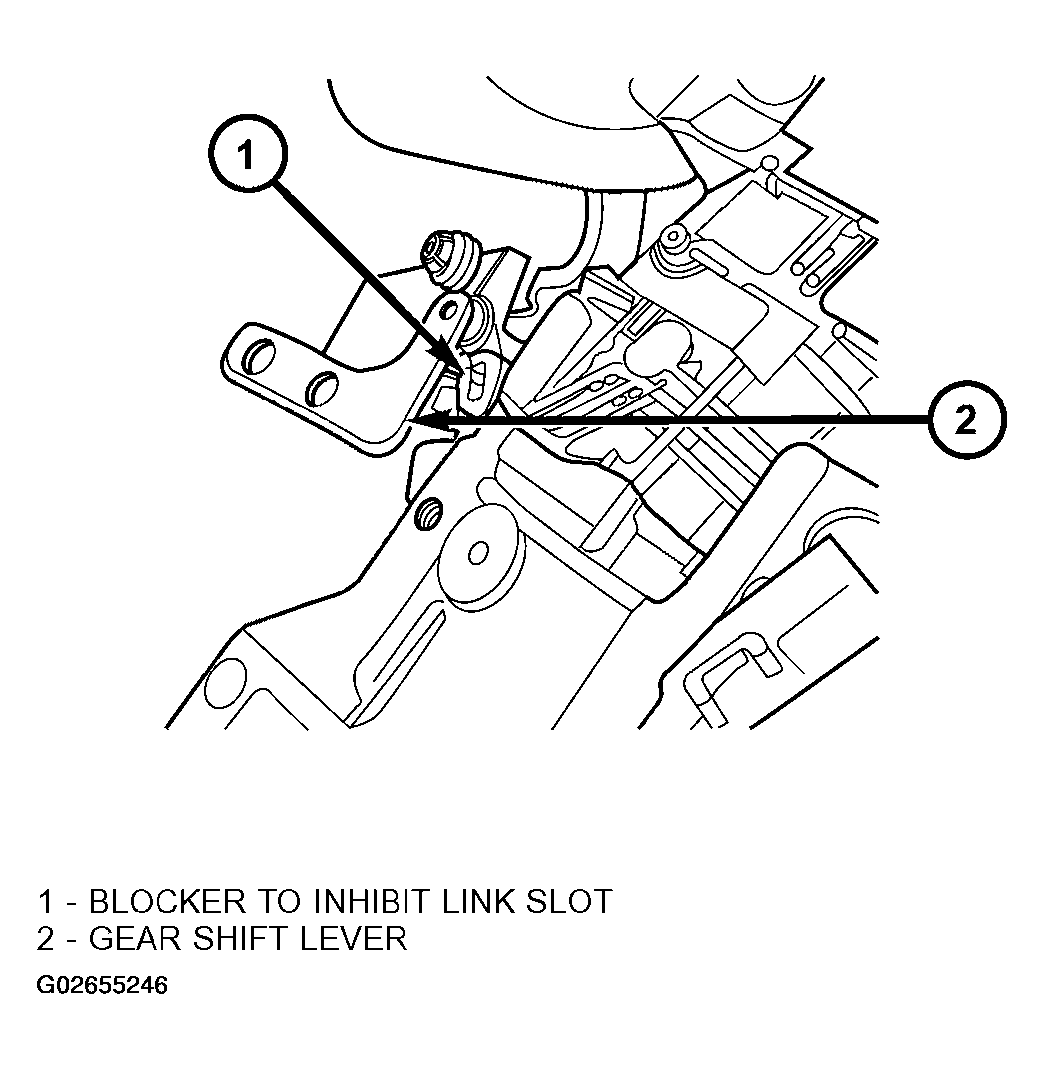

  7. Remove the blocker pin from the inhibit link slot (Figure ).
  8. Remove the gear shift lever from the steering column assembly.
