Valance Panel: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove nuts attaching valance panel to bracket (Fig 1 ).

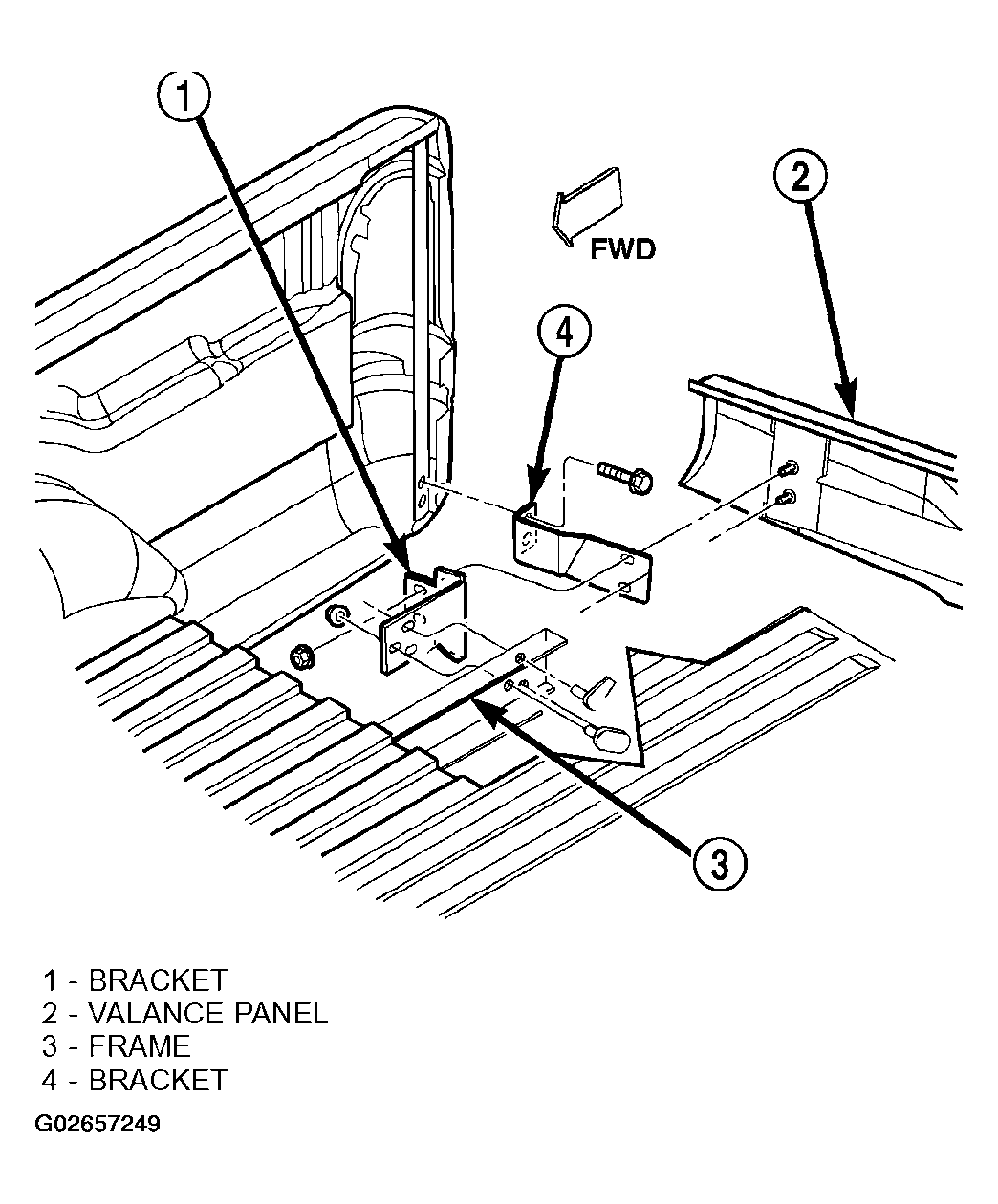

    Fig 1: Removing Nuts Attaching Valance Panel To Bracket
    G02657249Courtesy of DAIMLERCHRYSLER CORP.
  2. Disengage license plate lamp harness connector.
  3. Separate valance panel from cargo box.
