Trailer Hitch: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support trailer hitch on a suitable lifting device.
  2. Remove fasteners attaching trailer wiring connector to trailer hitch, if equipped.
  3. Remove bolts attaching trailer hitch to frame rails (Fig 1 ).

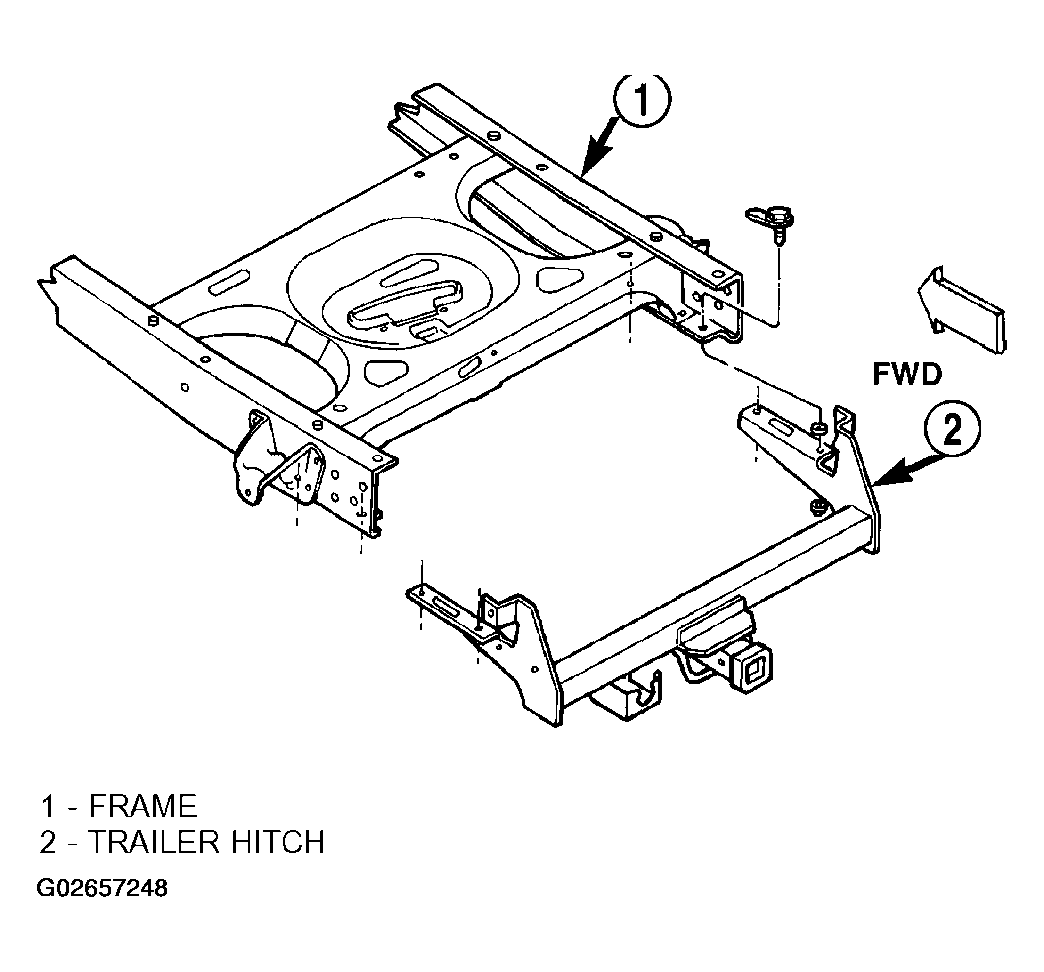

    Fig 1: Removing Bolts Attaching Trailer Hitch To Frame Rails
    G02657248Courtesy of DAIMLERCHRYSLER CORP.
  4. Separate trailer hitch from vehicle.
